Control Assembly: Testing and Inspection

Control Panel Assembly




ROTARY TYPE




ROTARY AND PUSH BUTTON TYPE


Air Conditioning Switch

1. Check for continuity between terminals No.21 and No.22.

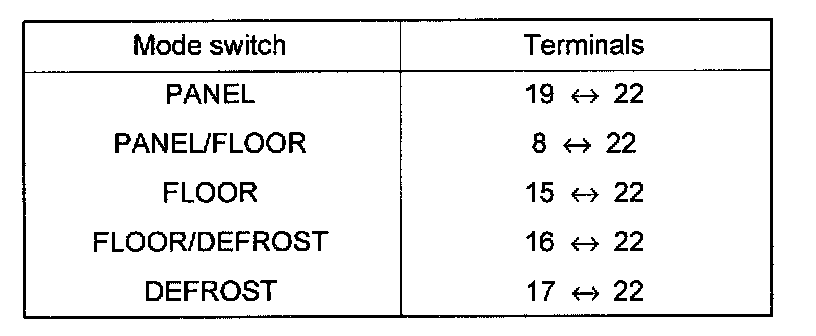

Mode Control Switch








If continuity is not as specified, replace the control panel.
