Electrical Diagrams

Ignition System:

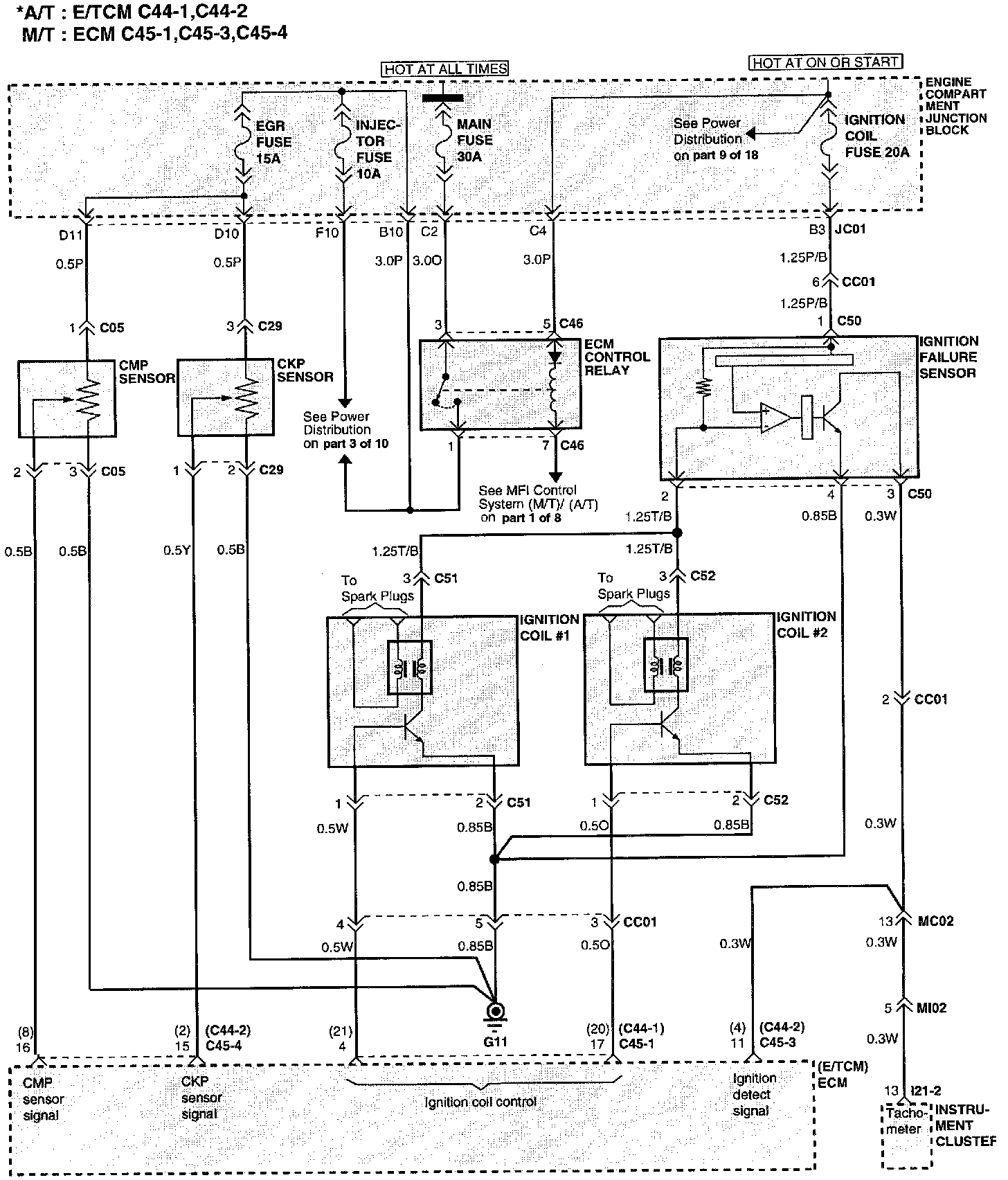

Electrical Diagram

Connector Configurations Are Found At Vehicle / Diagrams / Connector Views.

Connector And Component Locations Are Found At Ignition System / Locations.
