Low-Reverse Brake End Play

LOW-REVERSE BRAKE END PLAY ADJUSTMENT

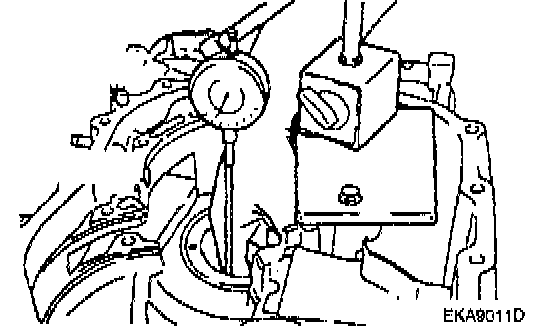

Reverse the transmission and install the dial gauge. Move the special tool up and down to measure the end play.
Standard value: 1.35-1.81 mm





Reference

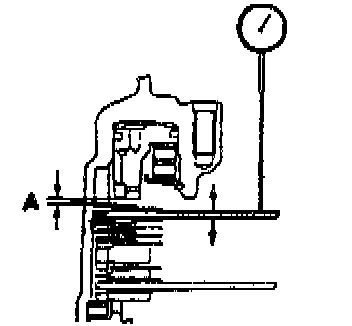

Select a pressure plate which thickness is within the following value. [A (moving amount) + thickness of the special tool - 1.81] to [A (moving amount) + thickness of the special tool - 1.35]
