Automatic Transmission/Transaxle: Application and ID

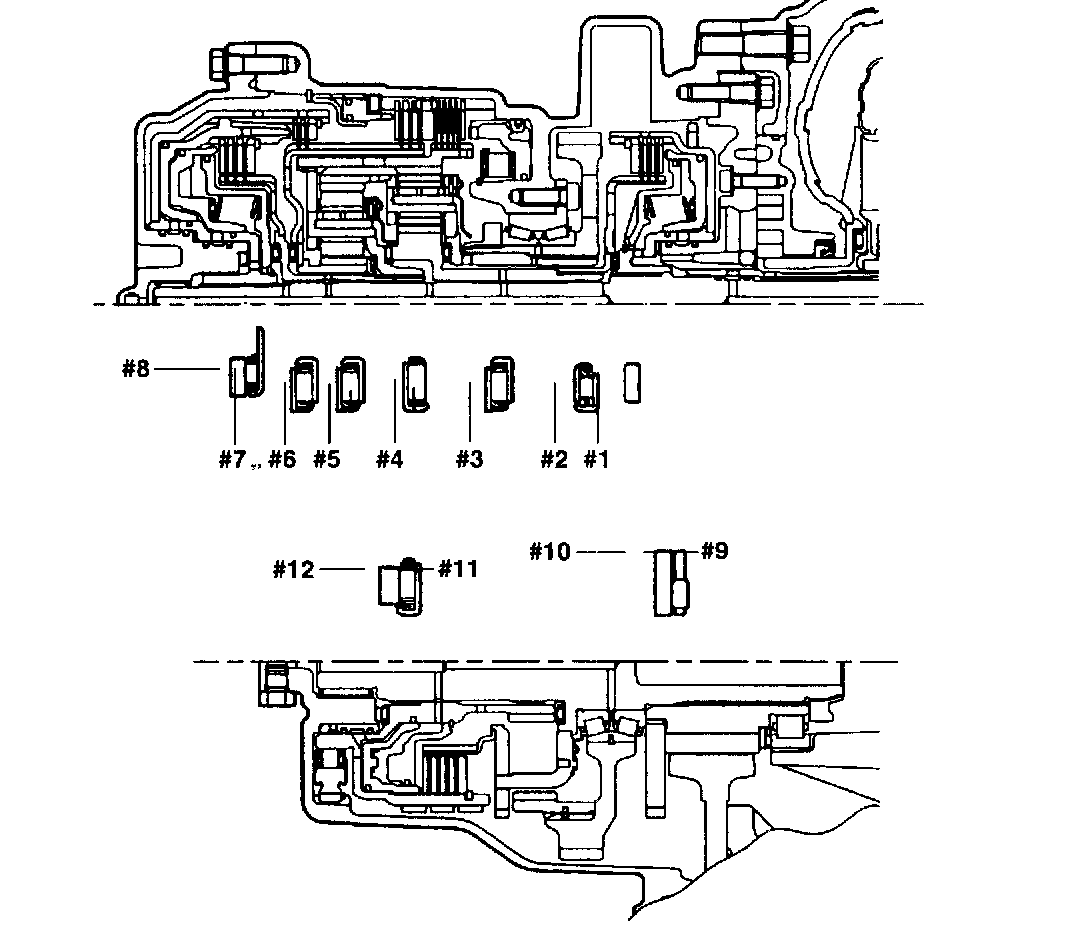

SNAP RING AND SPACER FOR ADJUSTMENT
Part 1 of 3
Part 2 of 3
Part 3 of 3

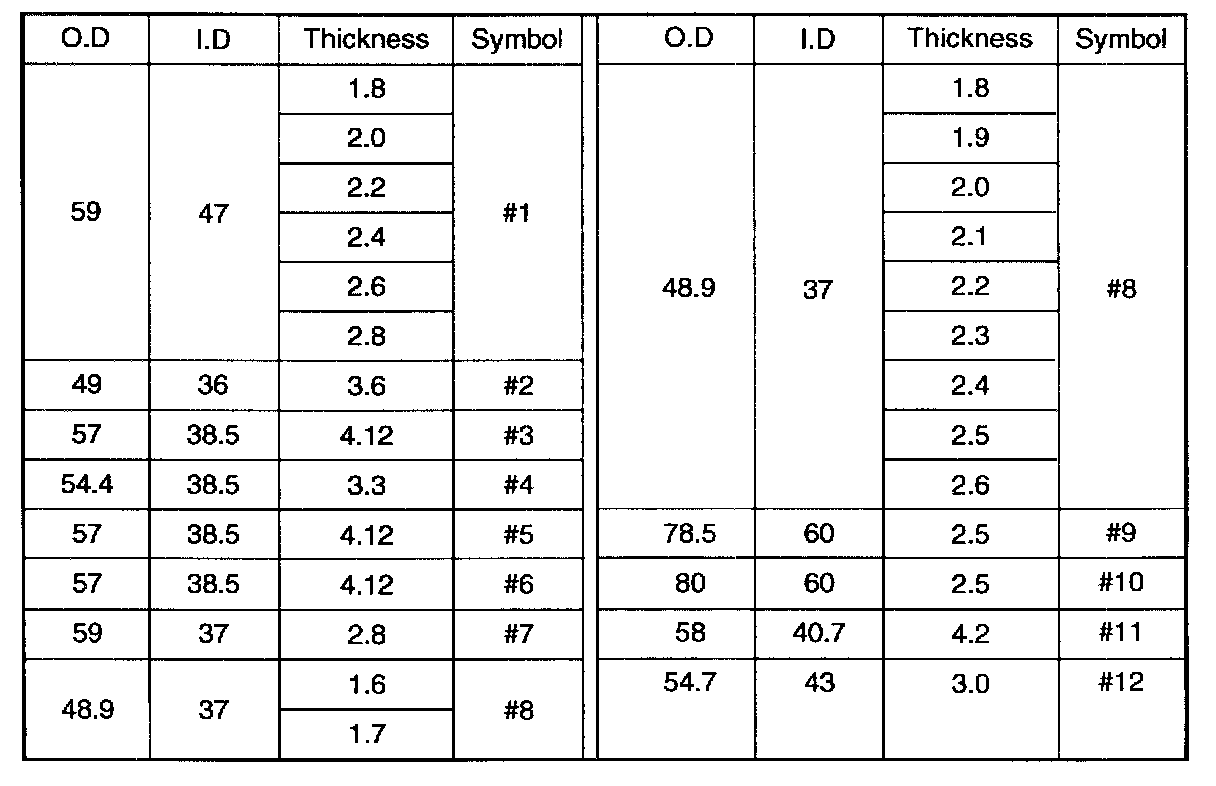

IDENTIFICATION OF THRUST BEARINGS, THRUST RACERS AND THRUST WASHERS
