Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2000
>>
Accent GL Sedan L4-1495cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge
Fuel Gauge

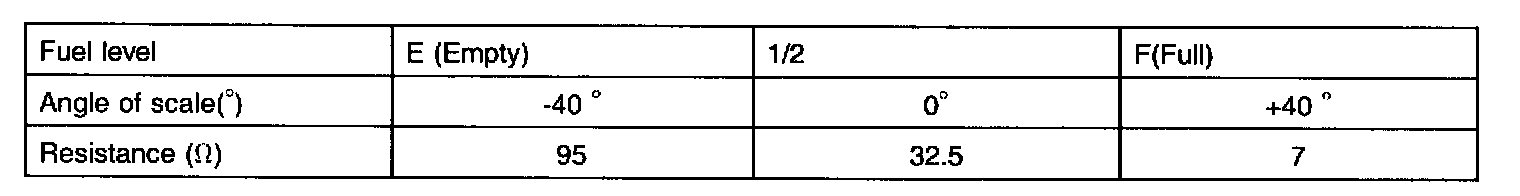

Fuel Gauge - Cross Coil Type (Fixed Pointer Type):
