Antilock Brakes / Traction Control Systems
Part 1 Of 3:
Part 2 Of 3:
ӄO:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
Part 1 Of 2:

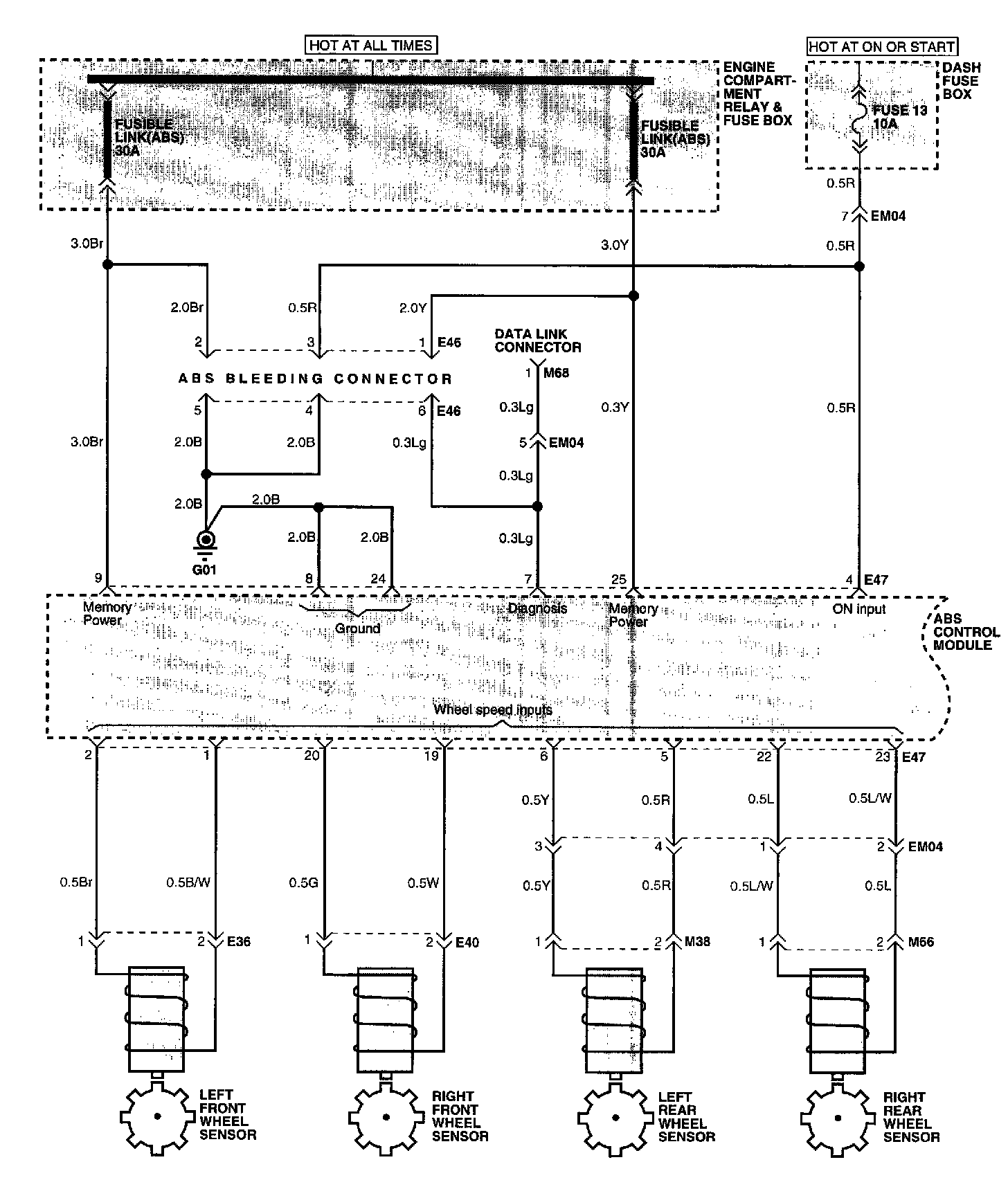

SCHEMATIC DIAGRAM (1)
Part 2 Of 2:

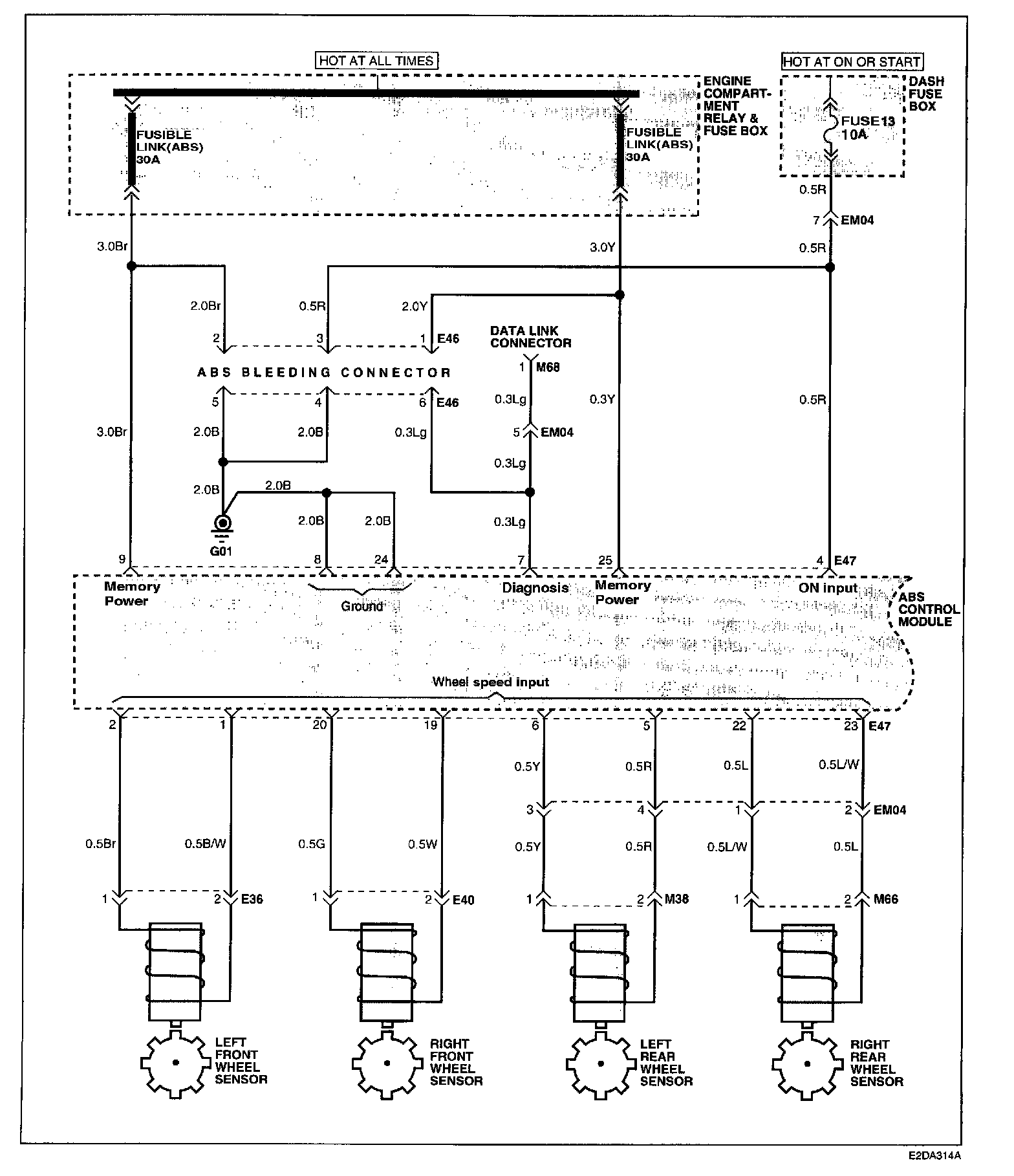

SCHEMATIC DIAGRAM (2)
