System Diagram

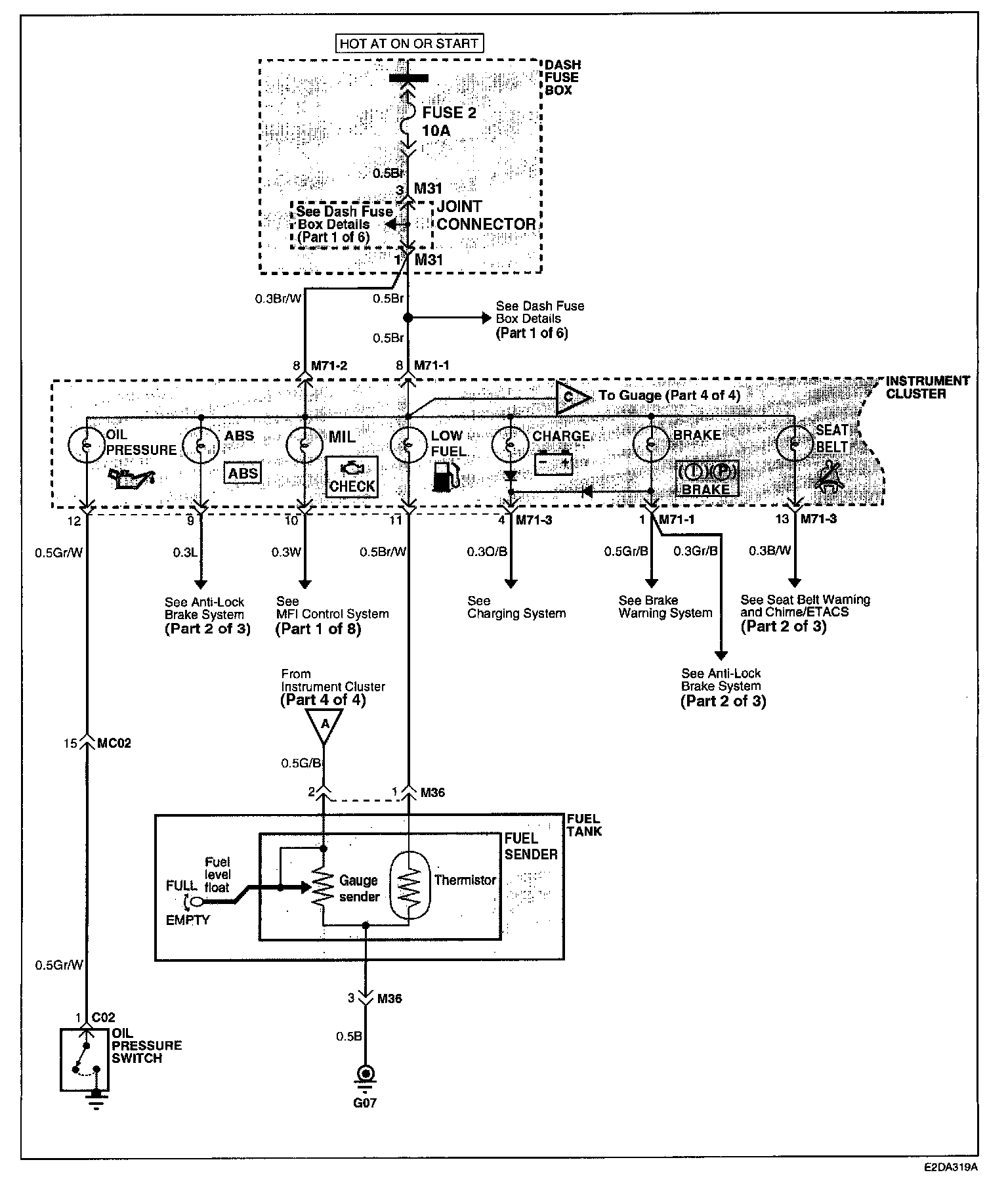

Part 1 Of 4:

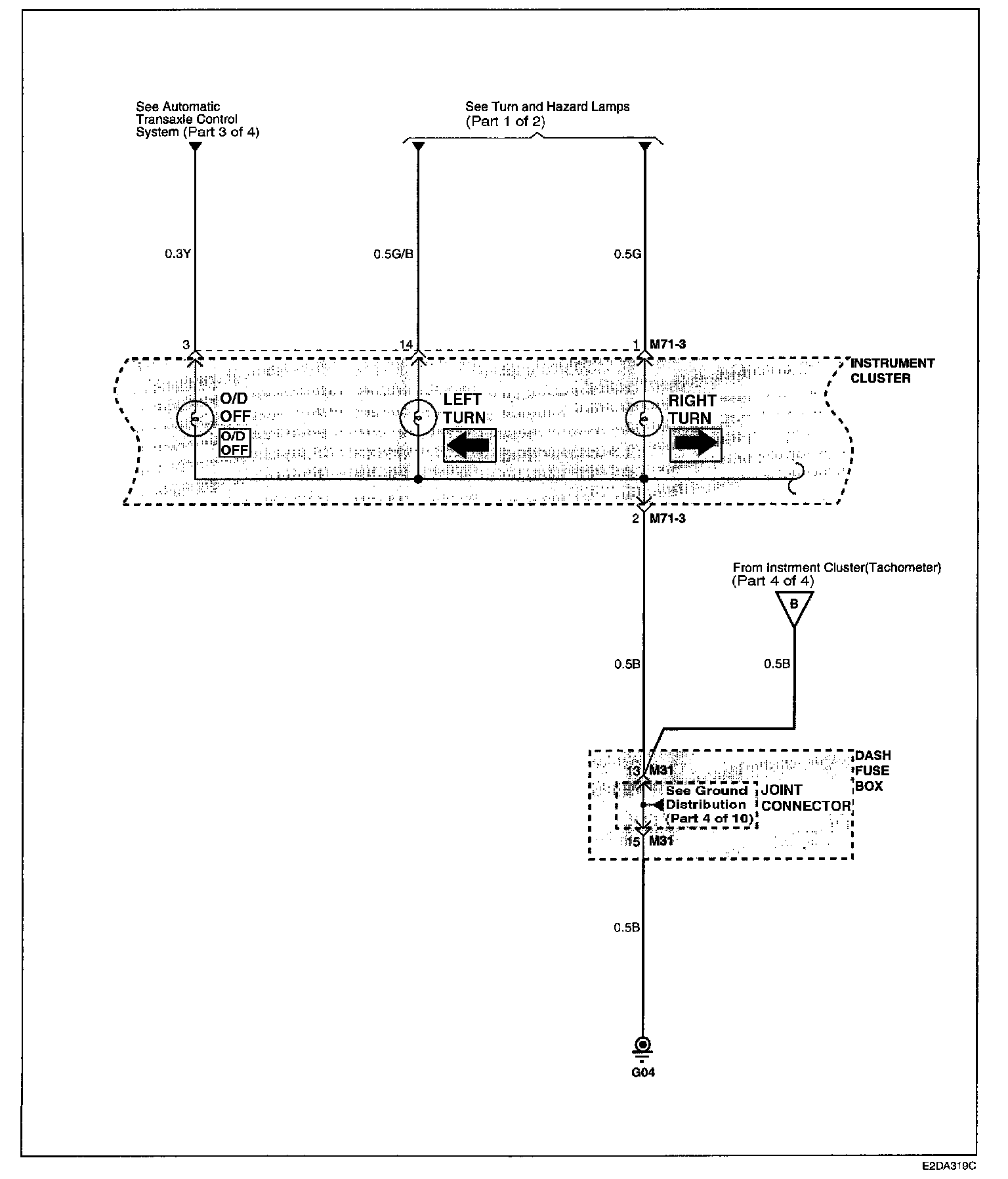

Part 2 Of 4:

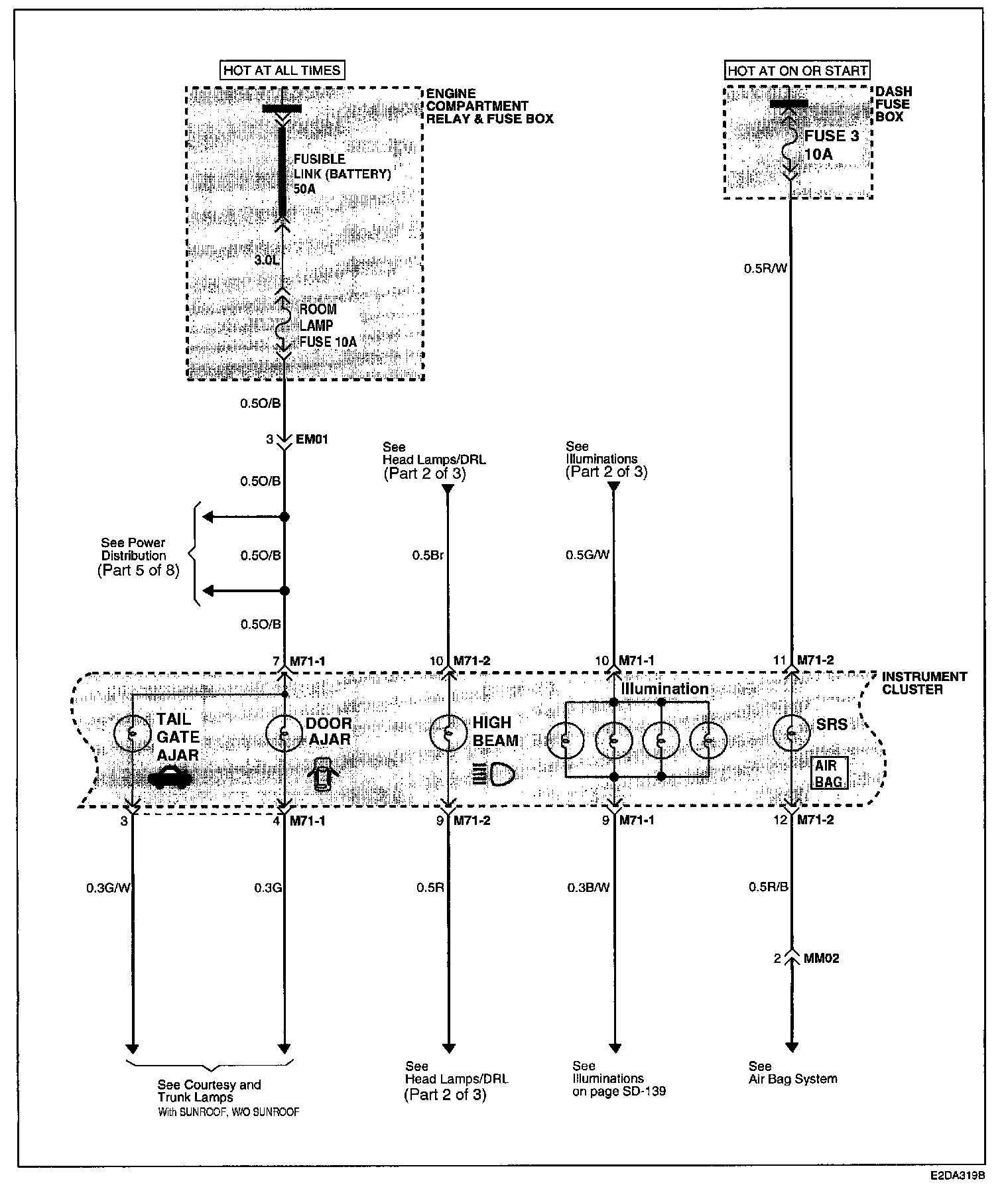

Part 3 Of 4:




Part 4 Of 4:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.
