Home >> Hyundai >> 2000 >> Accent L Hatch Back L4-1495cc 1.5L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse Block

Fuse Block

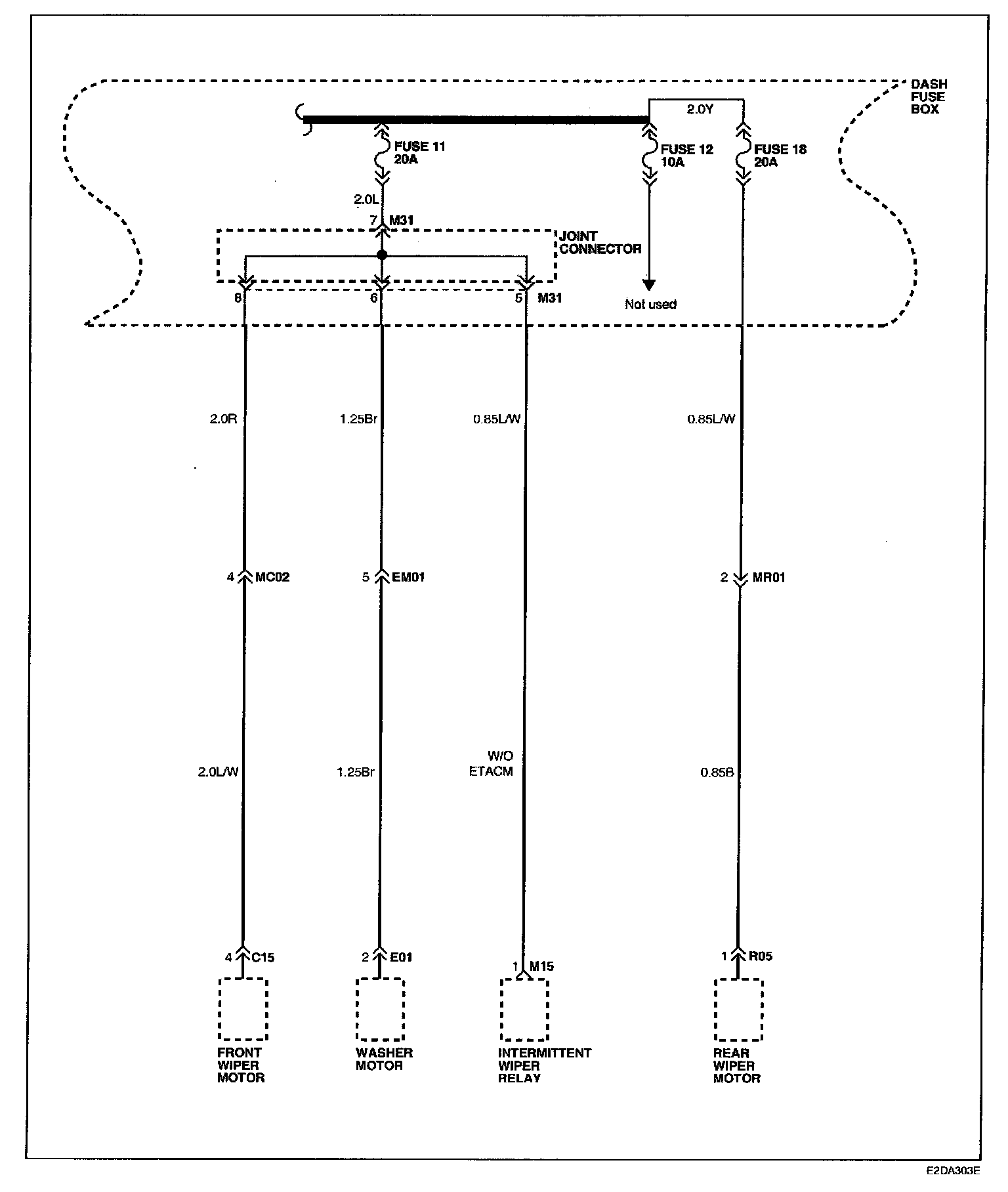

Part 1 Of 6:

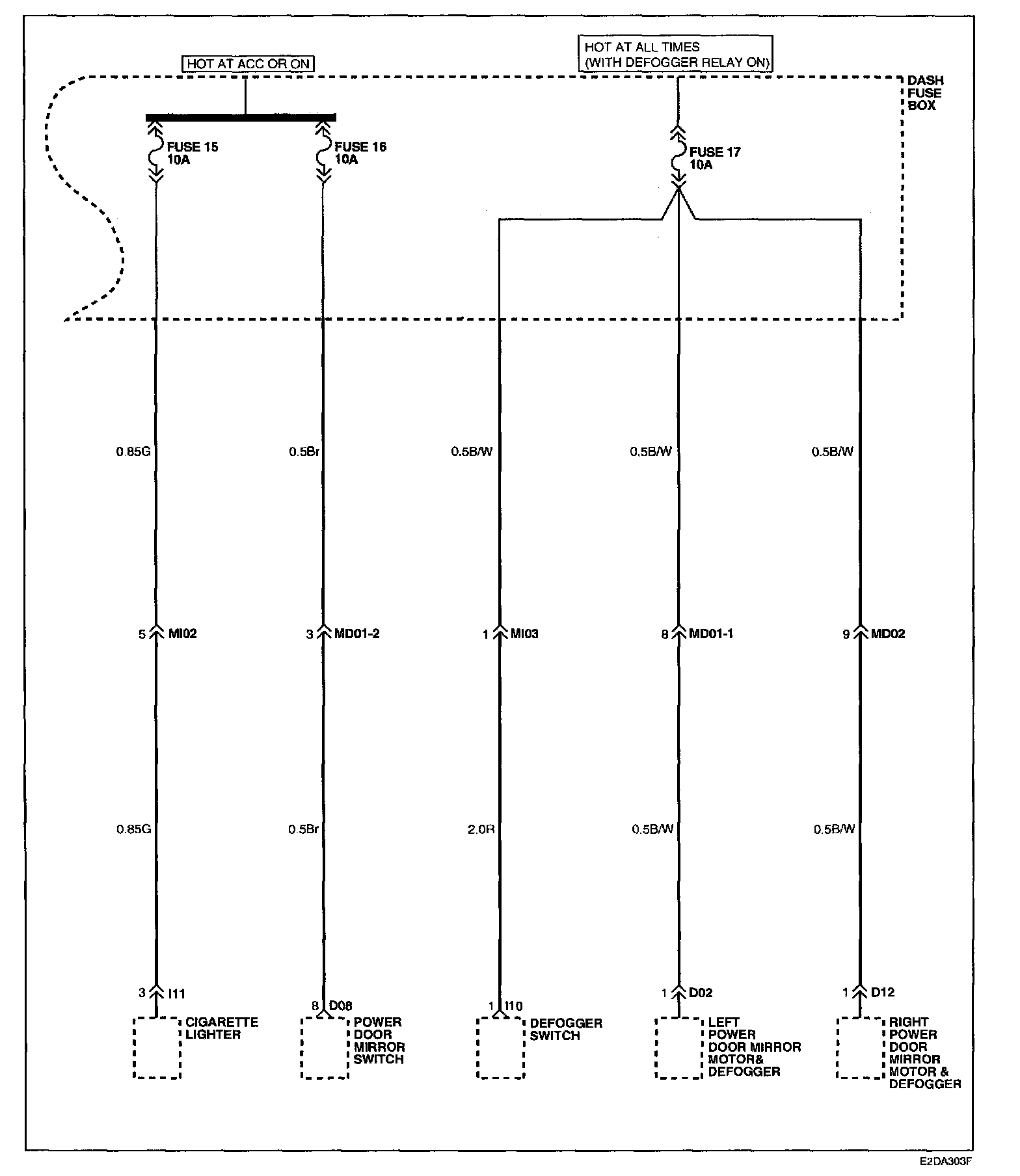

Part 2 Of 6:

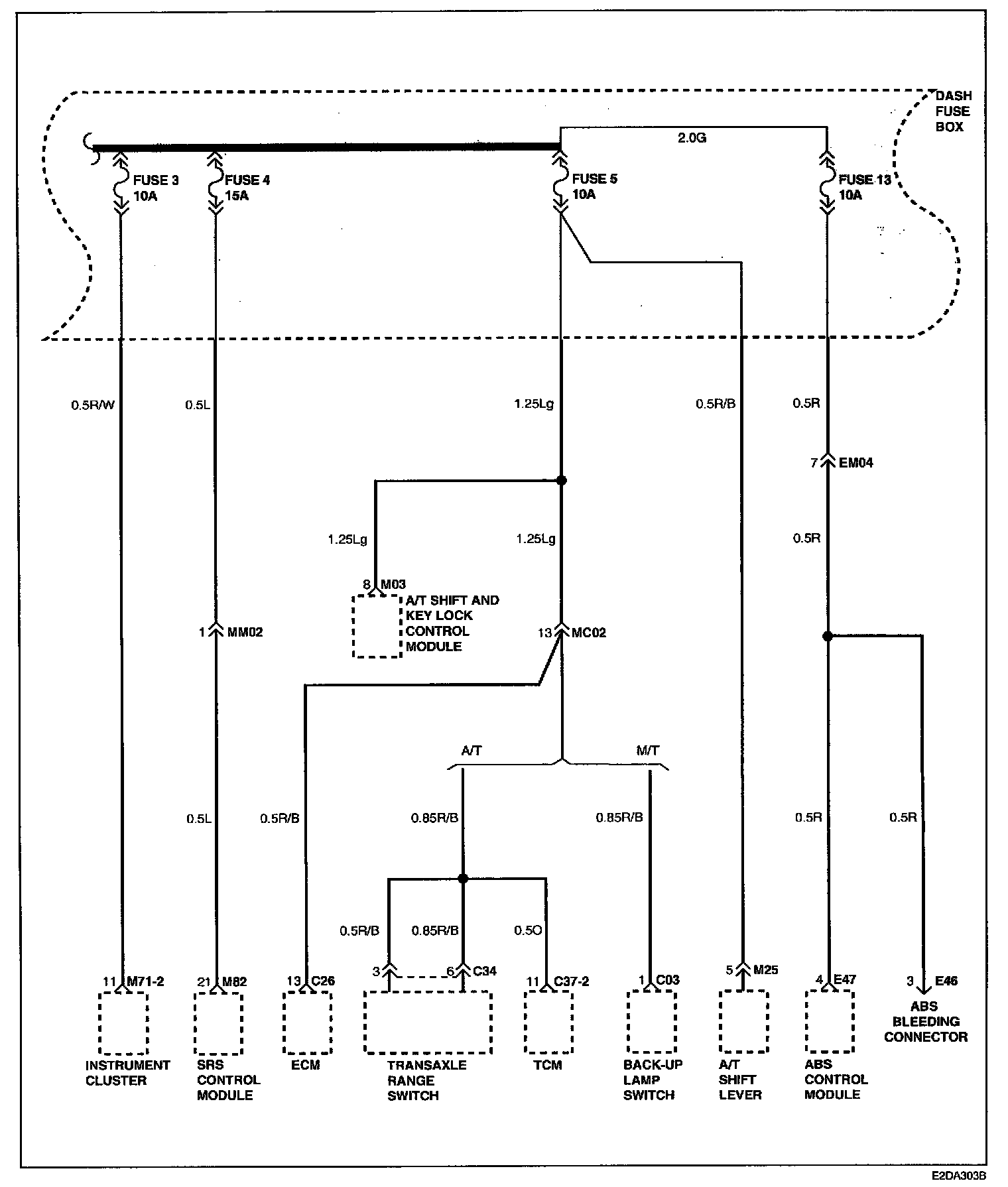

Part 3 Of 6:

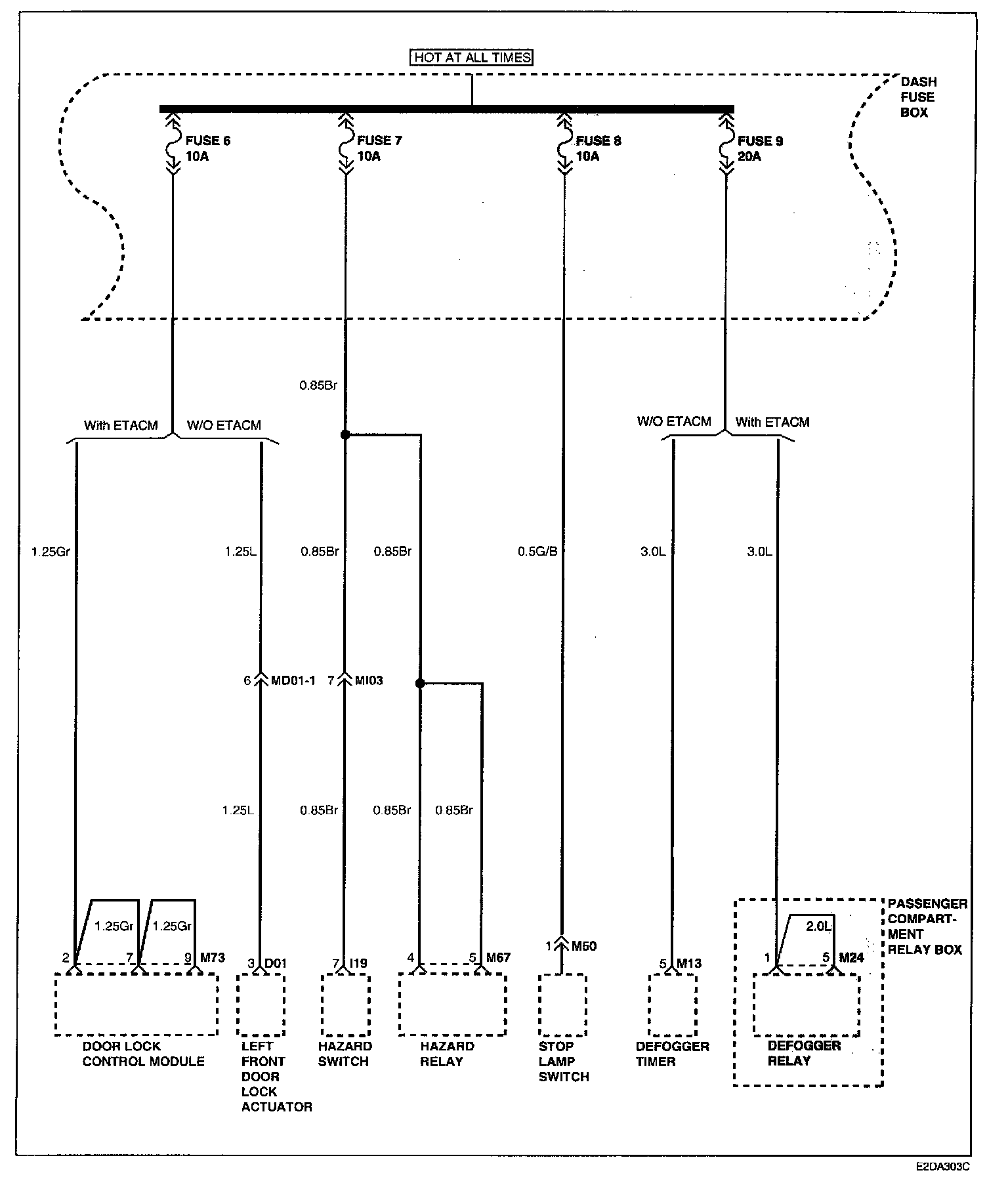

Part 4 Of 6:




Part 5 Of 6:




Part 6 Of 6:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
