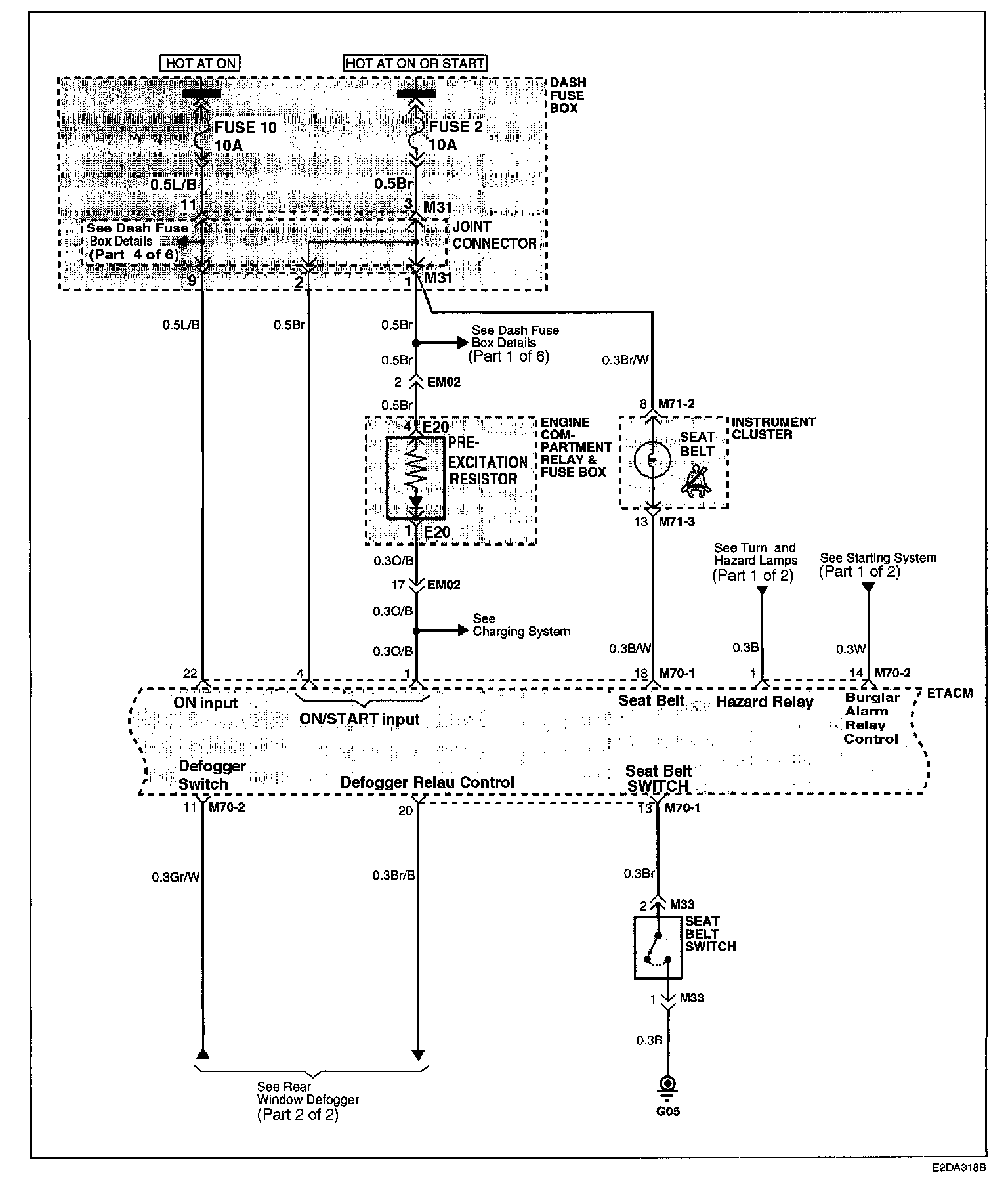

Timer/Control Unit, Accessory Control

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.

Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.

Locations
