Vehicle Speed Sensor

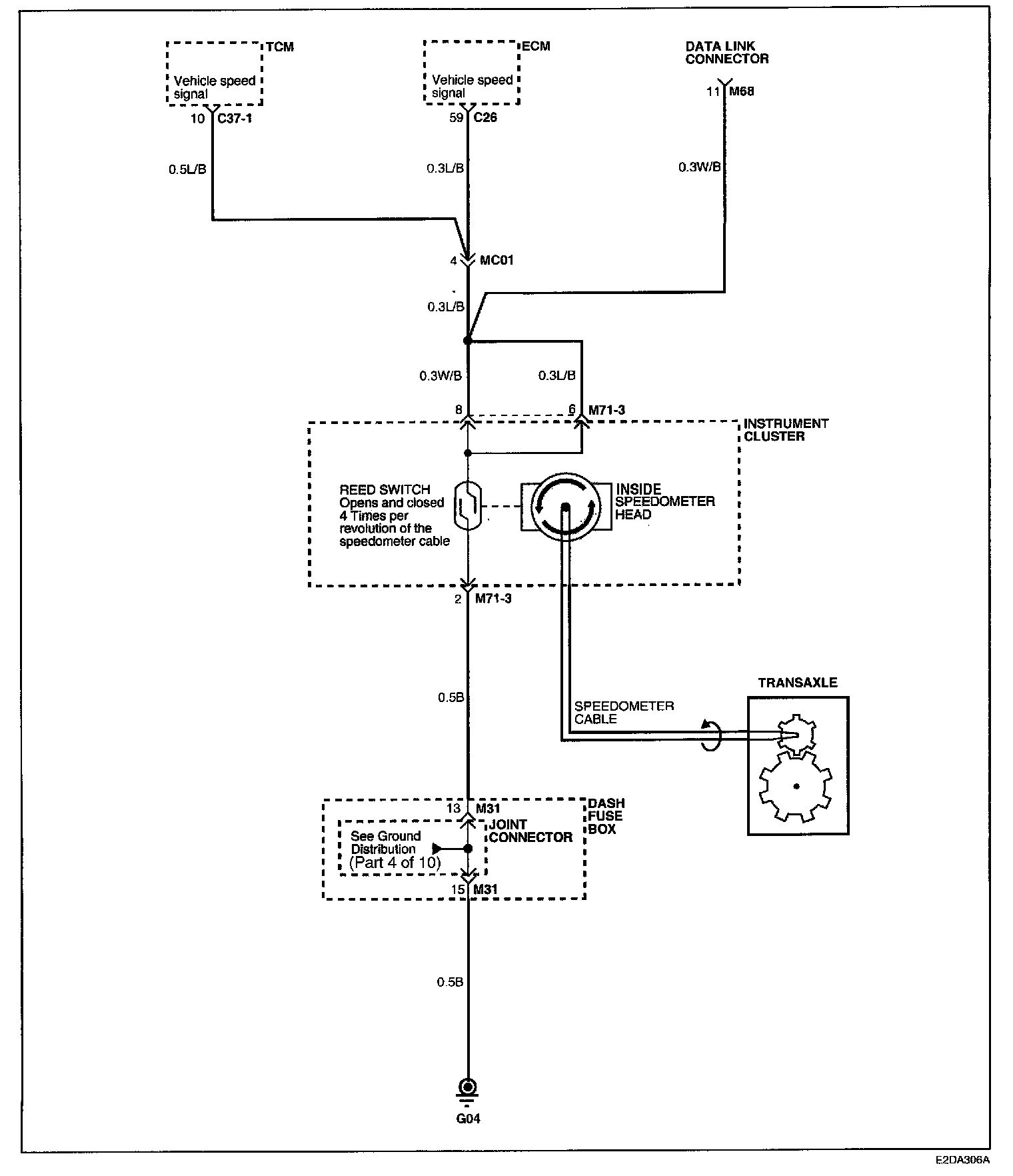

Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
