Front Wiper and Washer

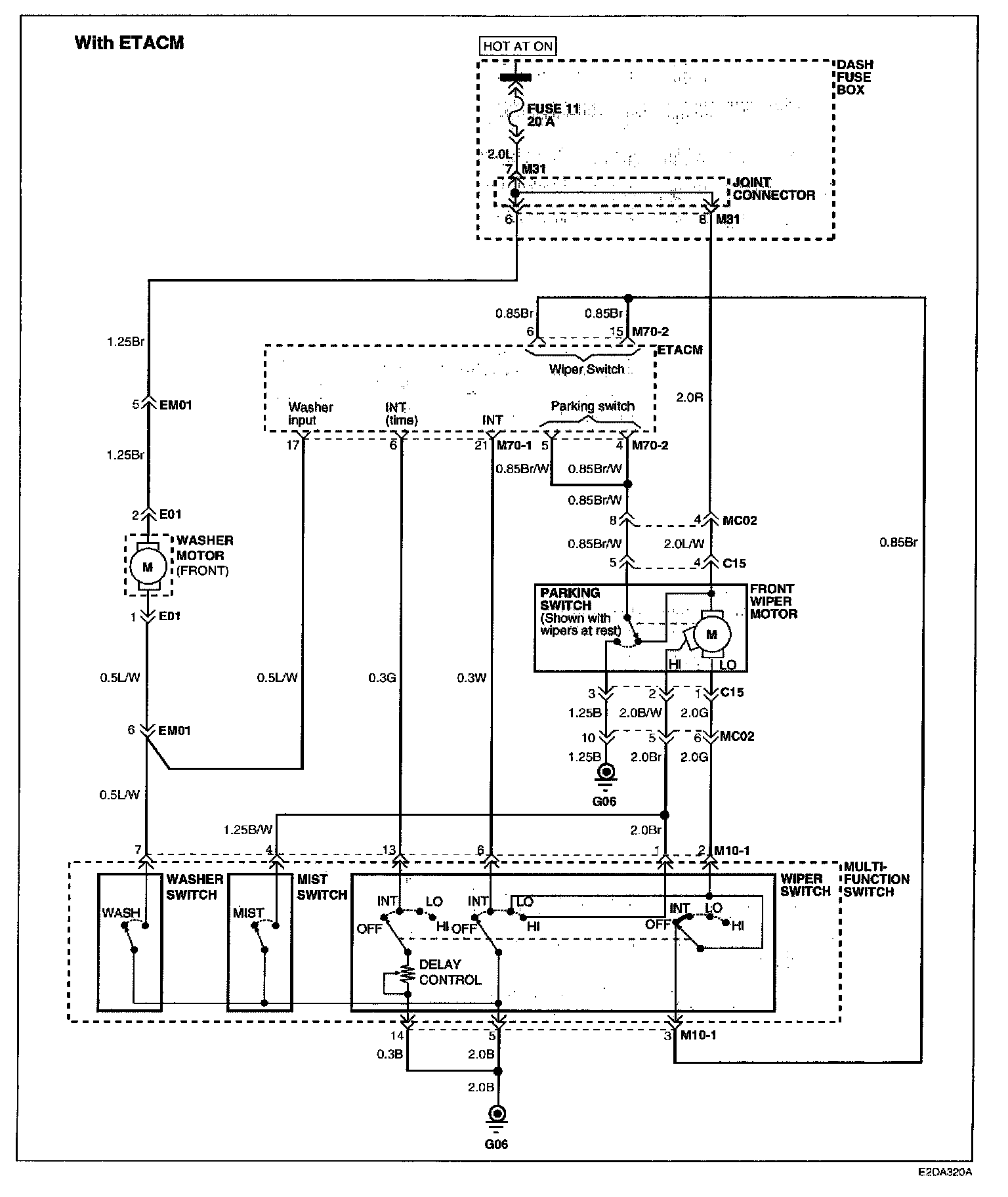

Part 1 Of 2:




Part 2 Of 2:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
