Cylinder Head Assembly

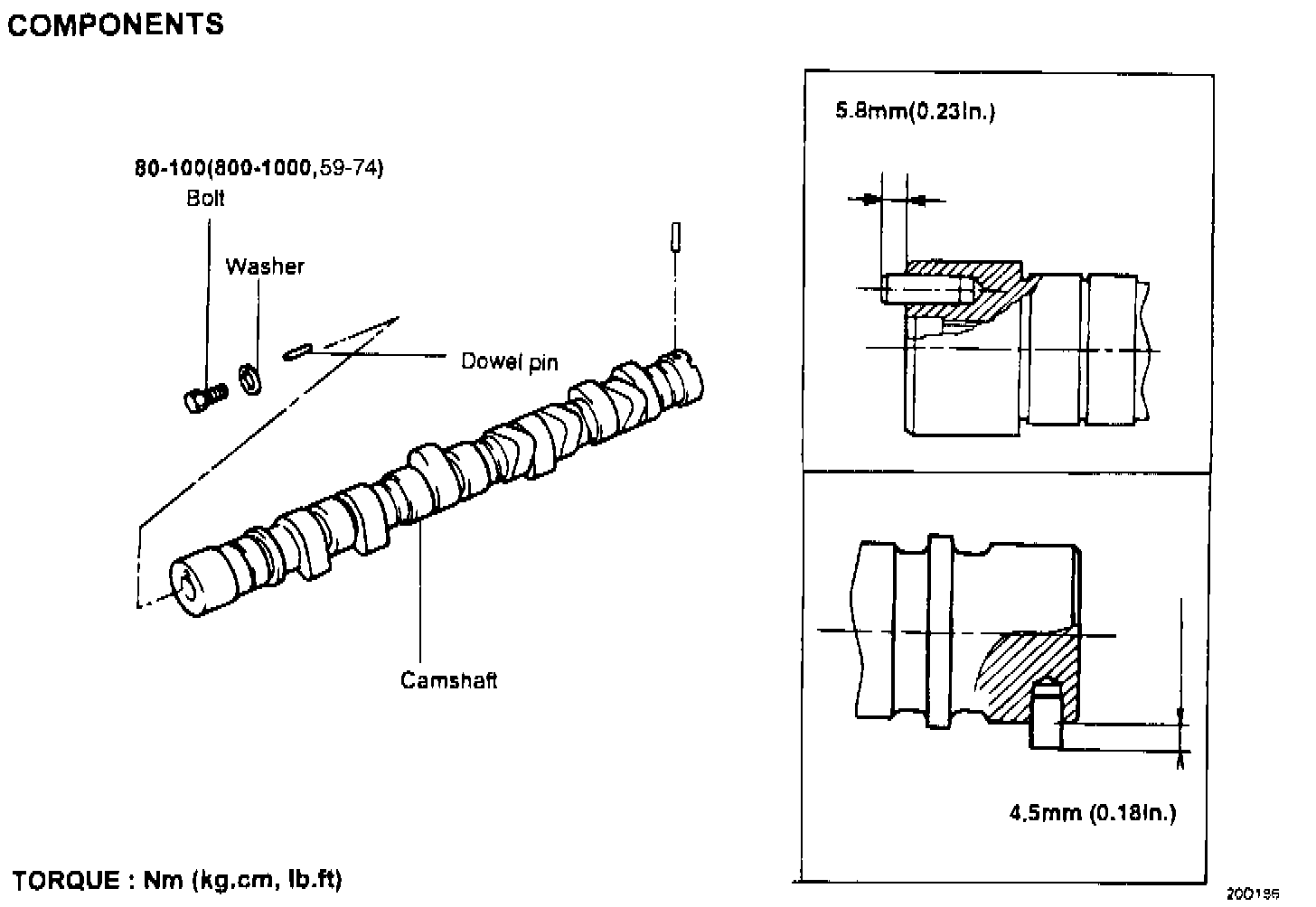

Camshaft Overhaul W/Related Components:





Cylinder Head Overhaul W/Related Components:

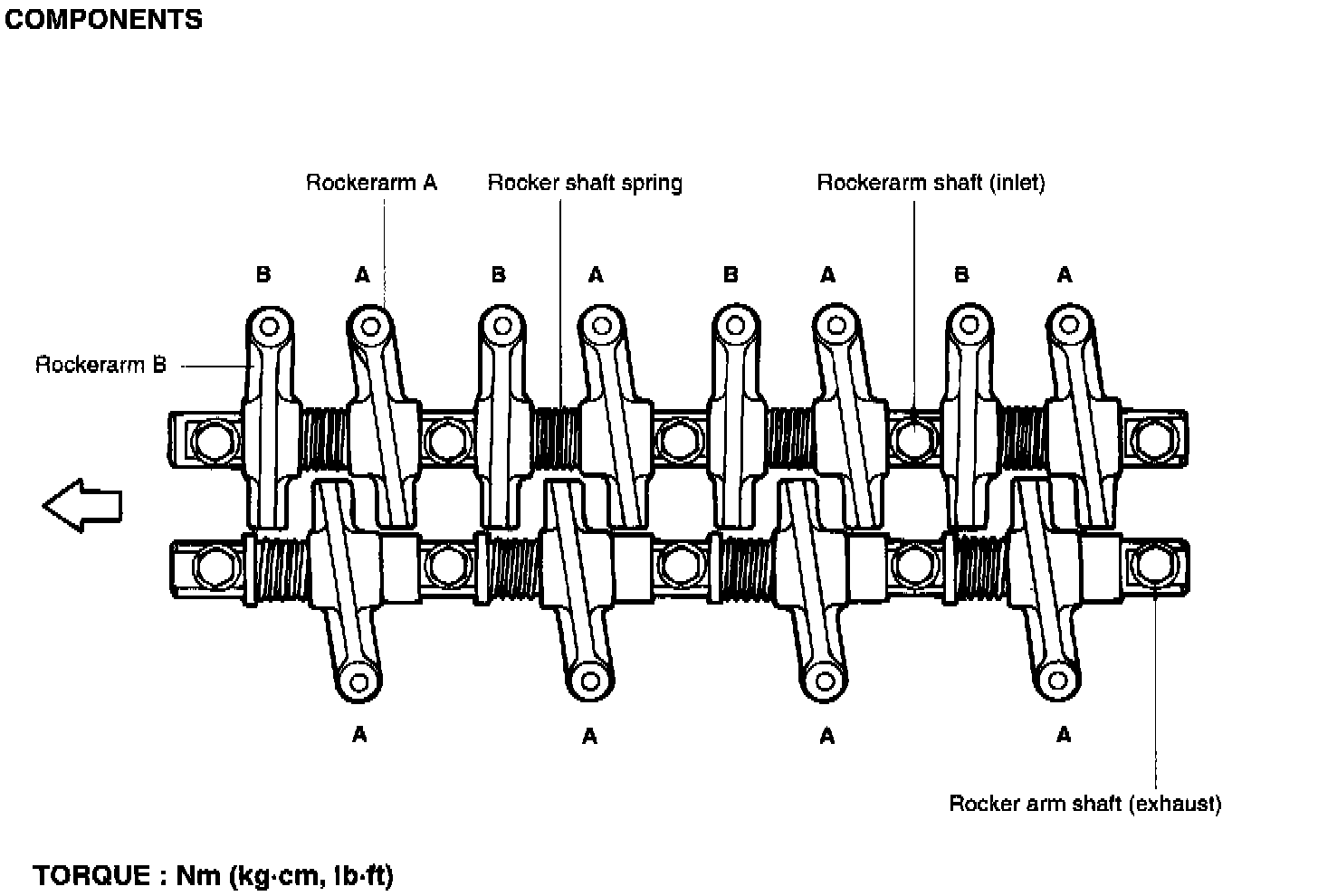

Rocker Arm Assembly:

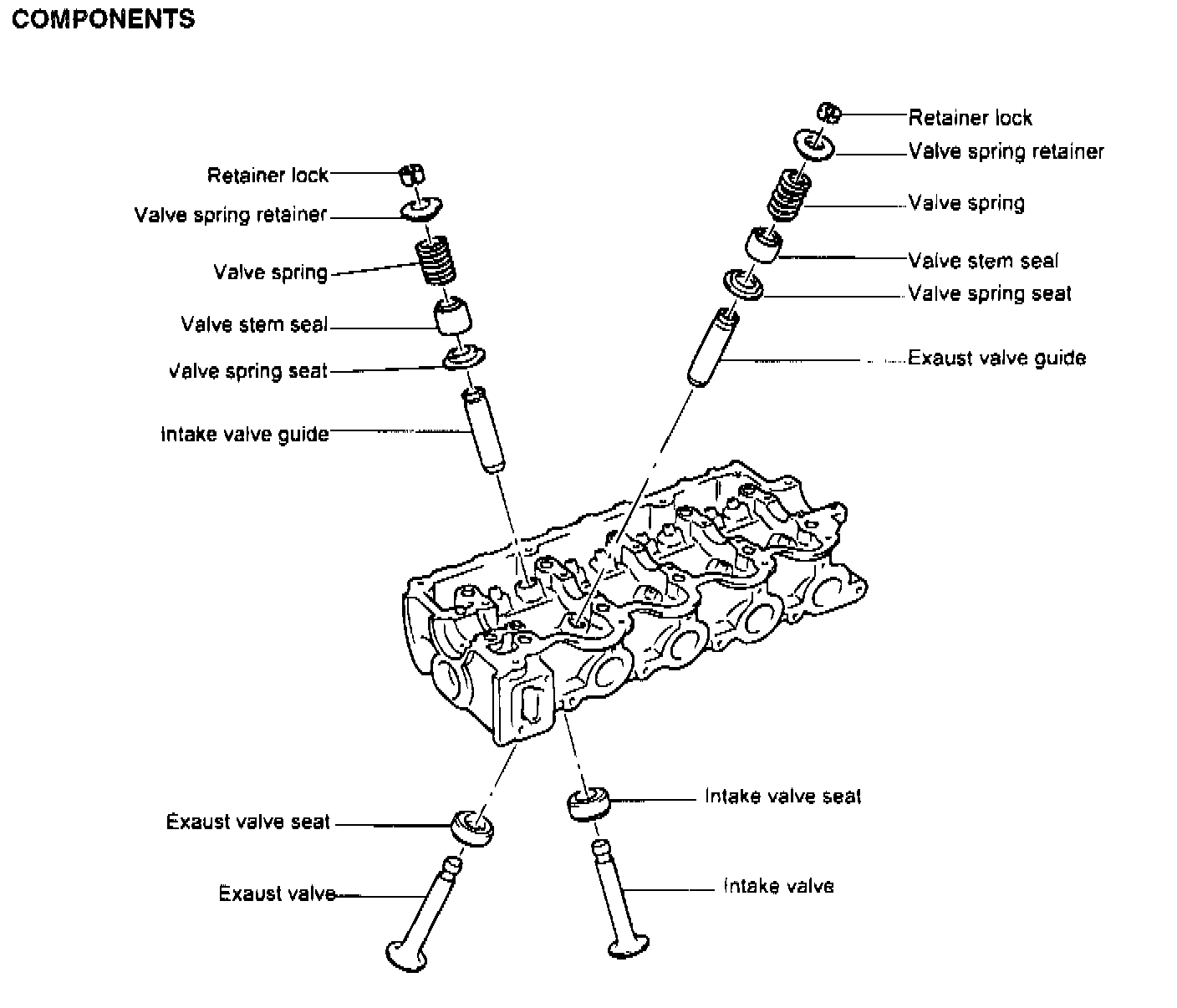

Valves Overhaul W/Related Components:
