Cooling System: Service and Repair

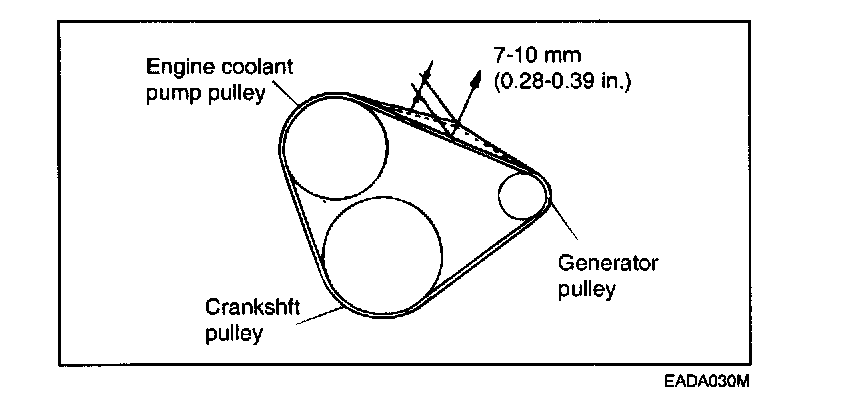

1. To check belt tension, apply pressure (approximately 100 N, 22 lb) midway between the pulleys. Check the deflection and adjust if necessary.

Drive Belt: 7 - 10 mm (0.28 - 0.39 in.)
