Ground Distribution

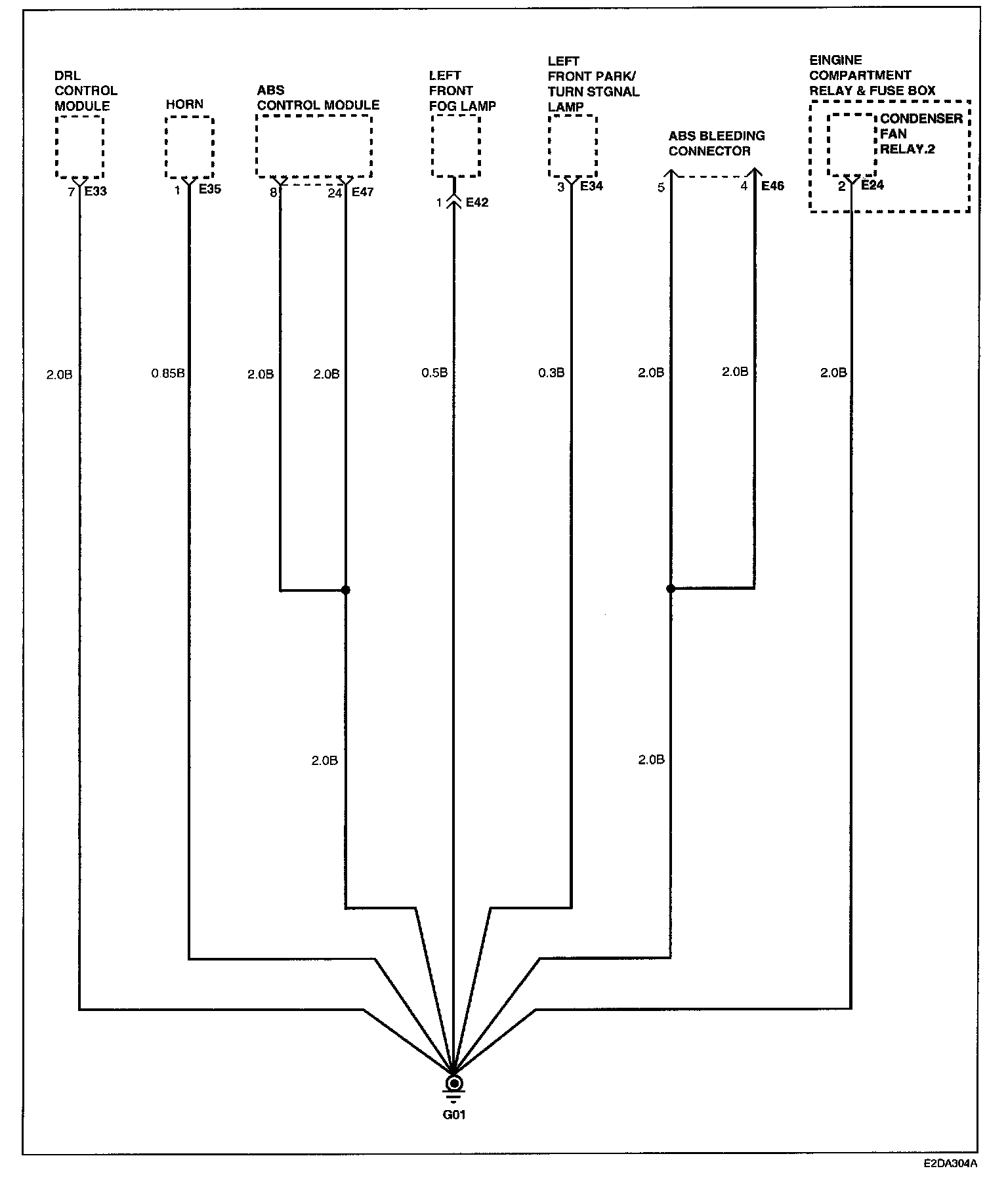

Part 1 Of 10:




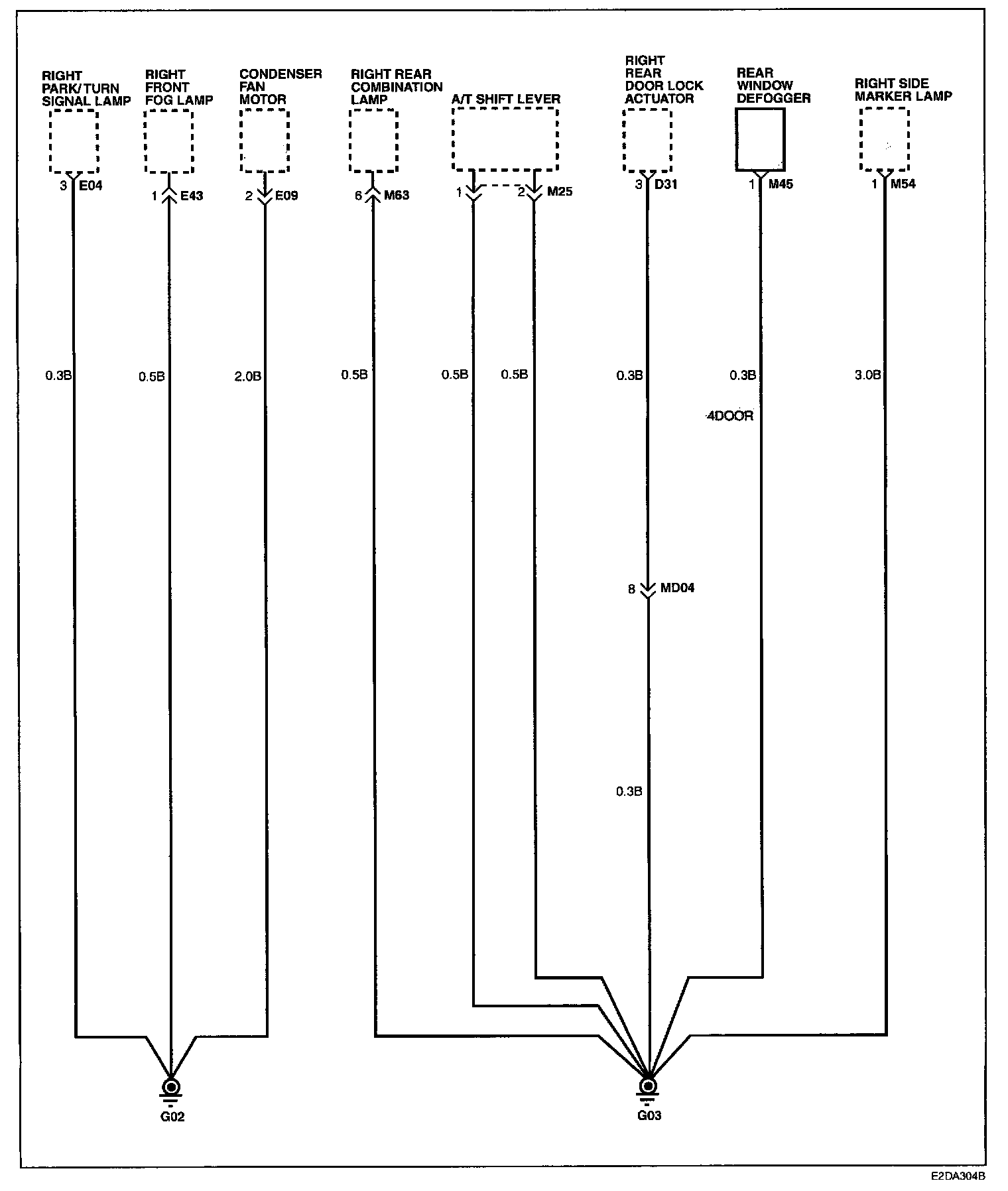

Part 2 Of 10:

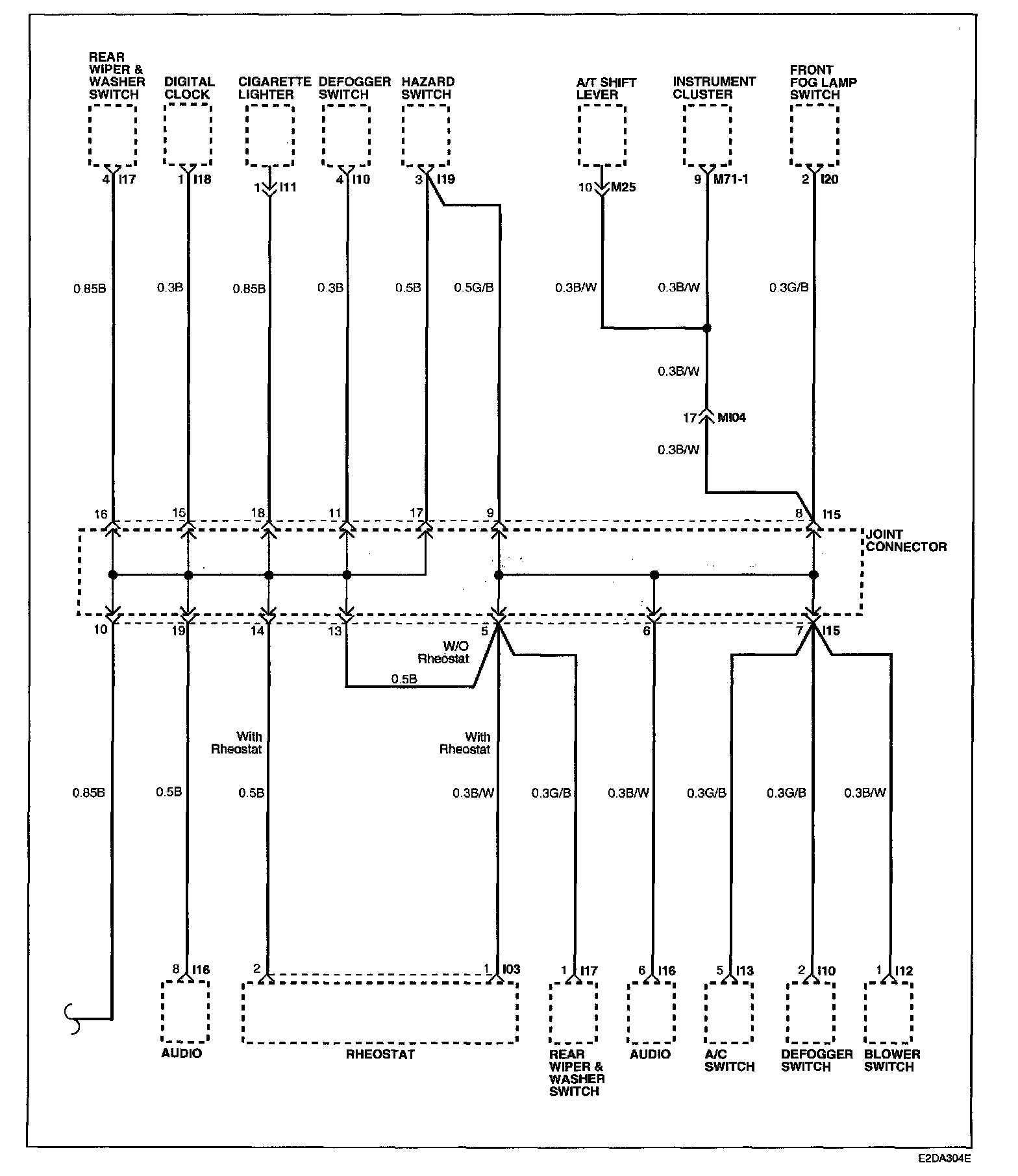

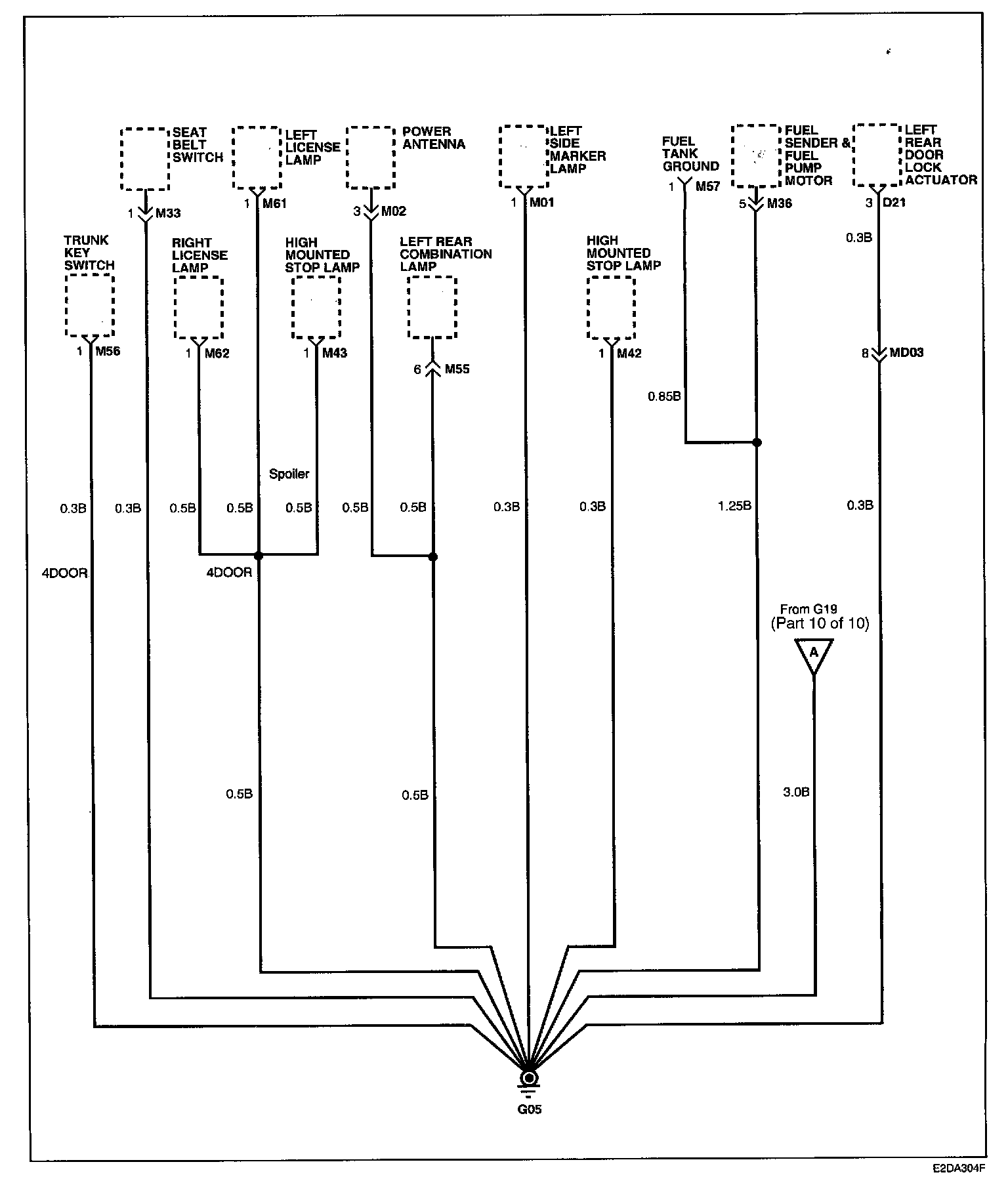

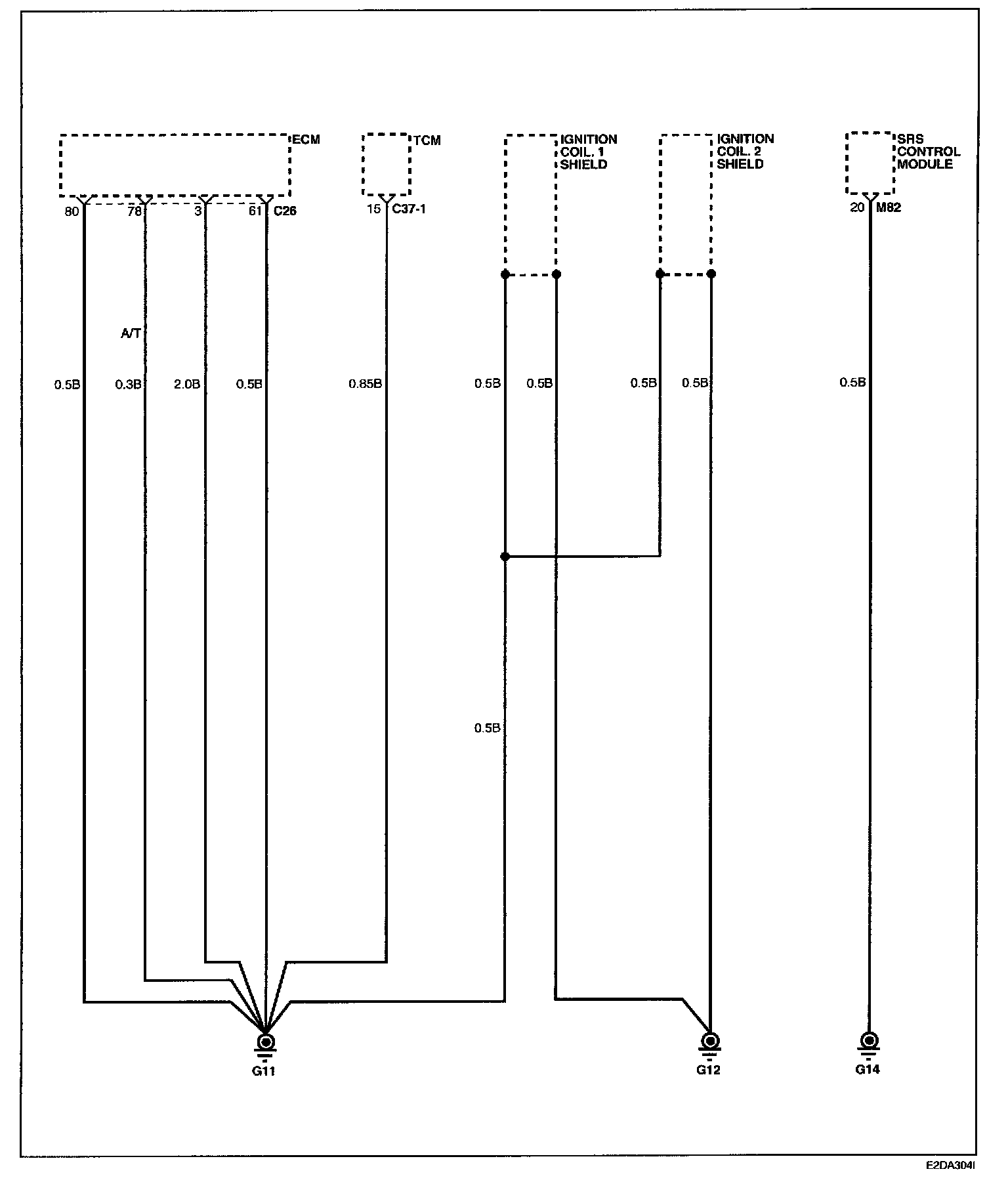

Part 3 Of 10:




Part 4 Of 10:




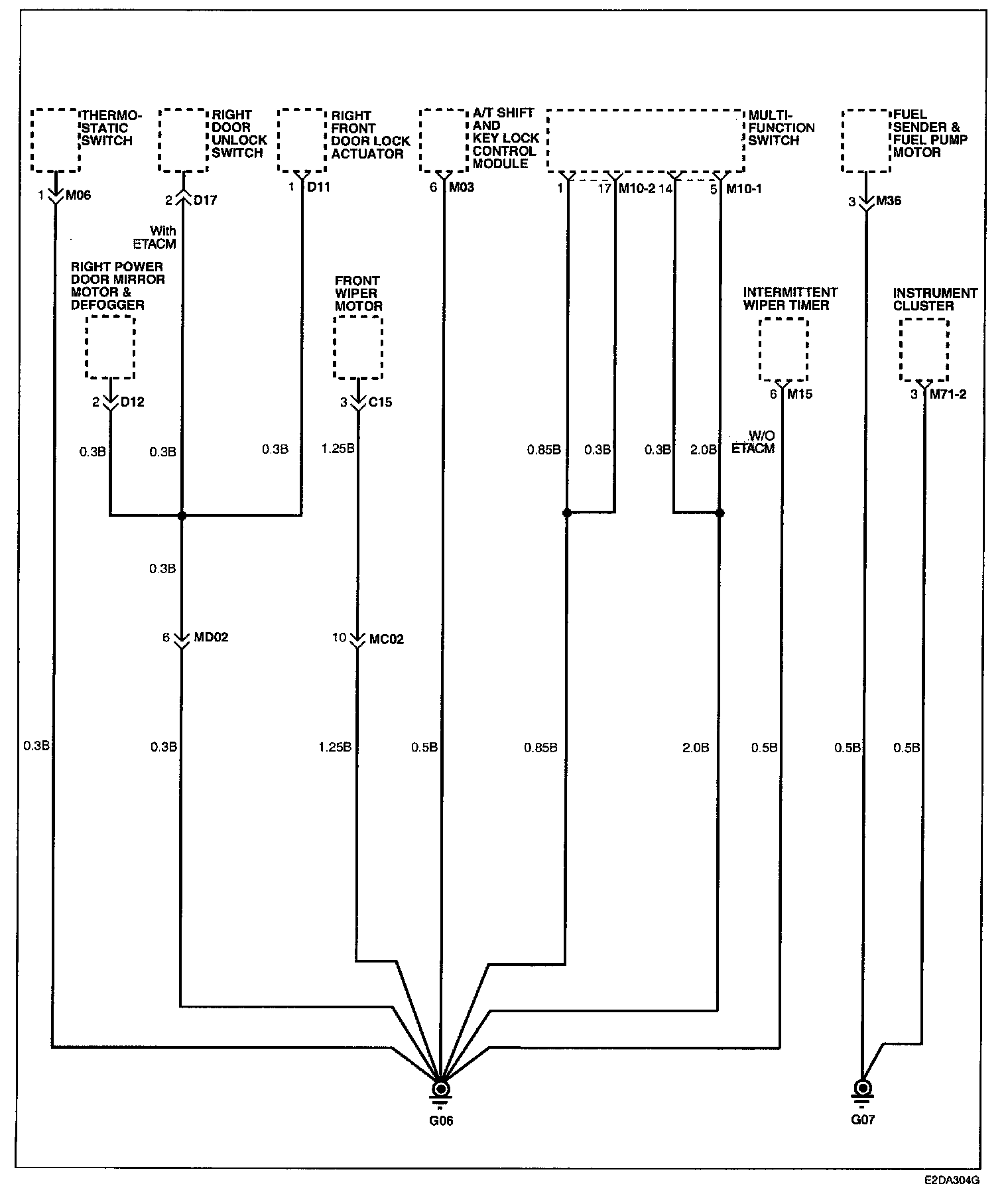

Part 5 Of 10:




Part 6 Of 10:




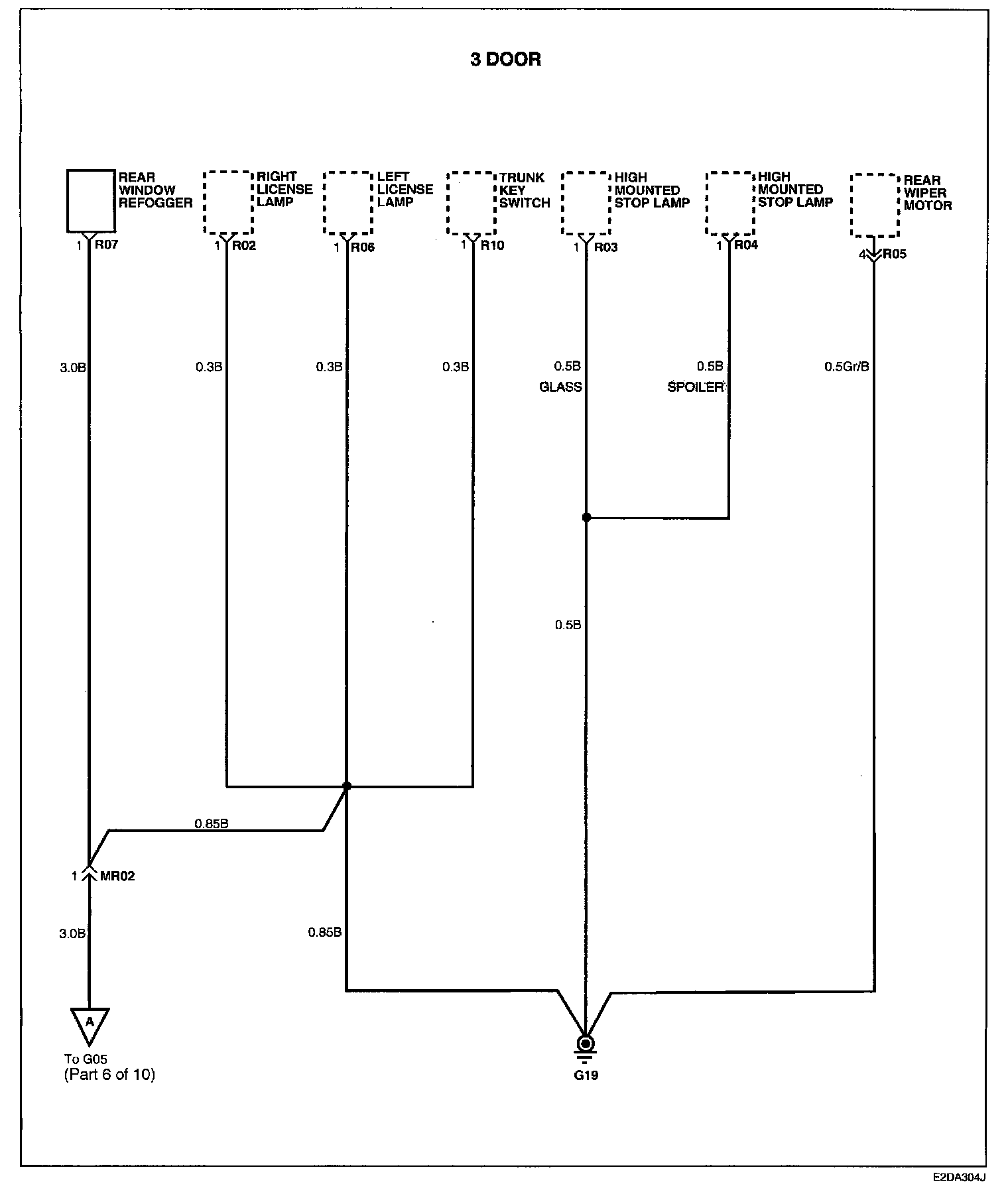

Part 7 Of 10:




Part 8 Of 10:




Part 9 Of 10:




Part 10 Of 10:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.
