Power Distribution

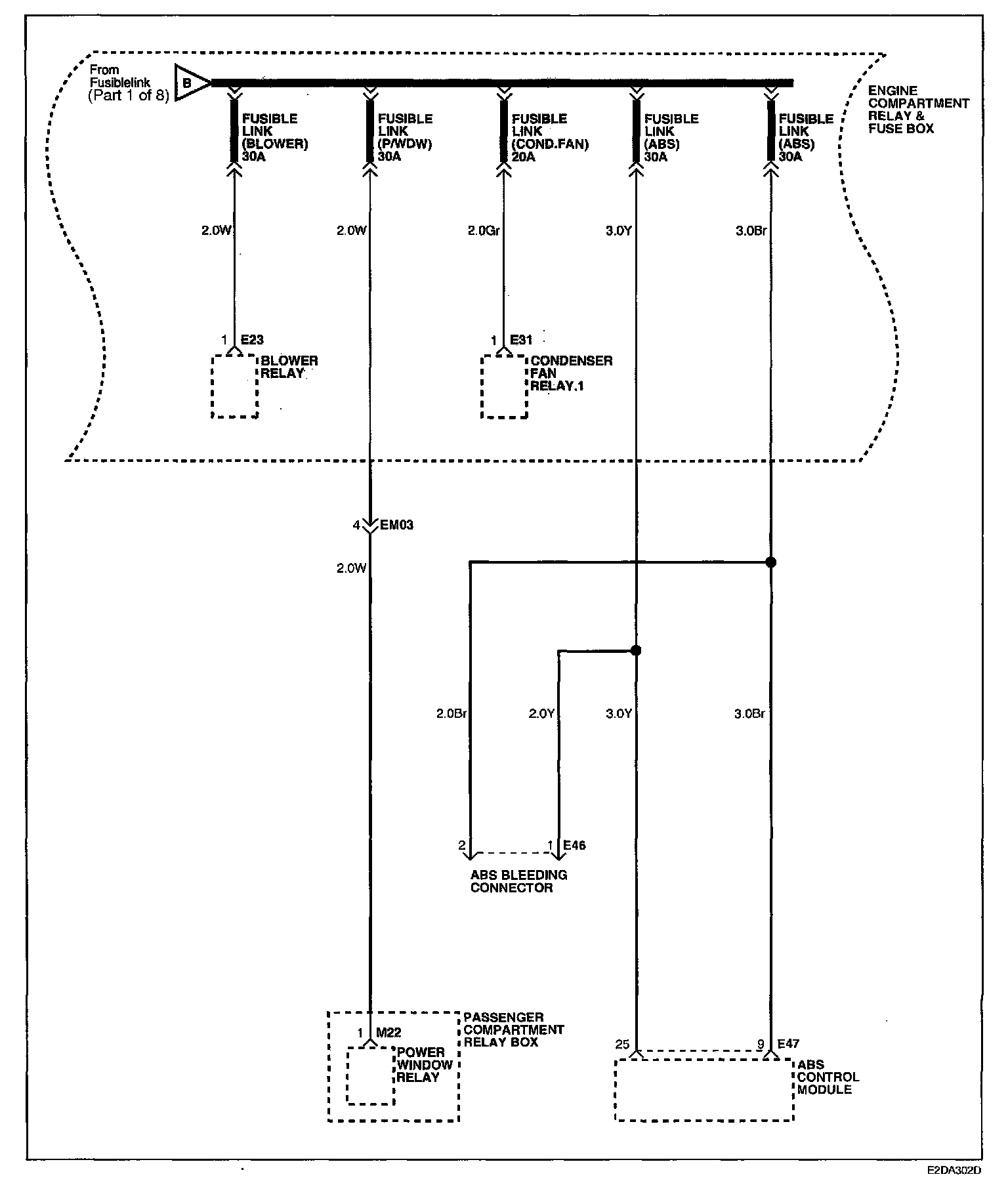

Part 1 Of 8:

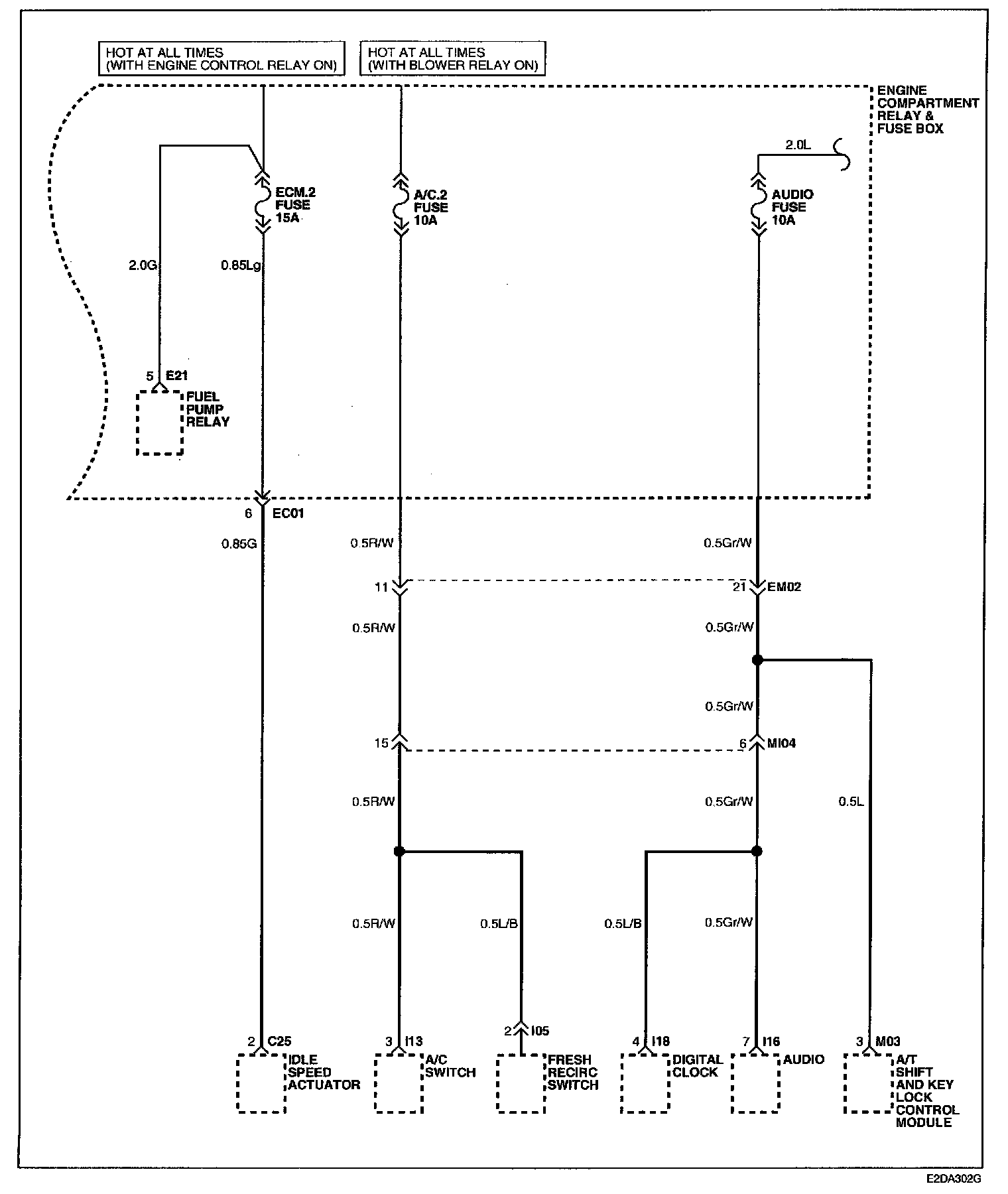

Part 2 Of 8:

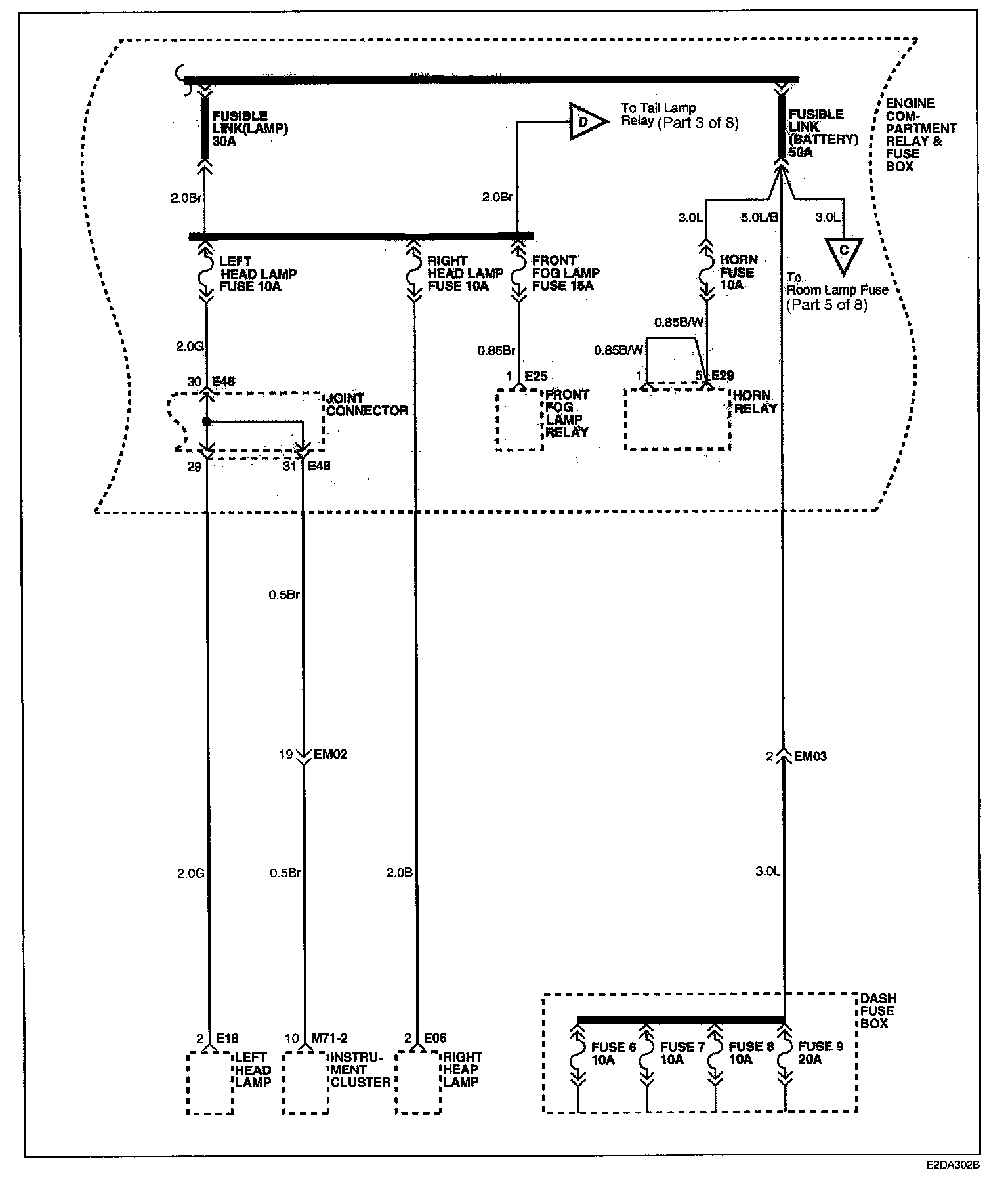

Part 3 Of 8:

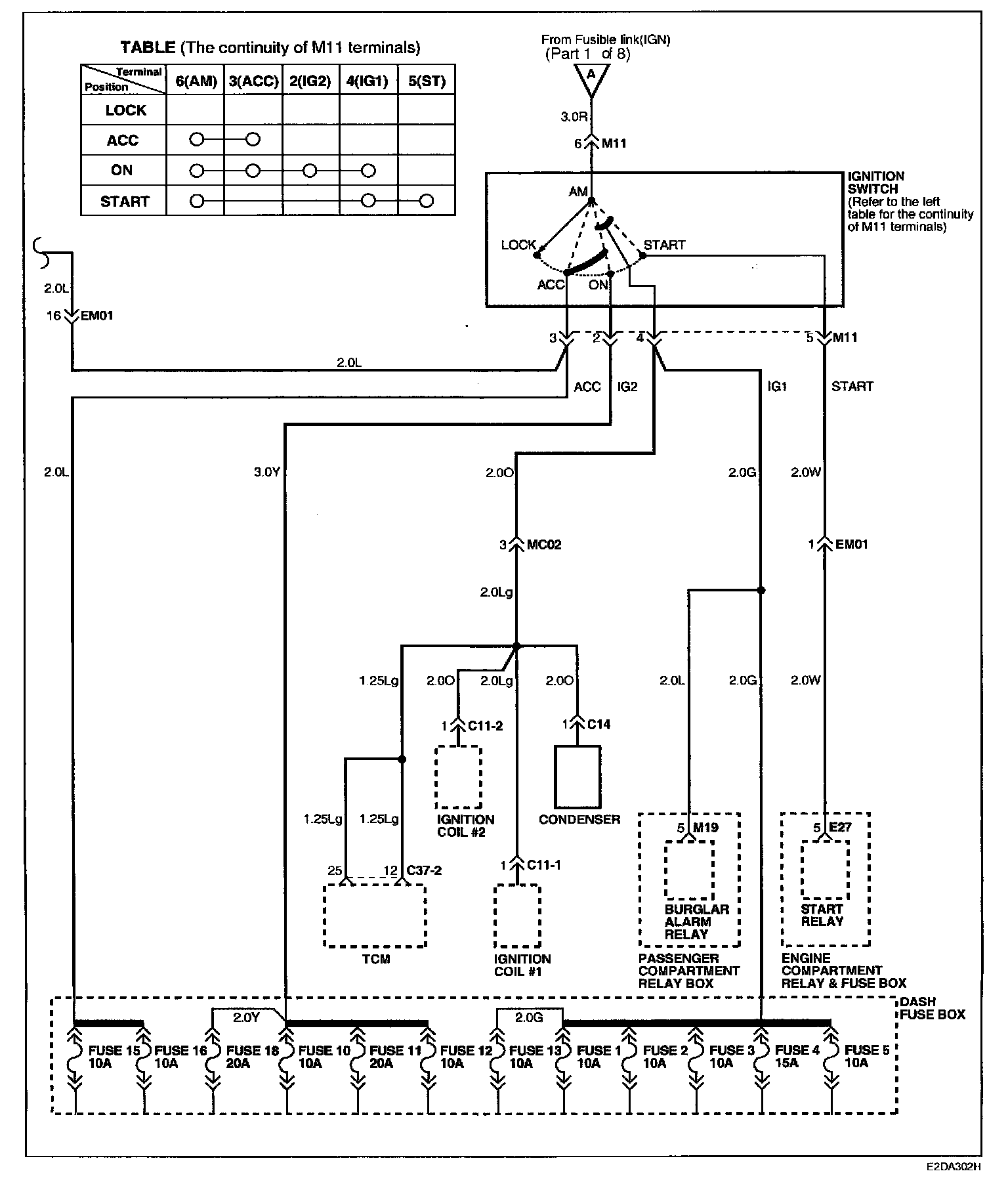

Part 4 Of 8:

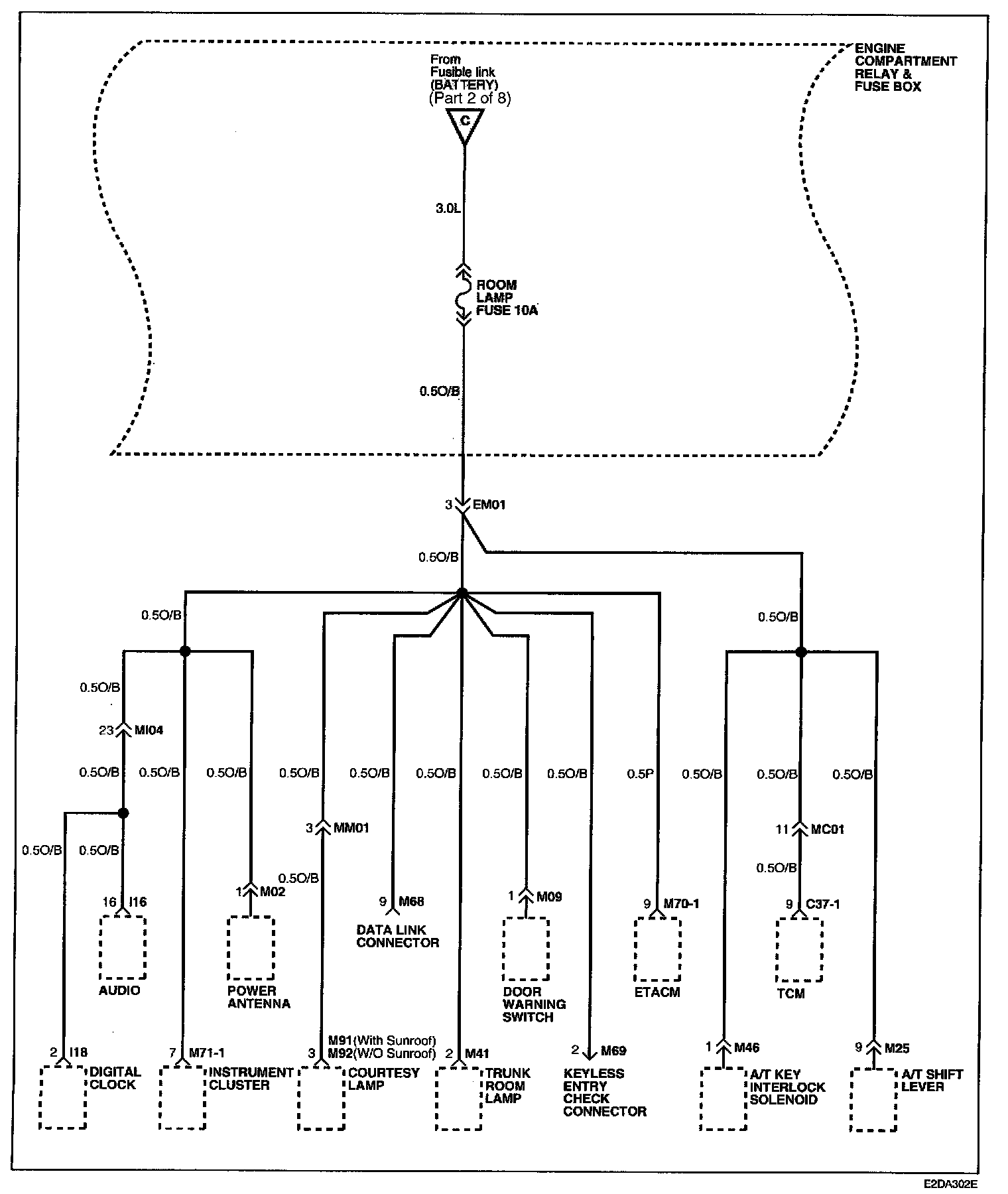

Part 5 Of 8:




Part 6 Of 8:




Part 7 Of 8:




Part 8 Of 8:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.

Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
