ECM Power and Ground Supply Circuits




Check the ground condition of the engine control module.

Circuit Diagram:

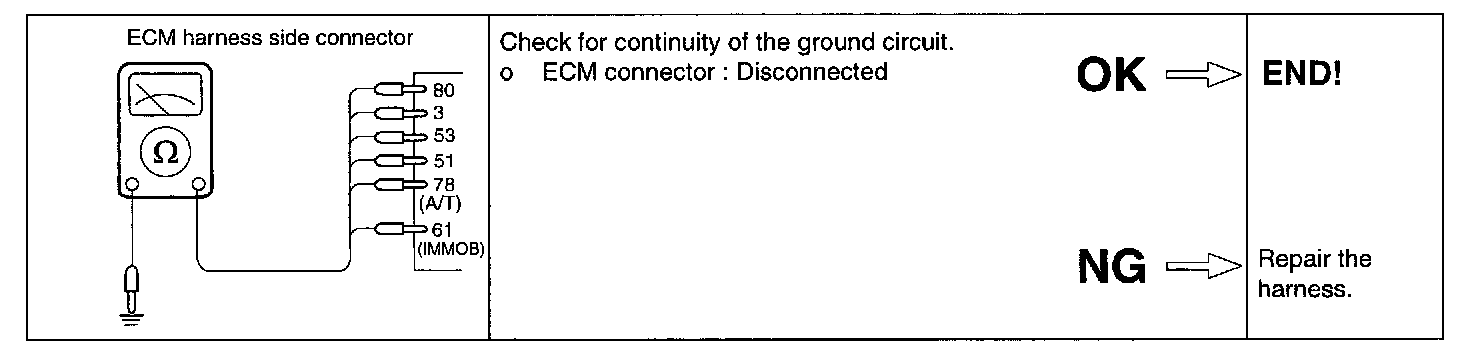

Harness Inspection Procedure:
