Exploded Views
OIL PUMP ASSEMBLY
FRONT CLUTCH ASSEMBLY

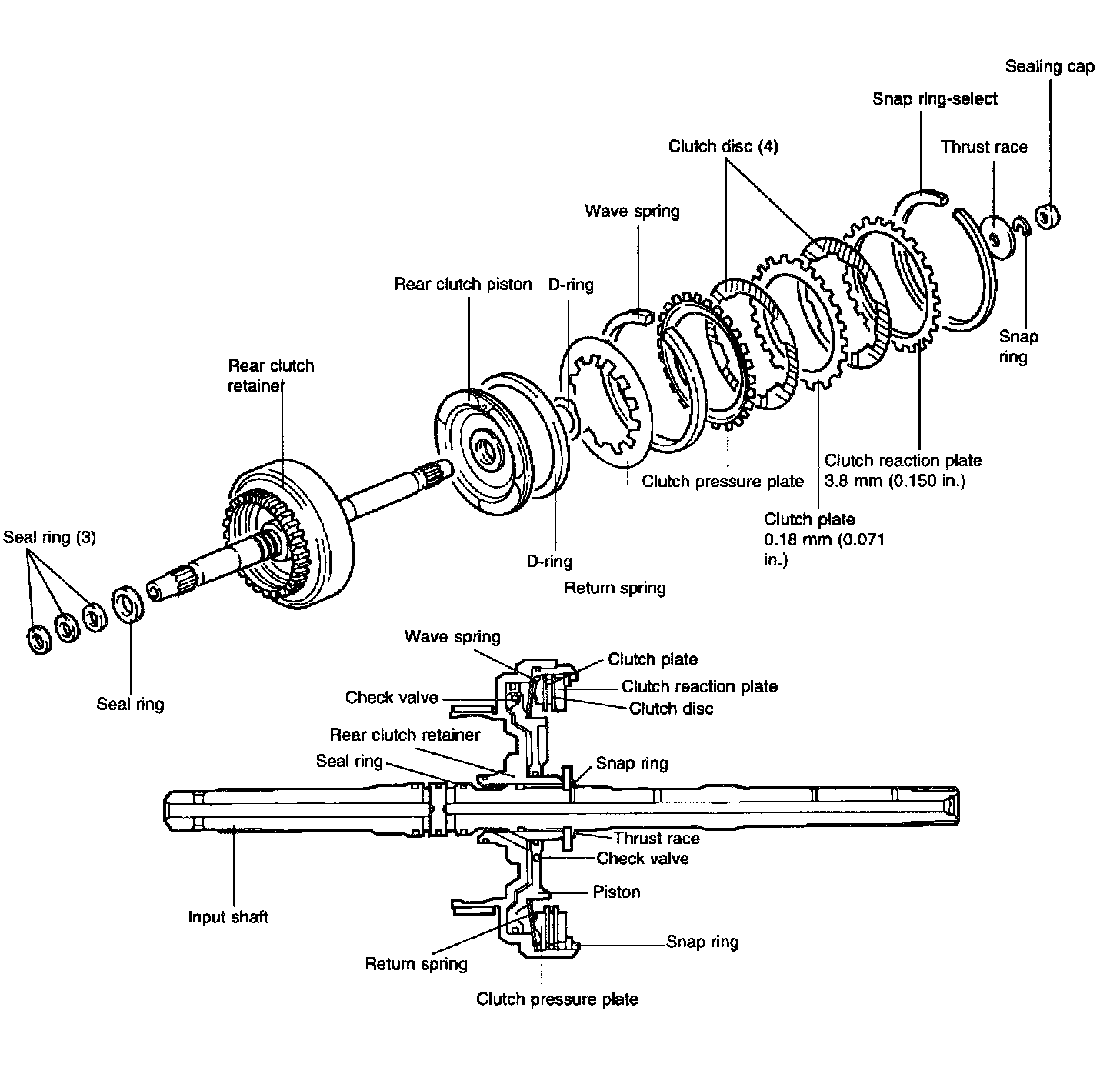

REAR CLUTCH ASSEMBLY
END CLUTCH ASSEMBLY
PLANETARY GEAR SET
ANNULUS GEAR AND OUTPUT FLANGE
TRANSFER DRIVEN GEAR ASSEMBLY
TRANSFER SHAFT ASSEMBLY
DIFFERENTIAL
VALVE BODY

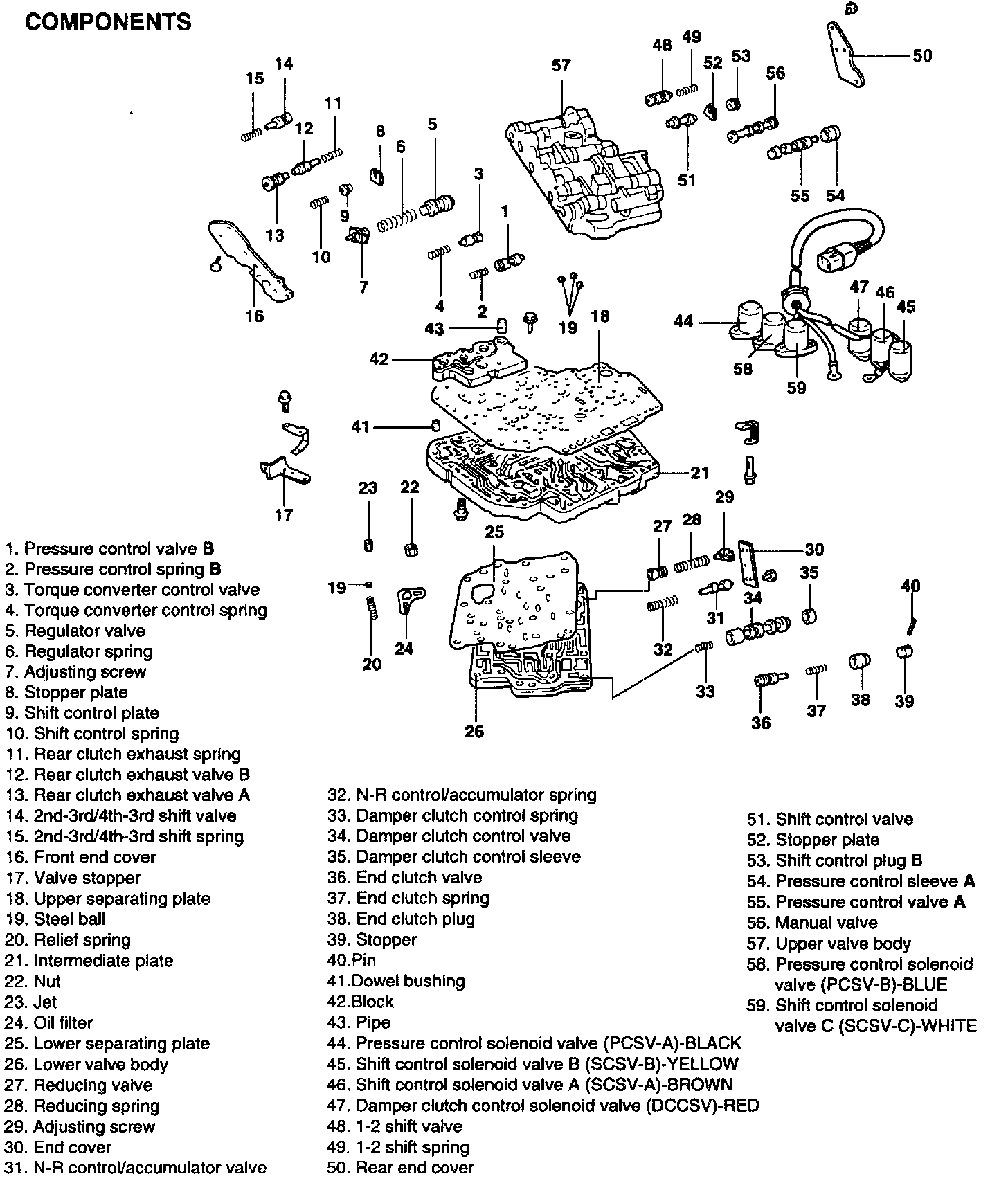

Valve Body

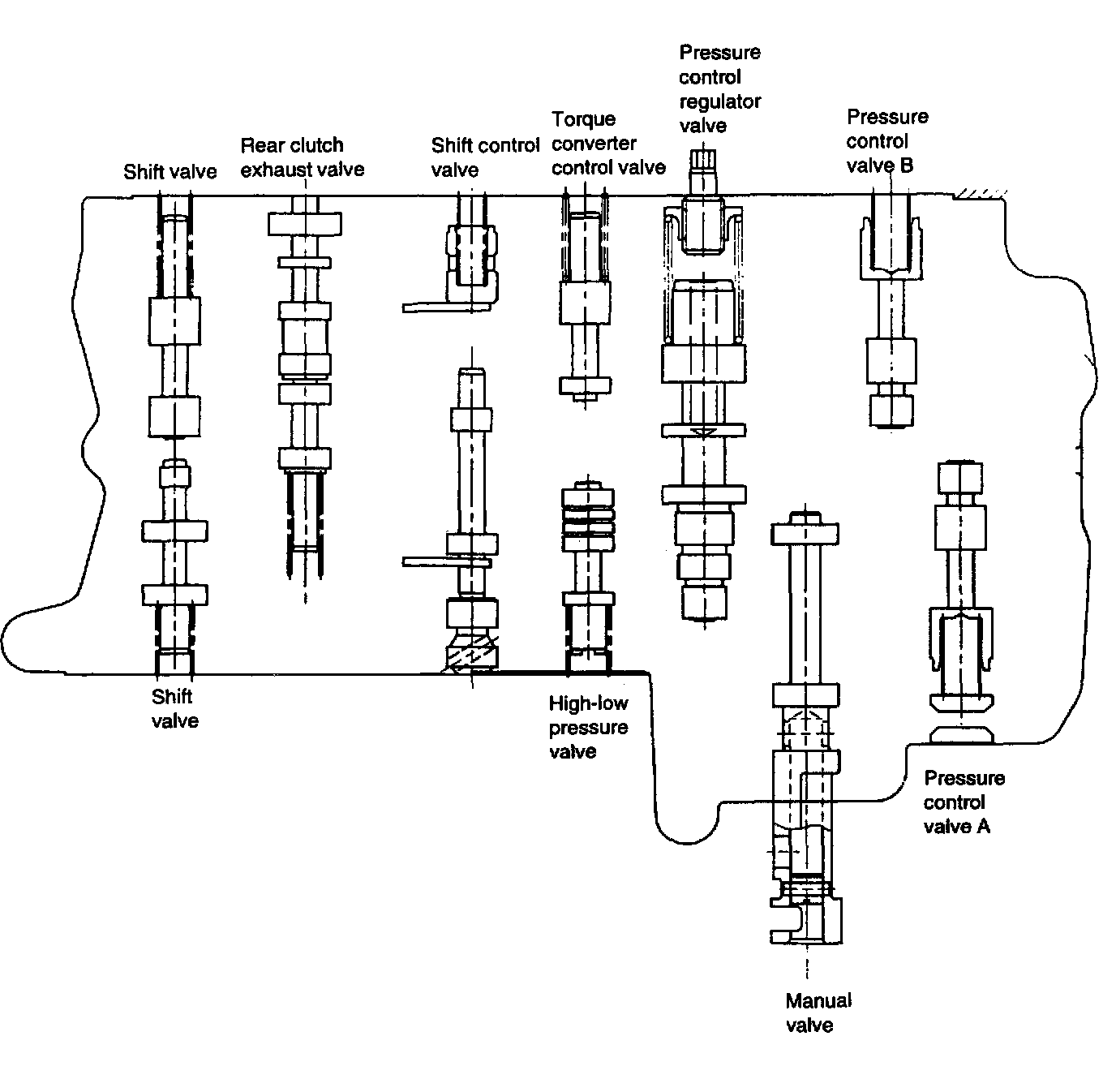

Upper Valve Body

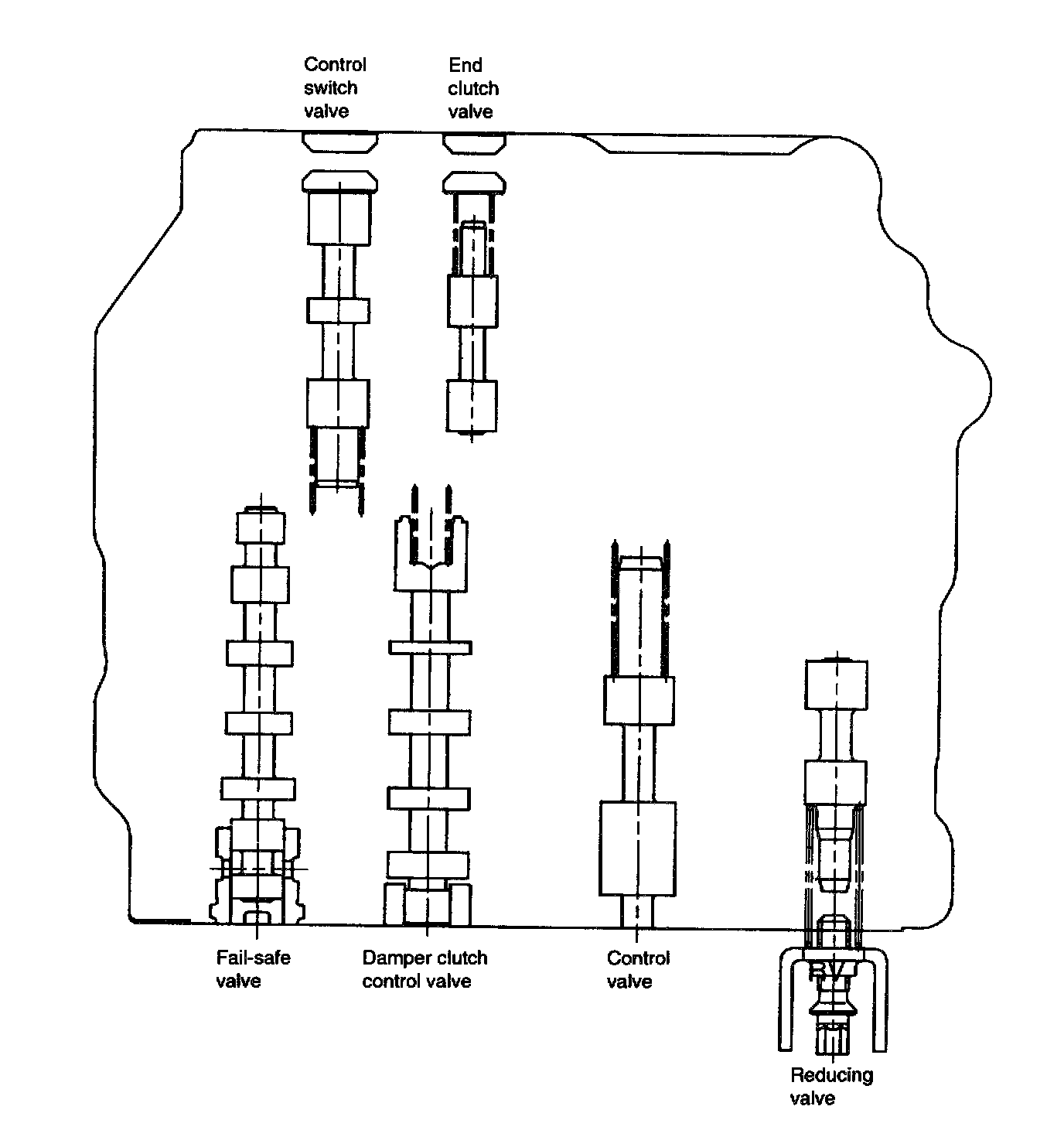

Lower Valve Body
KICKDOWN SERVO
SPEEDOMETER DRIVEN GEAR
