Fluid Diagrams

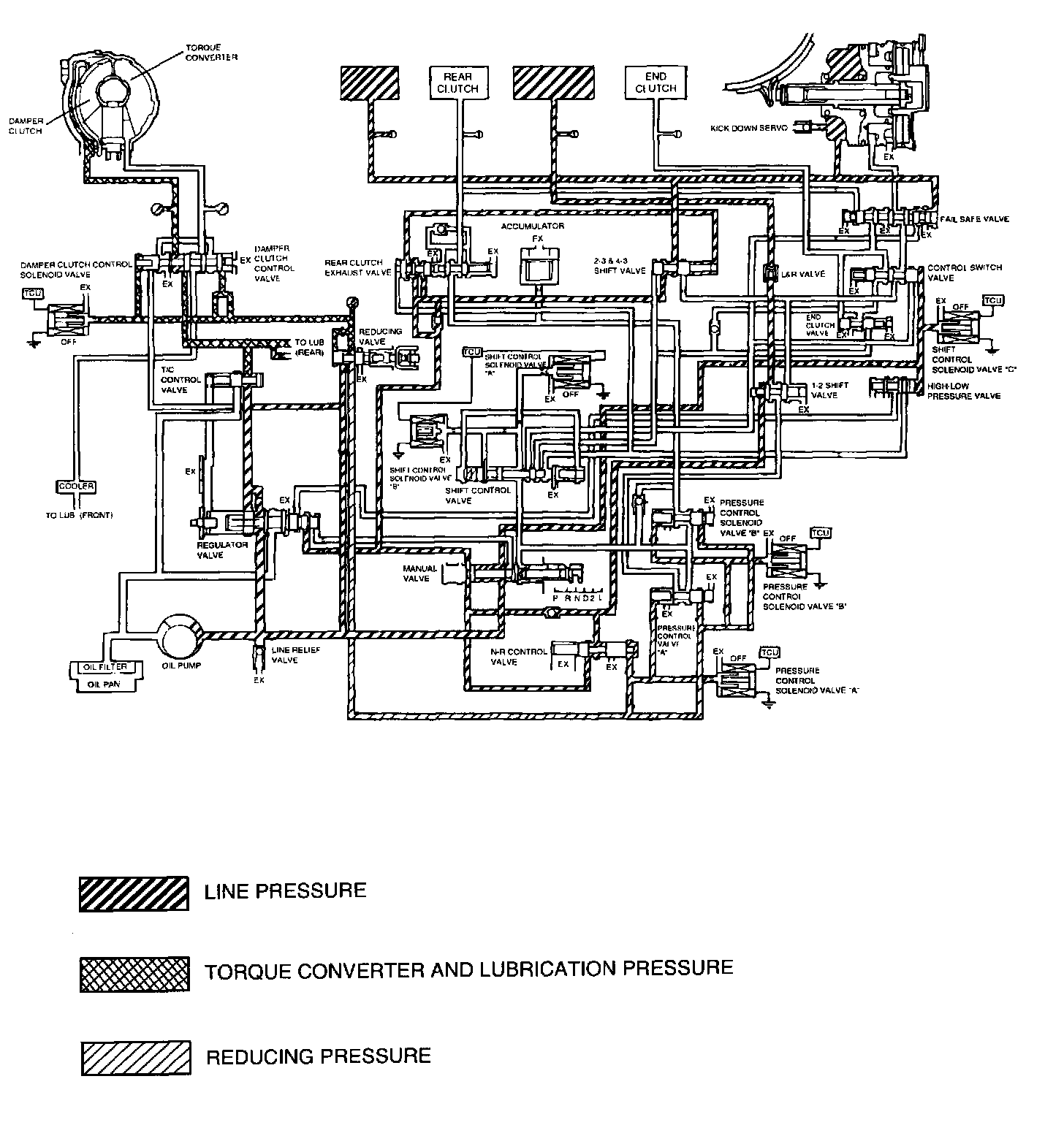

NEUTRAL & PARKING

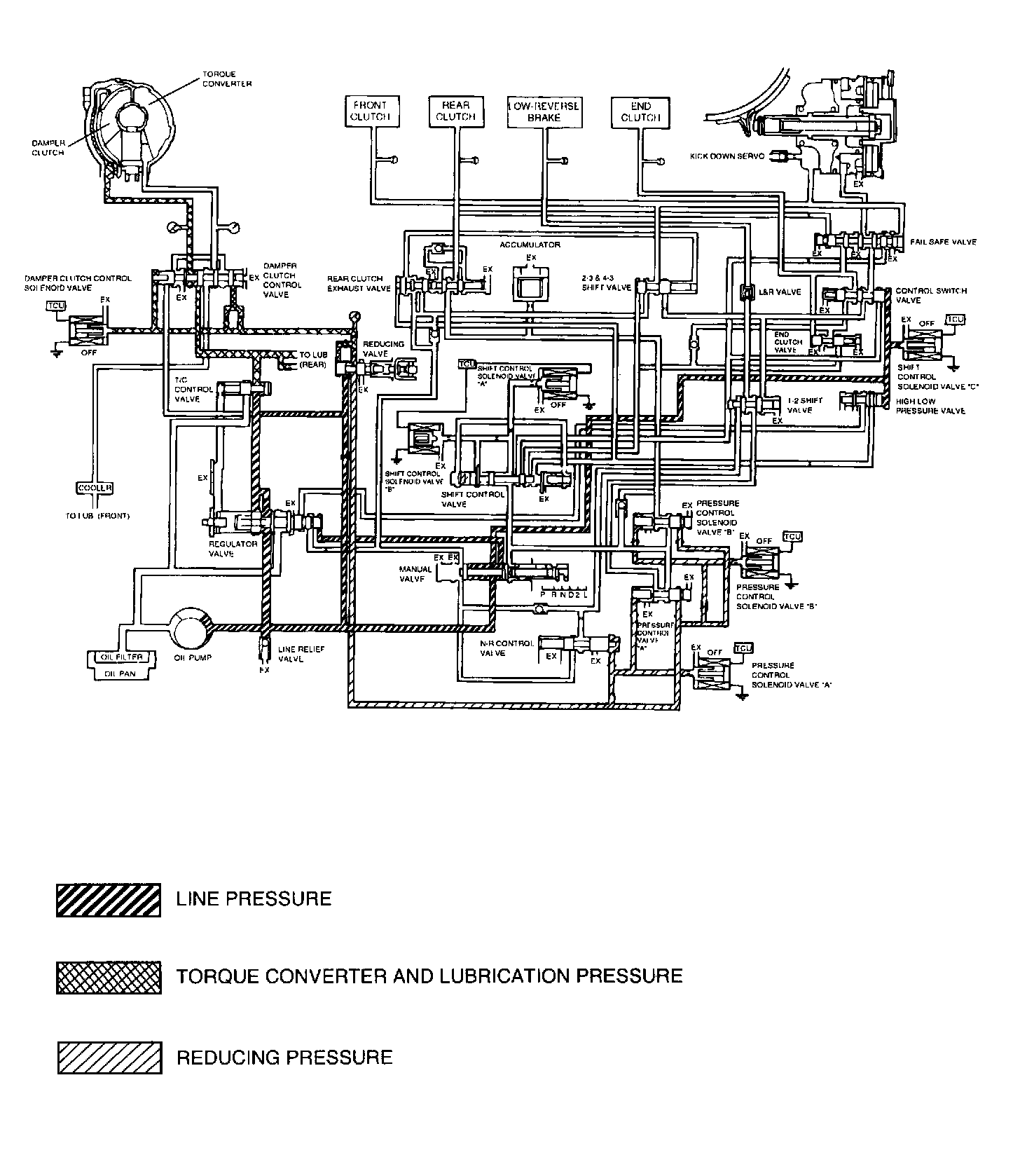

DRIVE (FIRST)

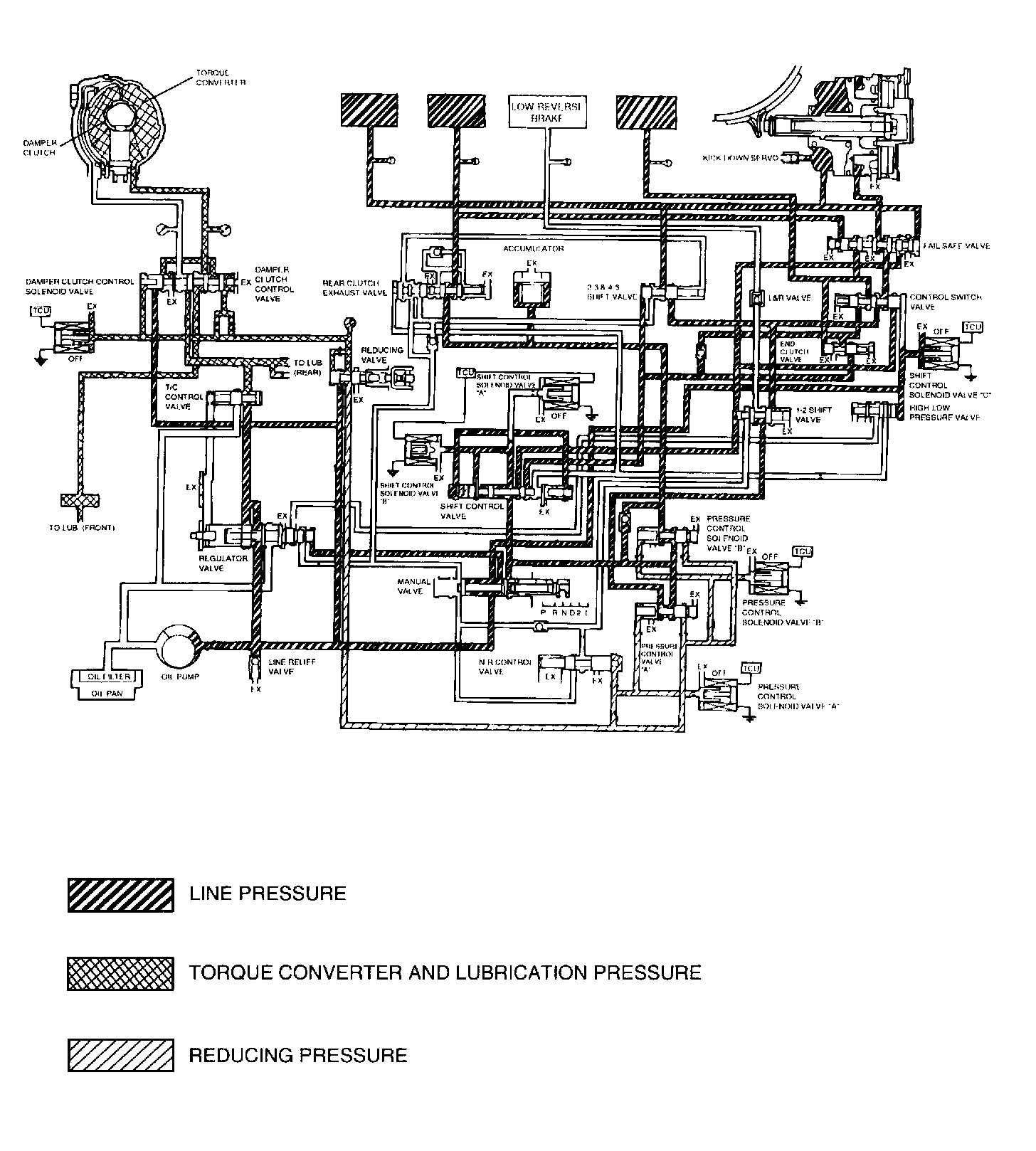

DRIVE (SECOND)

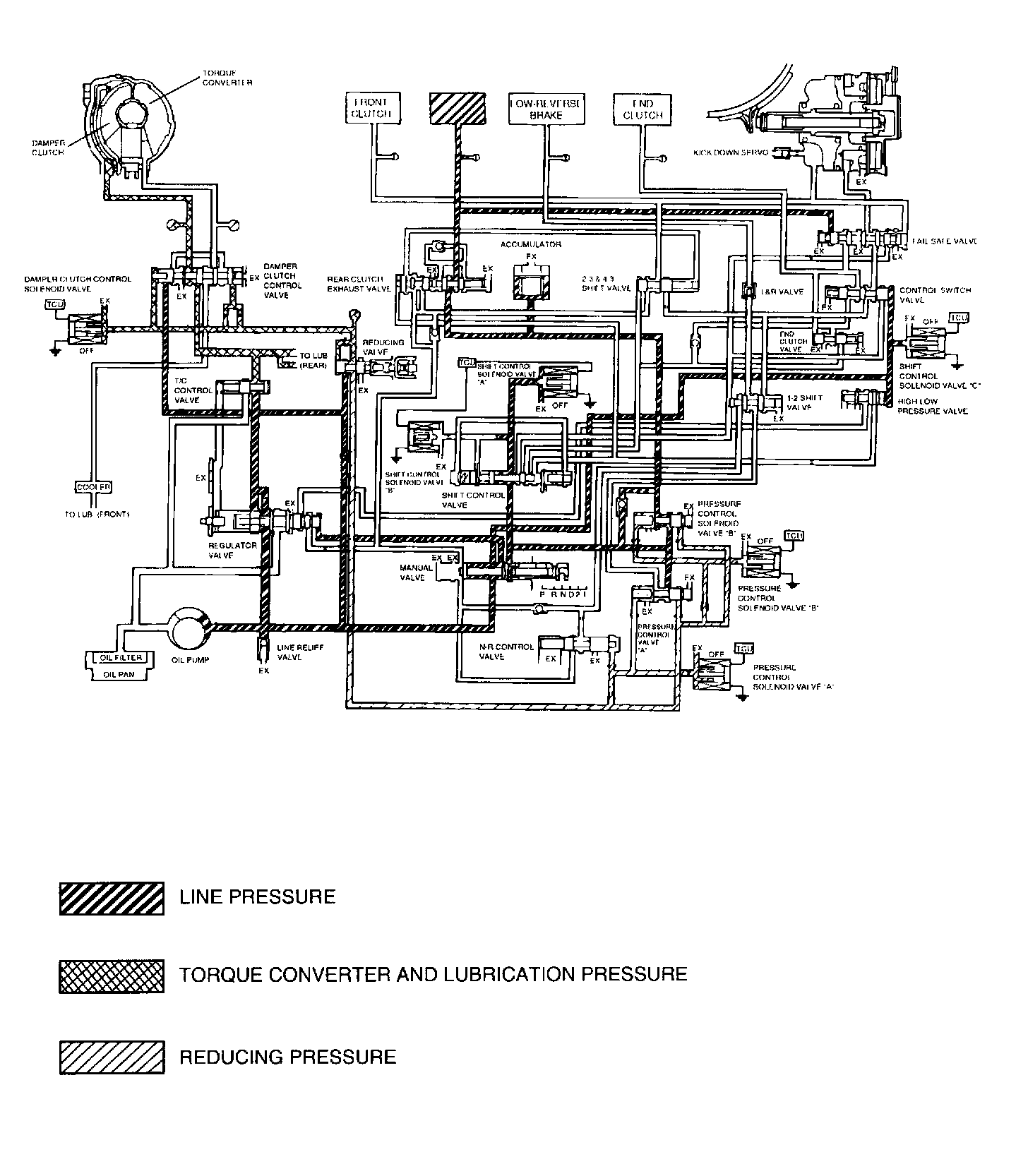

DRIVE (THIRD)

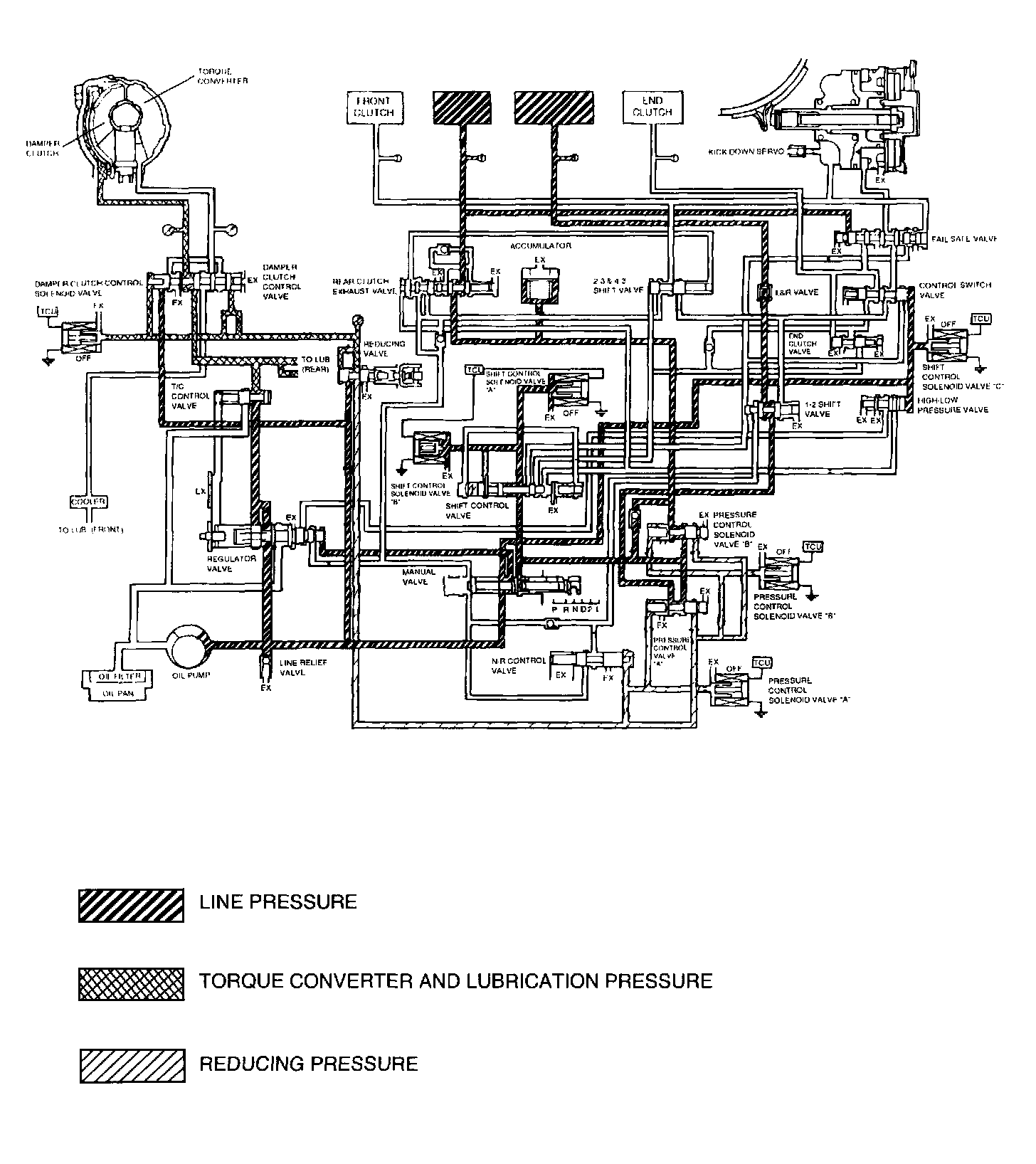

DRIVE (FOURTH)





LOCK





REVERSE
