Electrical Diagrams

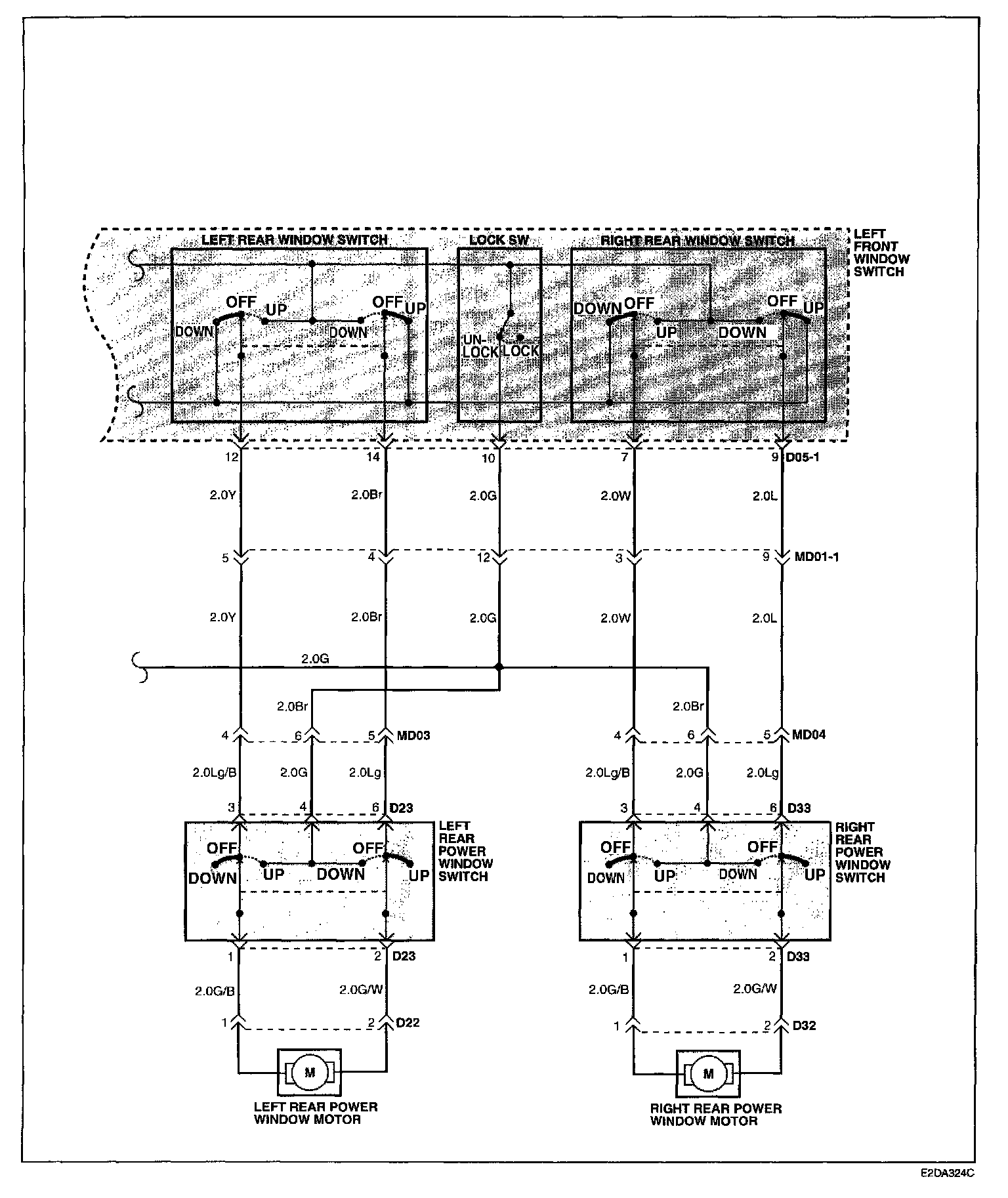

Part 1 Of 3:

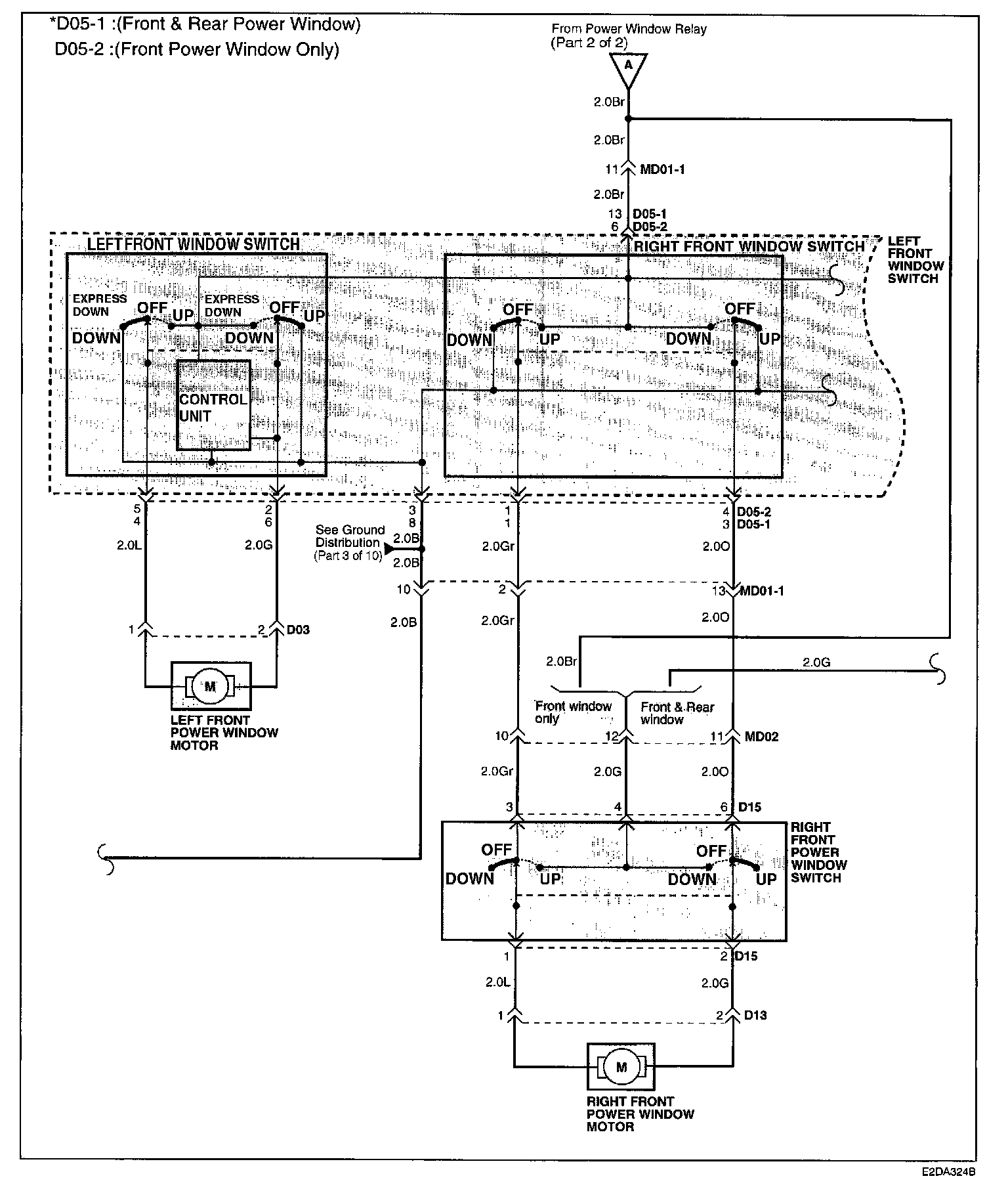

Part 2 Of 3:

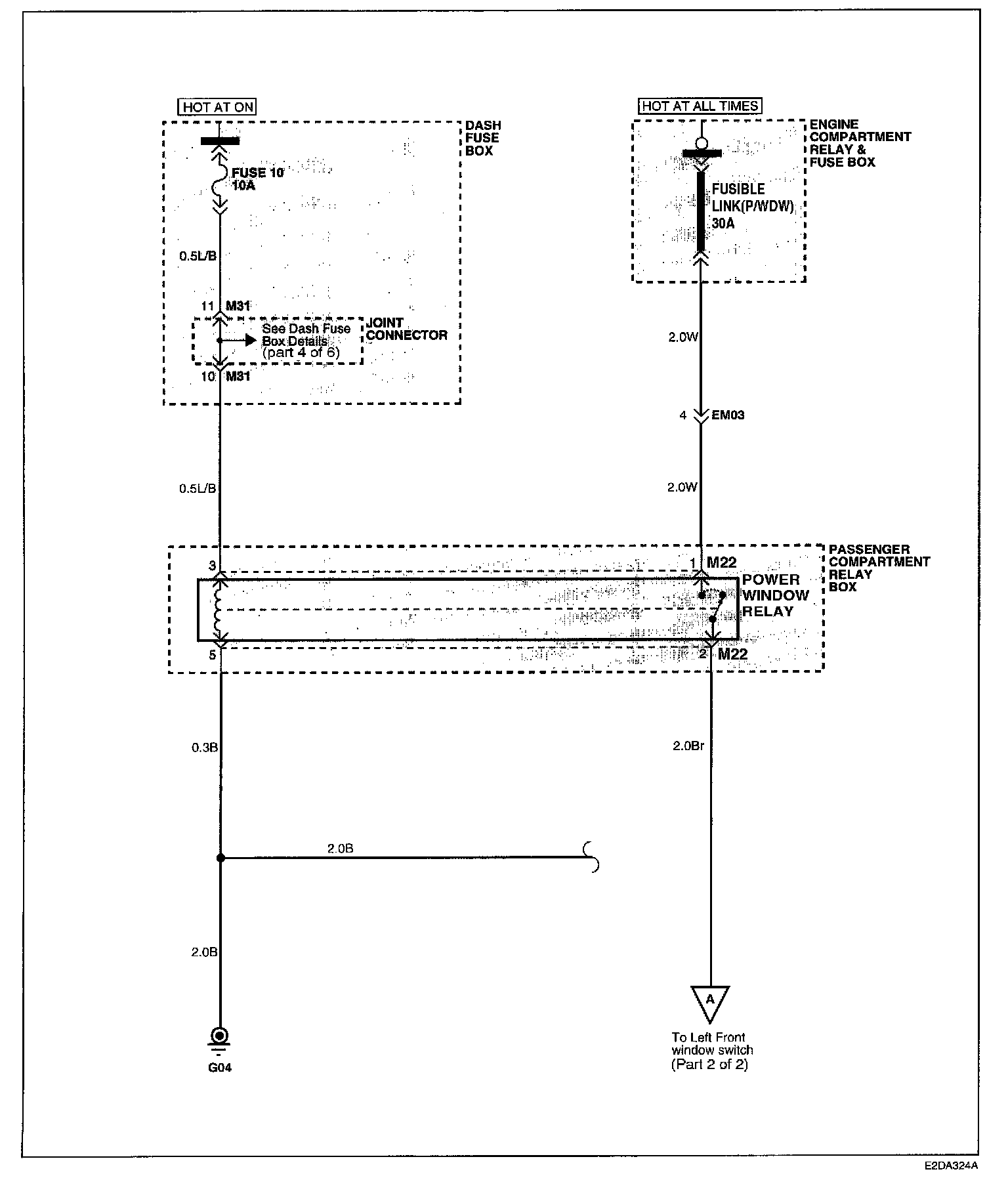

Part 3 Of 3:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
