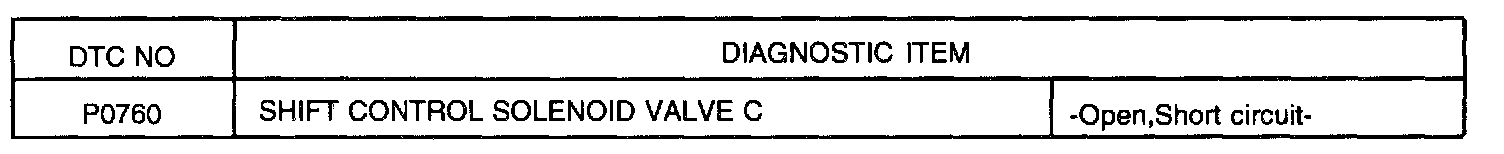

P0760

DESCRIPTION
- Control fluid pressure that is acting on control switch valve (CSV) through ON/OFF signals from TCM to control shift.
- If resistance value of SCSV-C is high, P0760 is output. (open circuit).





TROUBLESHOOTING GUIDE





CIRCUIT DIAGRAM





TROUBLESHOOTING FLOW

Note: See TSBs for additional information.
