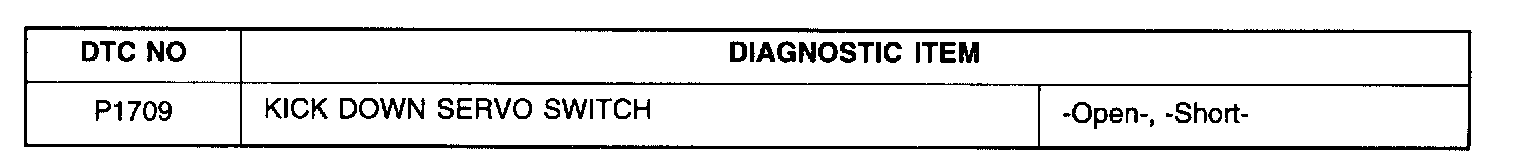

P1709

DESCRIPTION
- Detect the point of time when K/D band starts operation to control fluid pressure when K/D band operates.

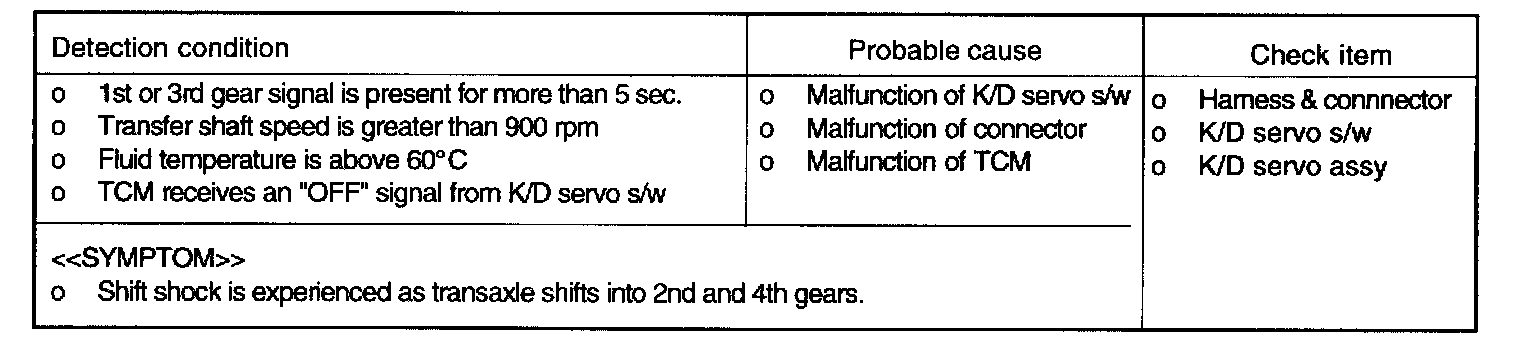

TROUBLESHOOTING GUIDE

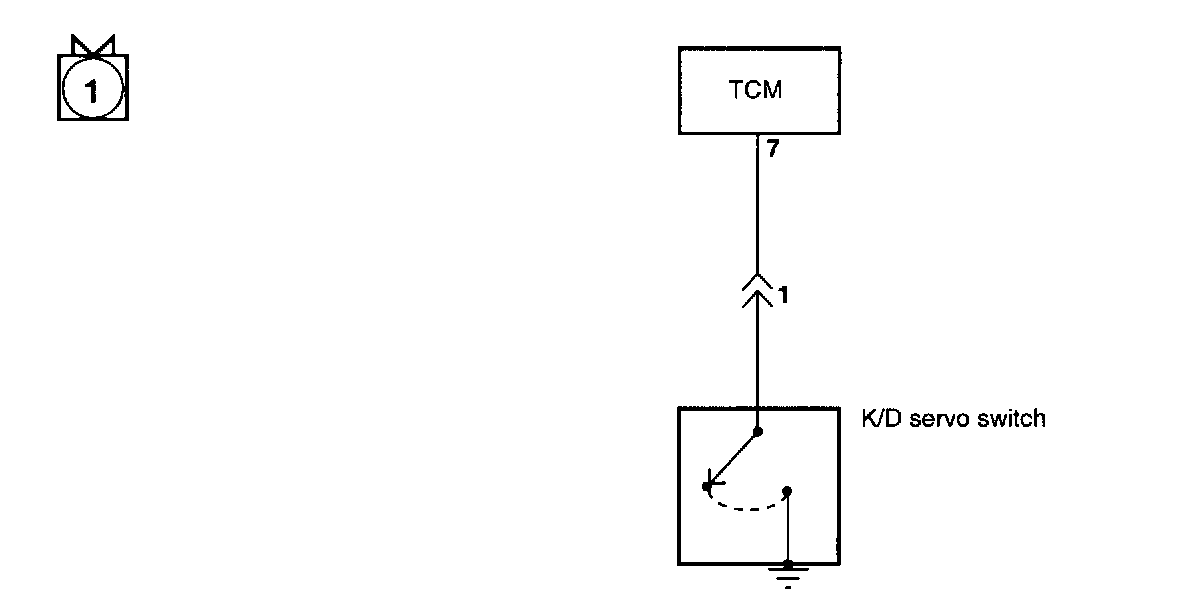

CIRCUIT DIAGRAM





TROUBLESHOOTING FLOW

Note: See TSBs for additional information.
