Mirrors: Service and Repair

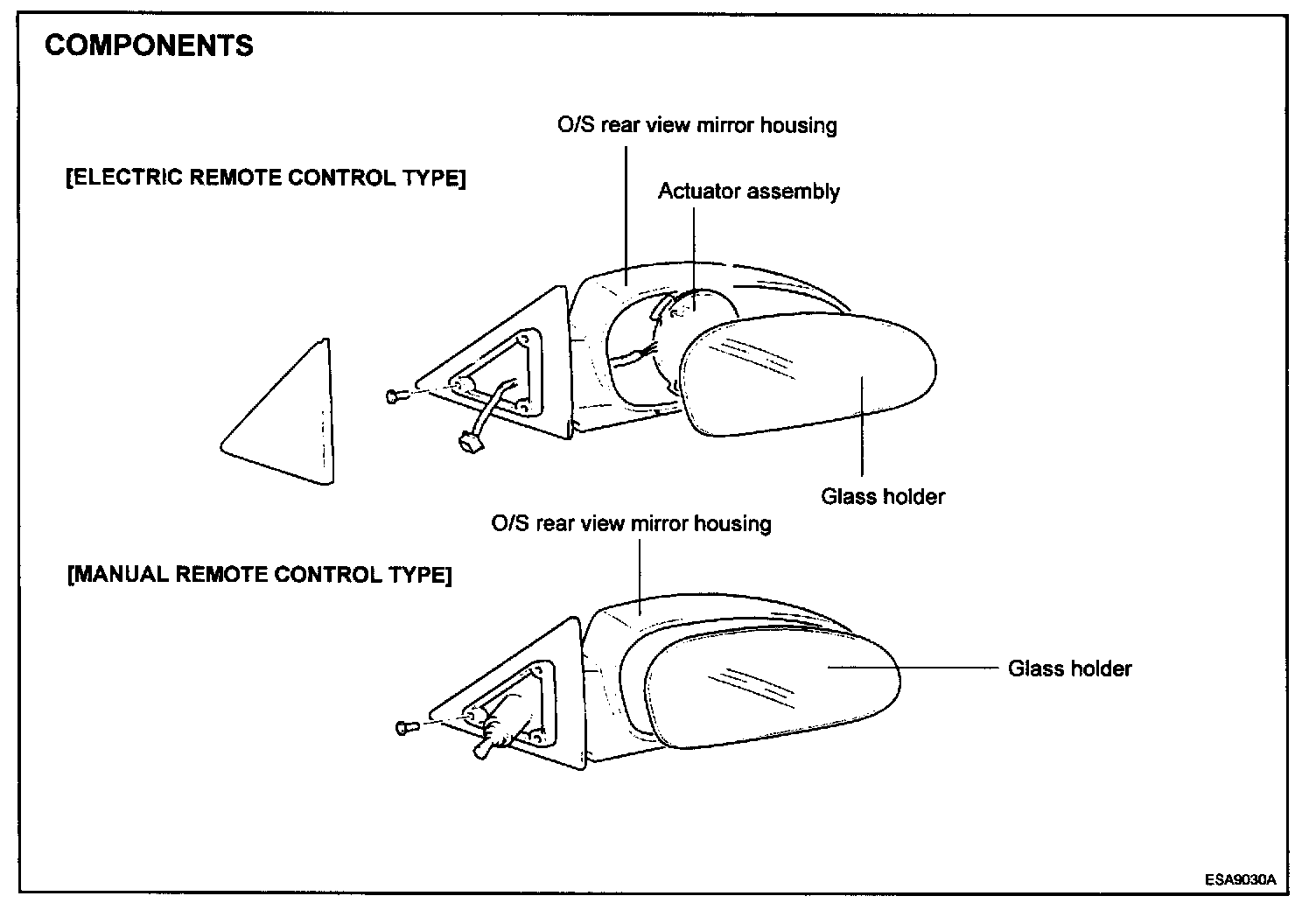

OUTSIDE REARVIEW MIRROR

Outside Rearview Mirror:

REMOVAL AND INSTALLATION

CAUTION: Wear gloves to remove and install the mirror holder.

1. Insert a flat tip (-) screwdriver between the outside rearview mirror holder and mirror assembly.






CAUTION: When prying with a flat tip screwdriver, wrap it with a shop towel to prevent damage.

2. Remove the outside rearview mirror actuator from outside rearview mirror housing.






3. Installation is the reverse of removal.
