Grounds, Connectors G

G01:

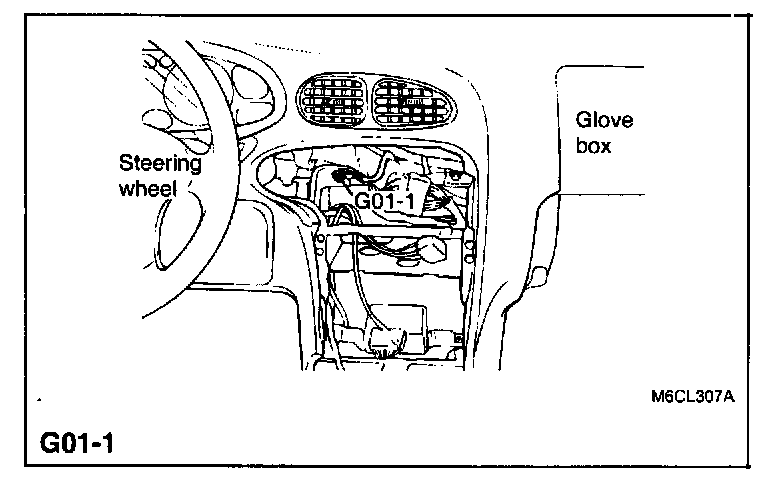

G01-1:



G02:

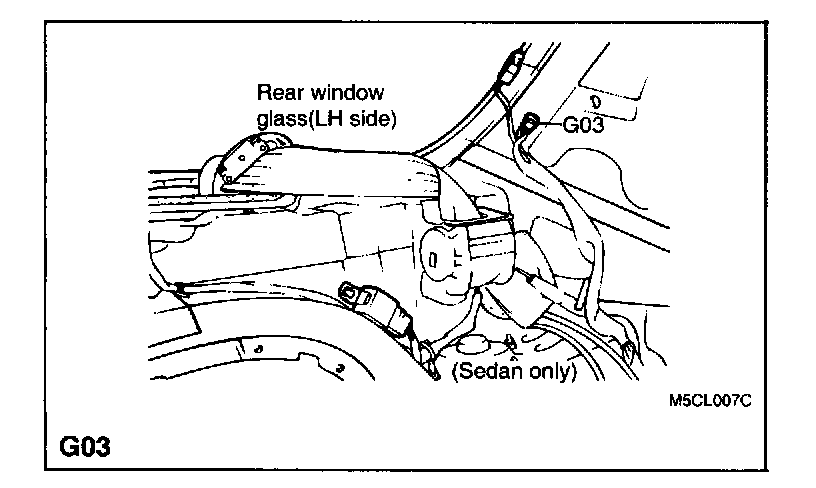

G03:

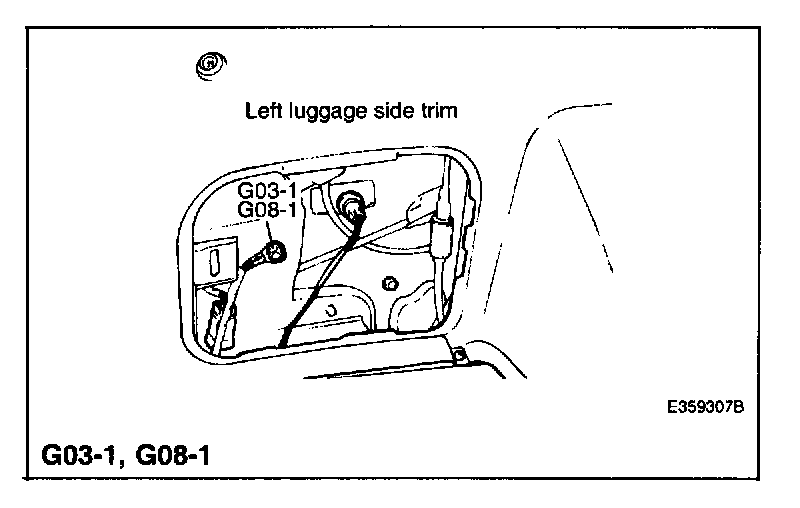

G03-1,G08-1:

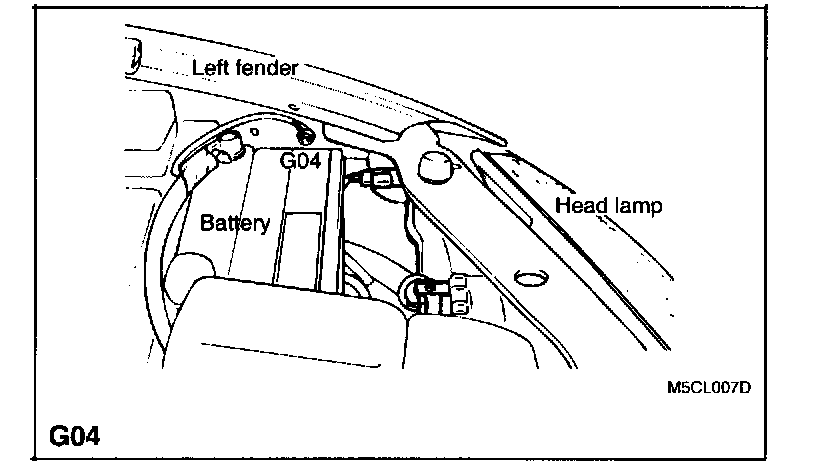

G04:



G05:

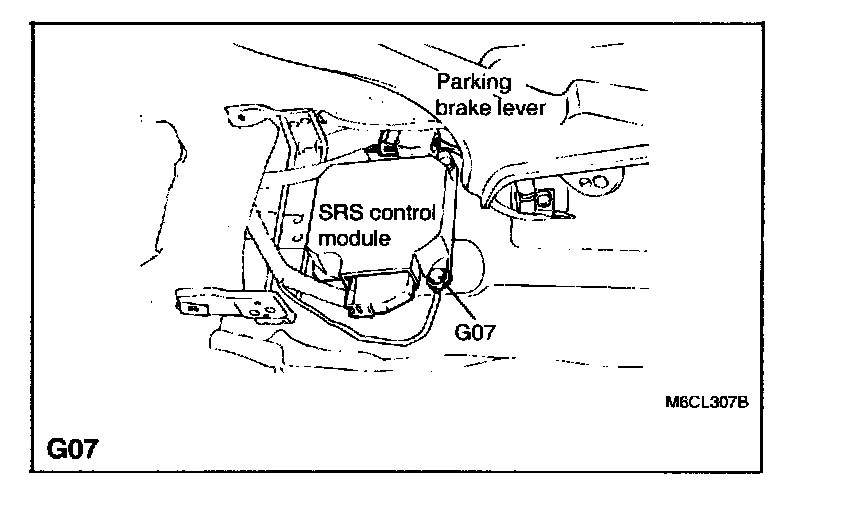

G07:

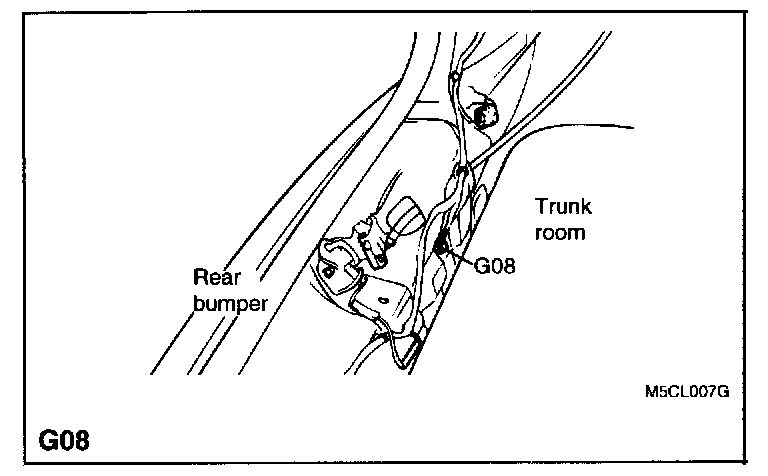

G08:

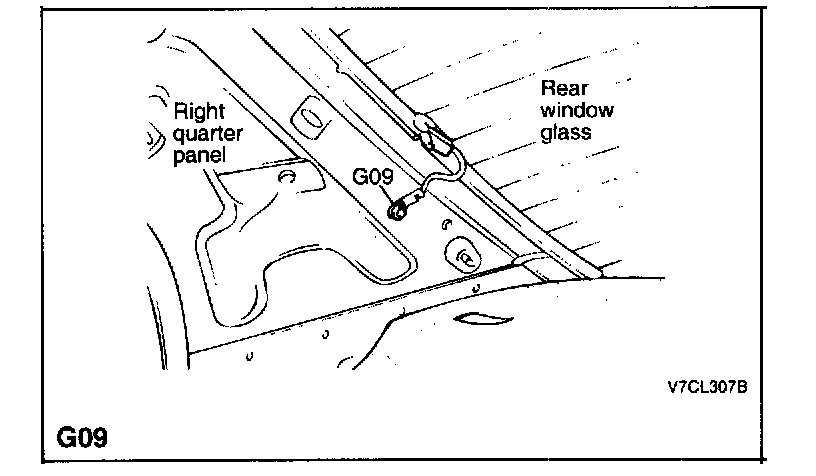

G09:

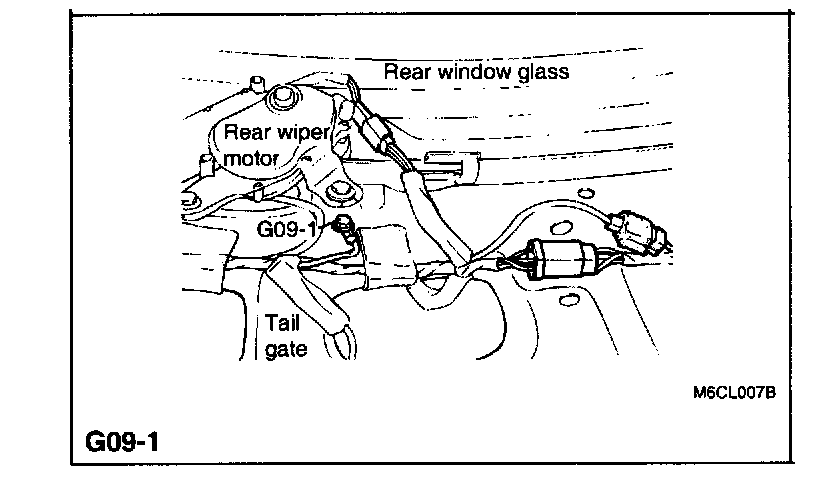

G09-1:



G10,G11,G12:



G15:
