Antilock Brakes / Traction Control Systems

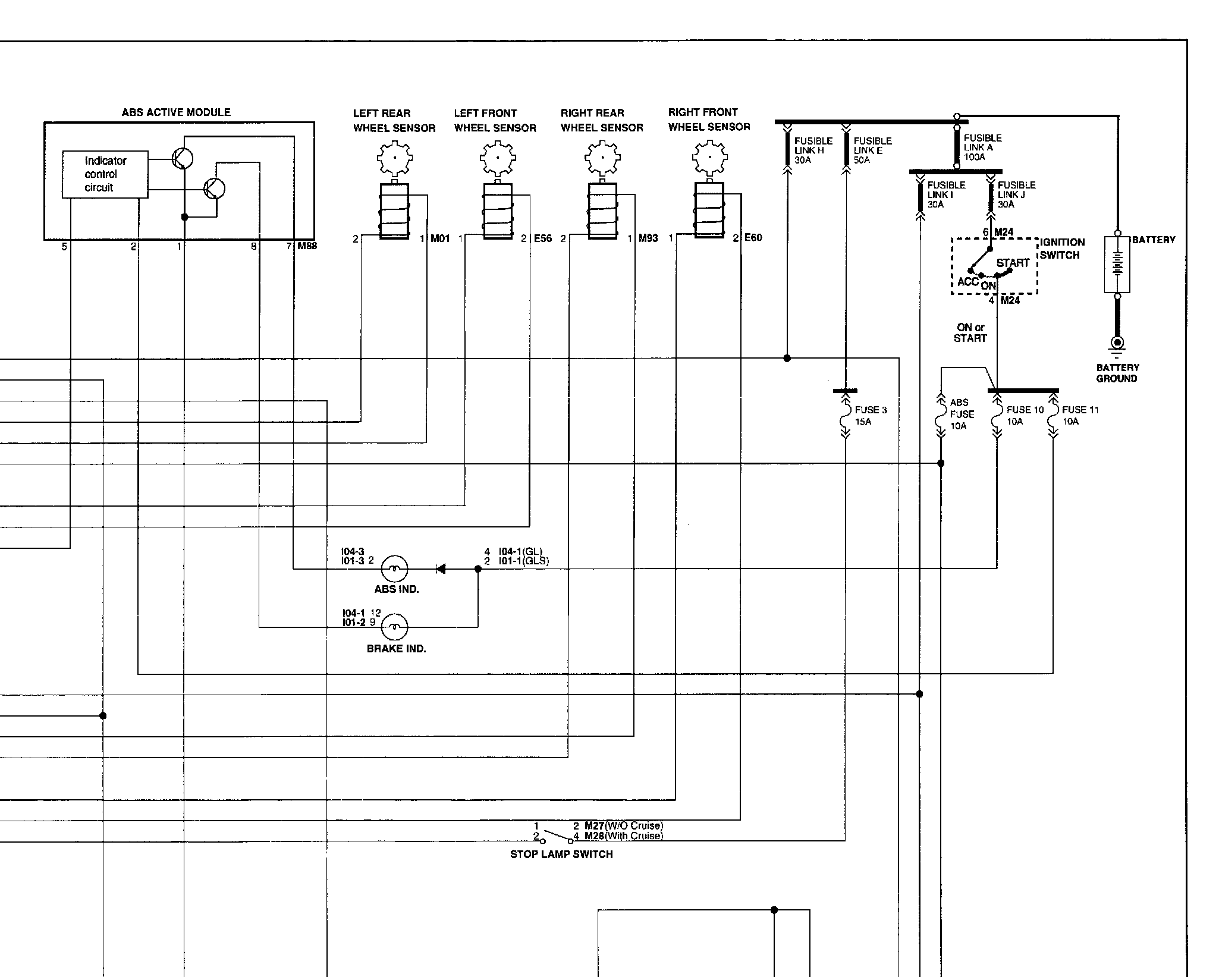

Image SD - 68:

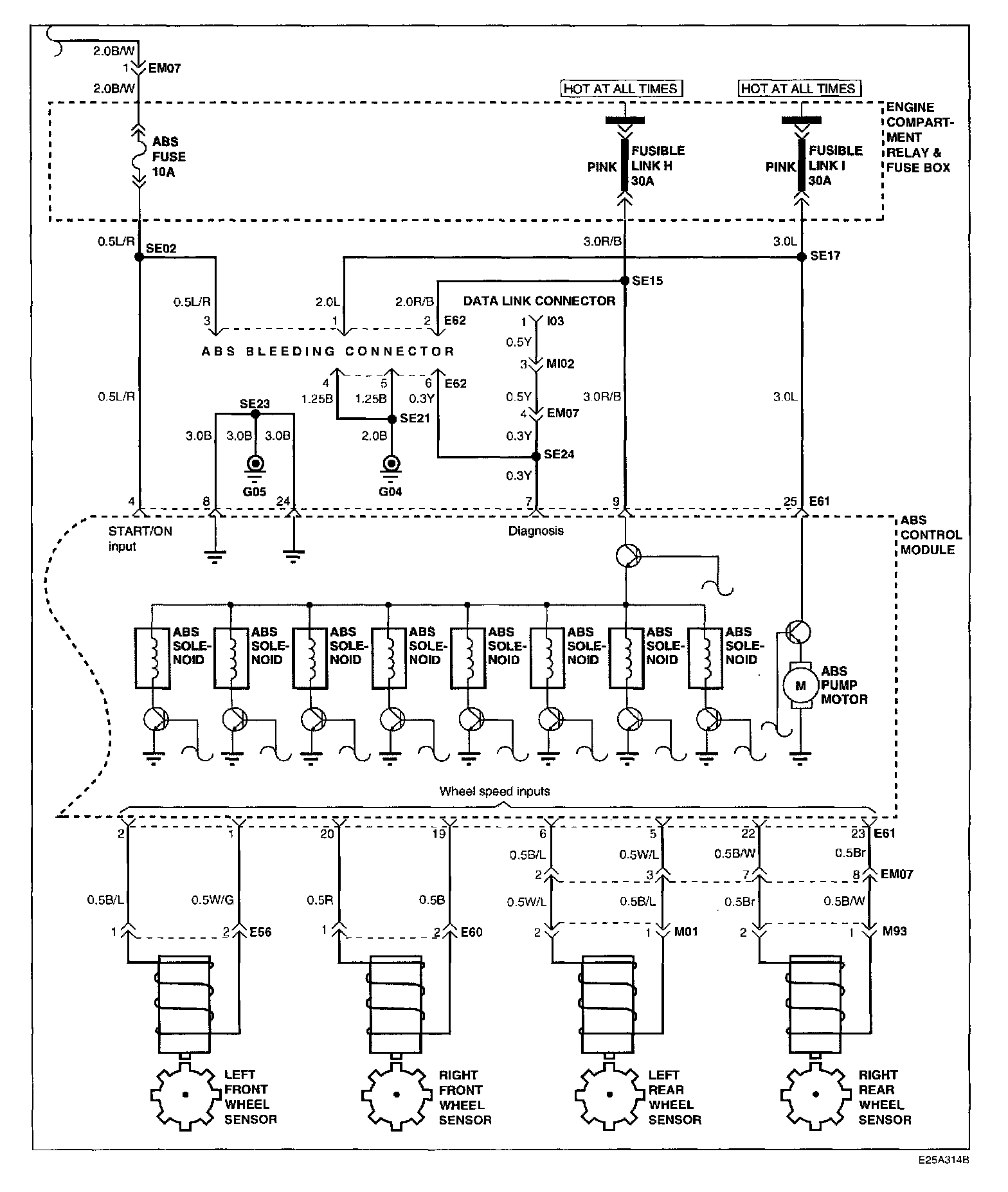

Image SD - 69:




�v�N��N���NImage SD - 70-1:

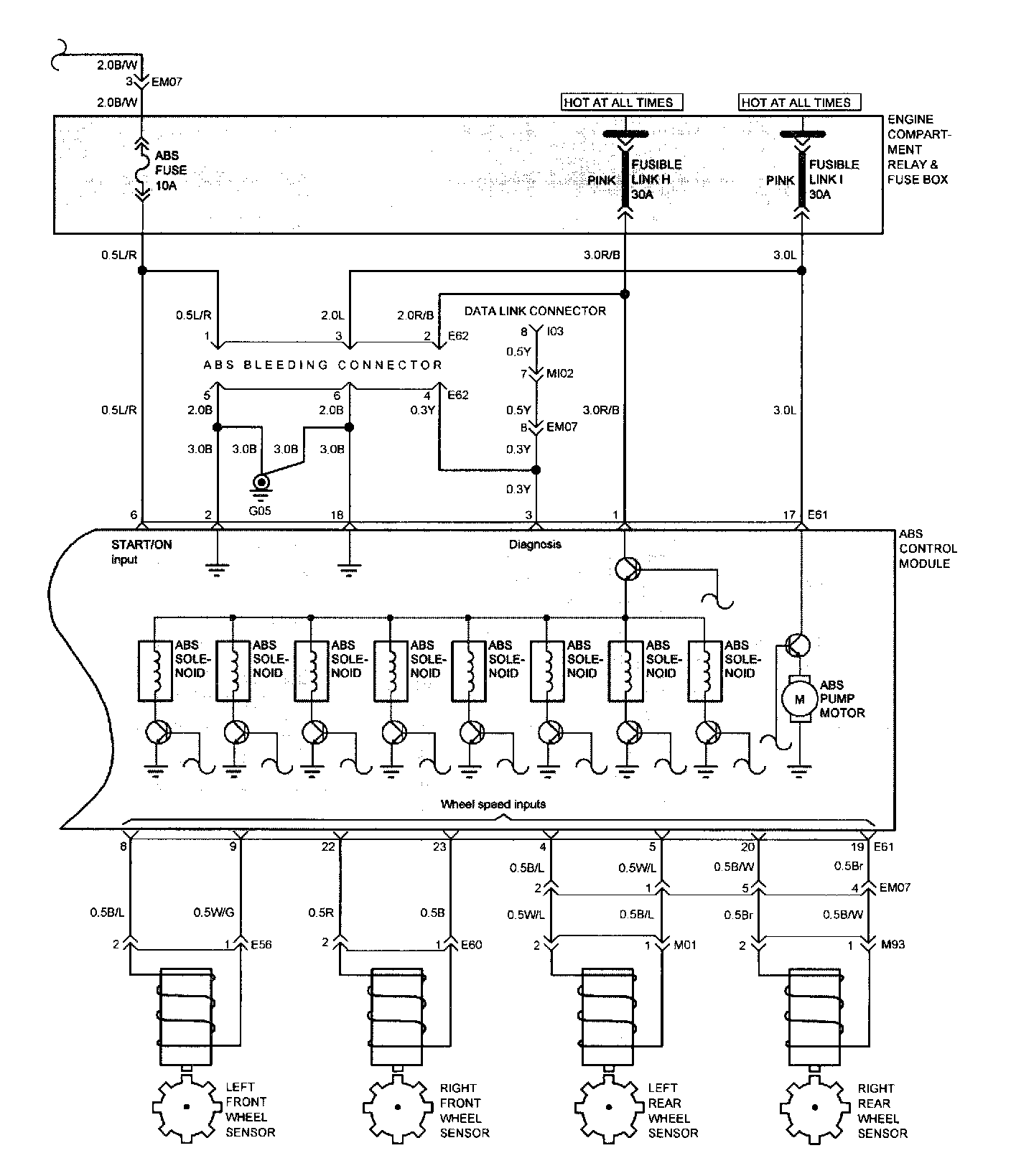

Part 1 Of 2:

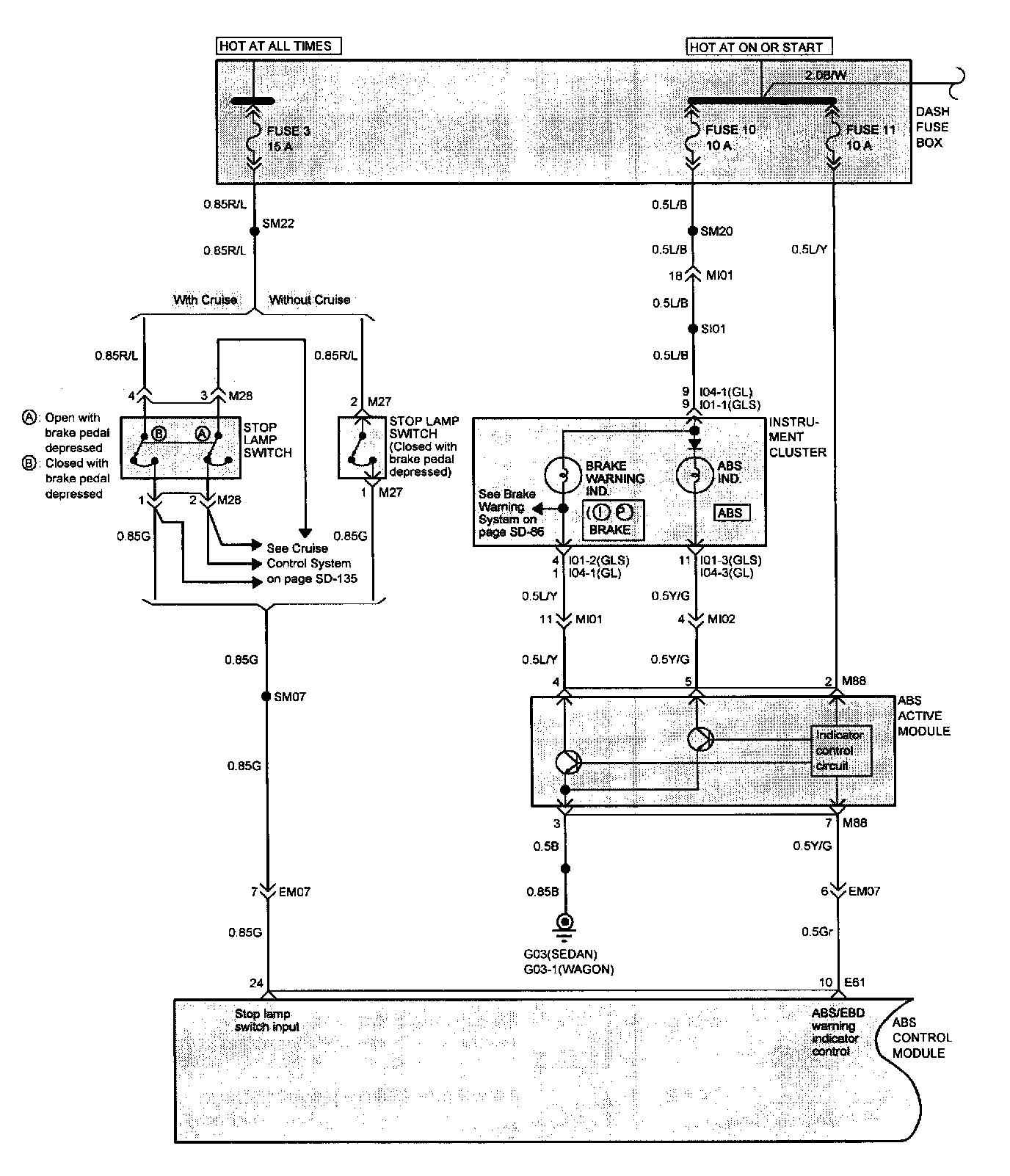

Part 2 Of 2:





SCHEMATIC DIAGRAM

Connector Configurations Are Found In The Diagram Section (Elantra) Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section (Elantra) Of Vehicle.
Locations
