Door Harness

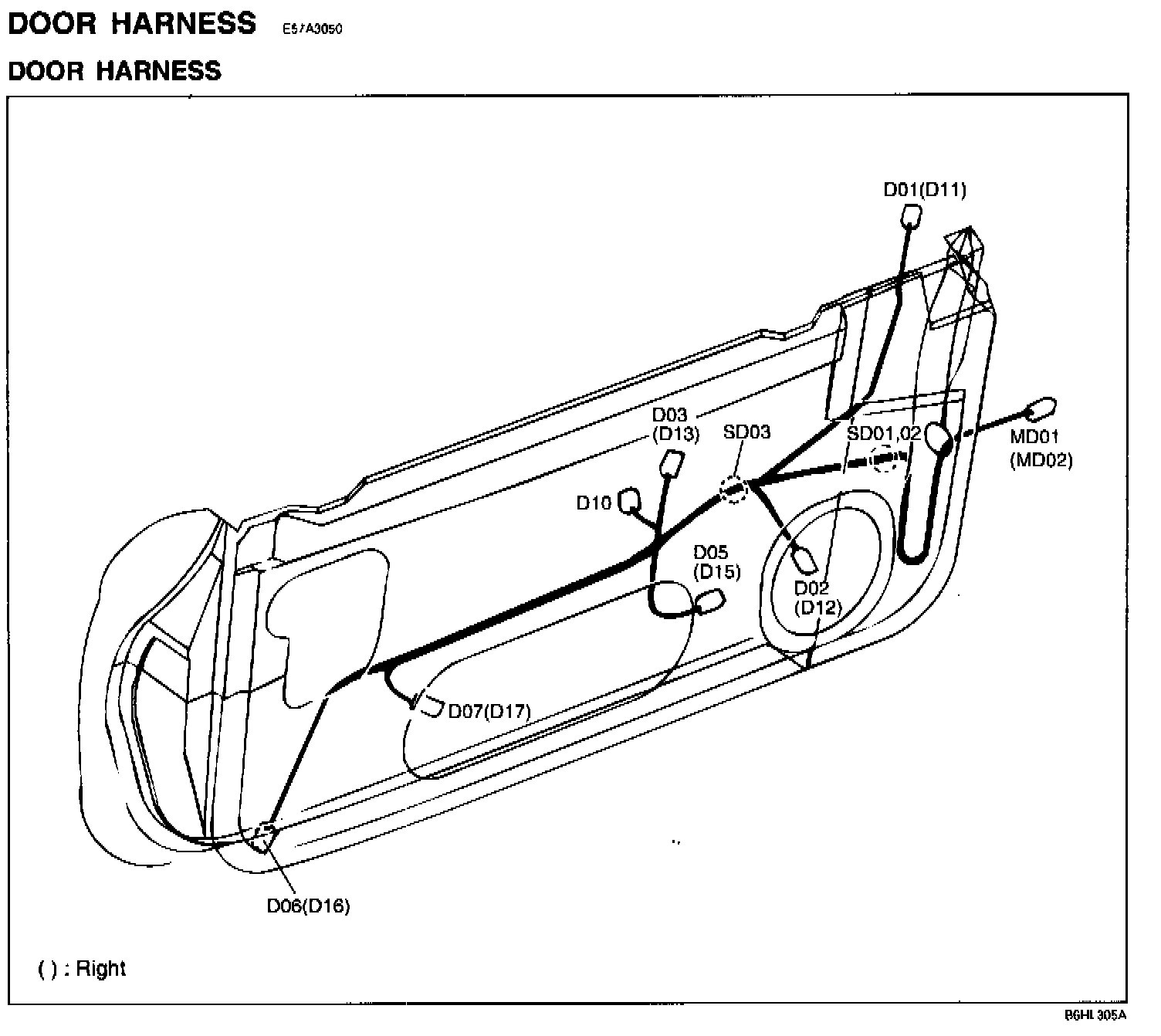

Connector Location (Front):

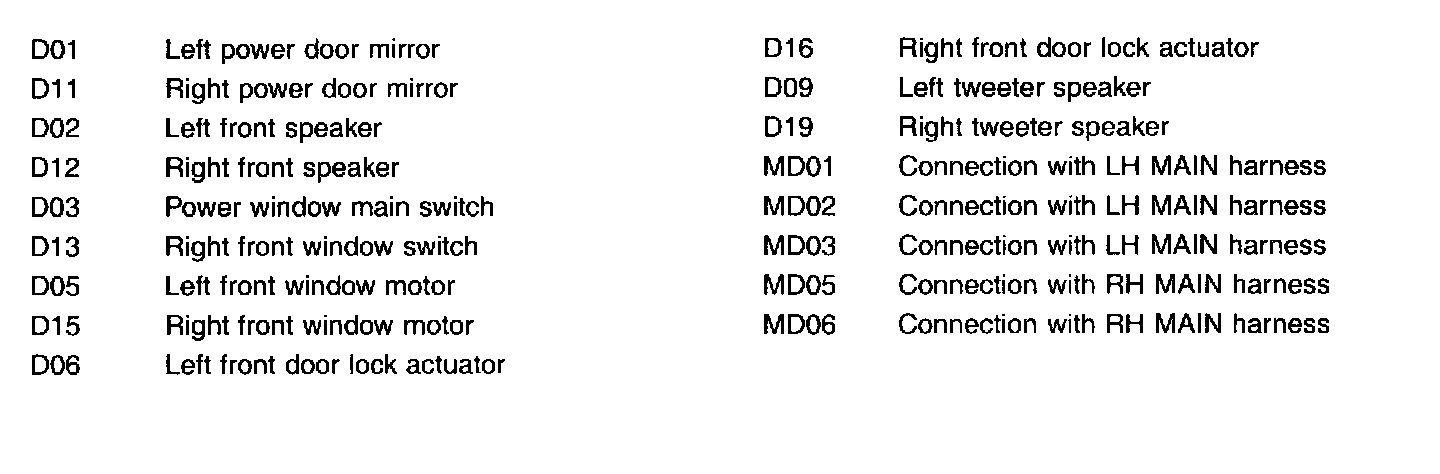

Connector Index (Front):

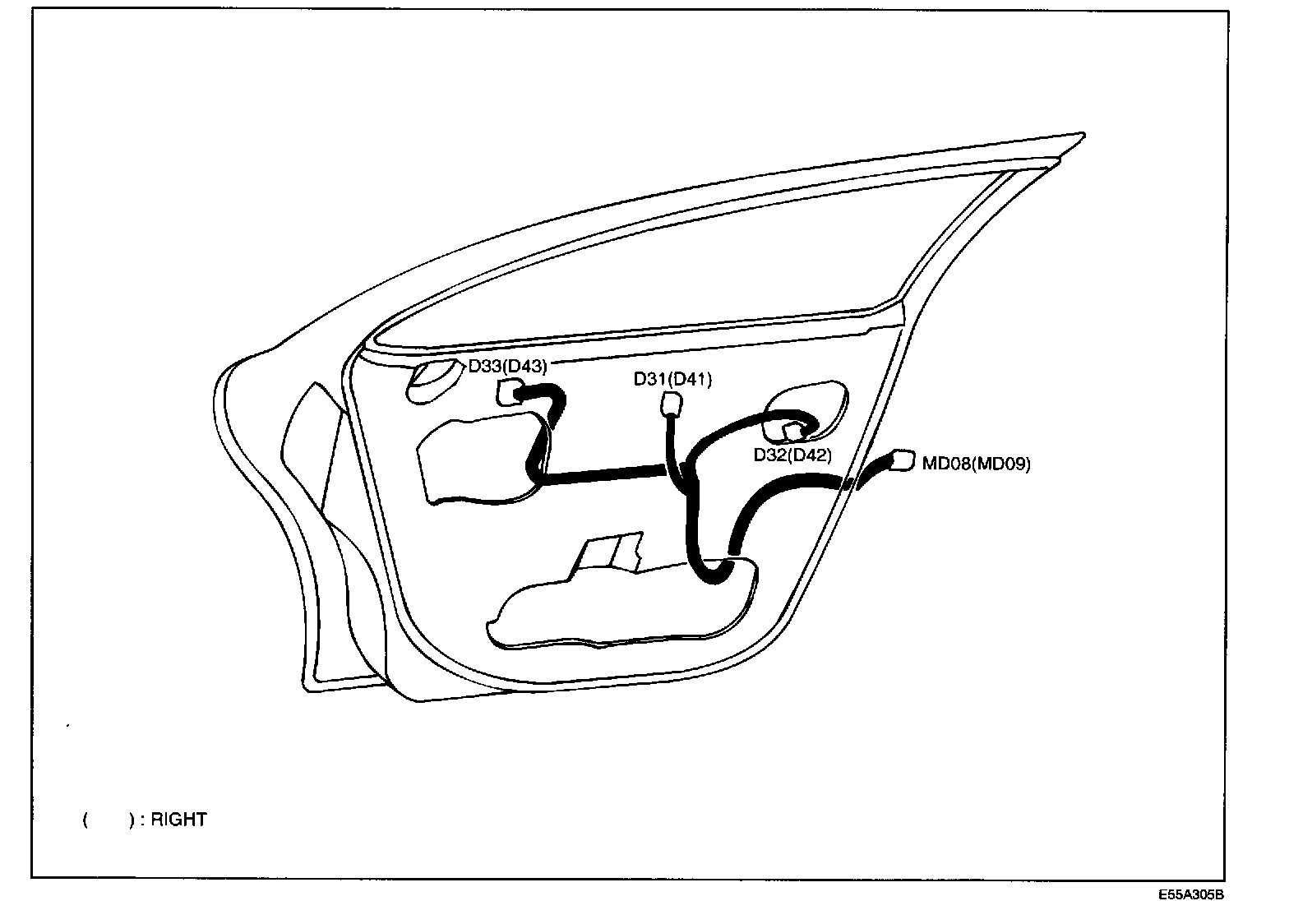

Connector Location (Rear):

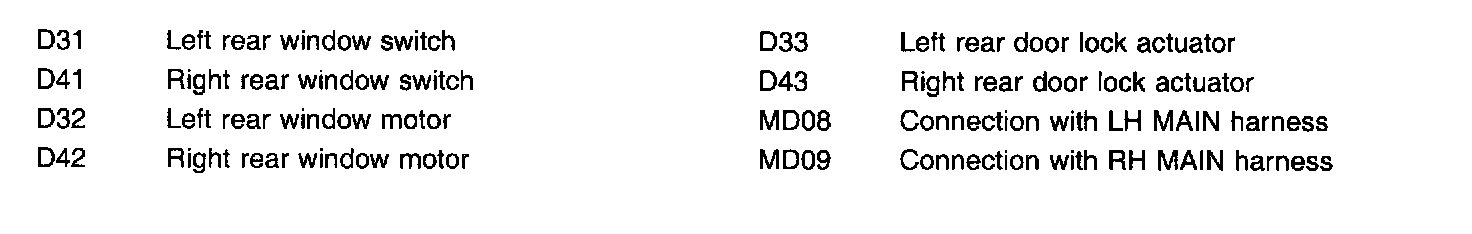

Connector Index (Rear):
