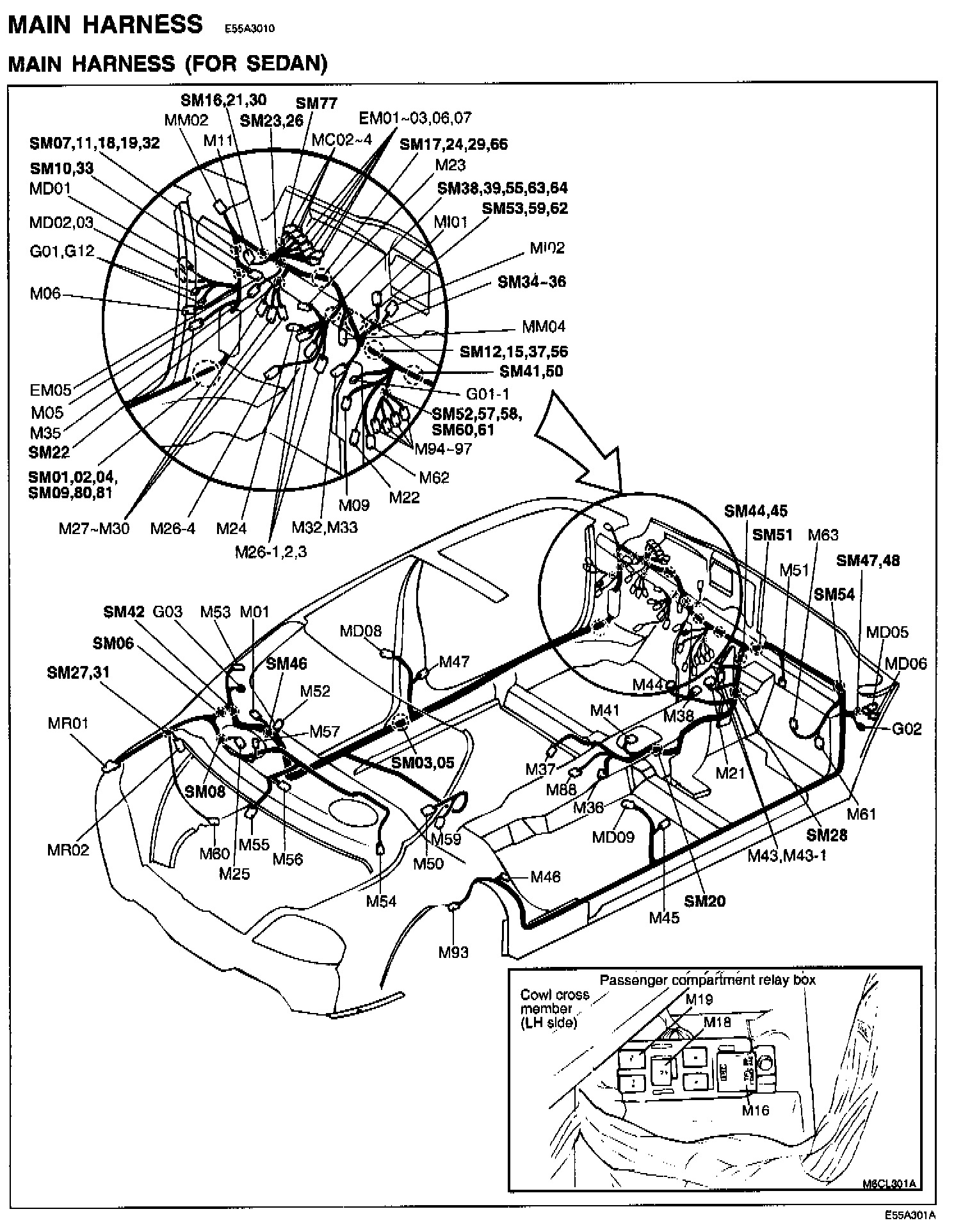

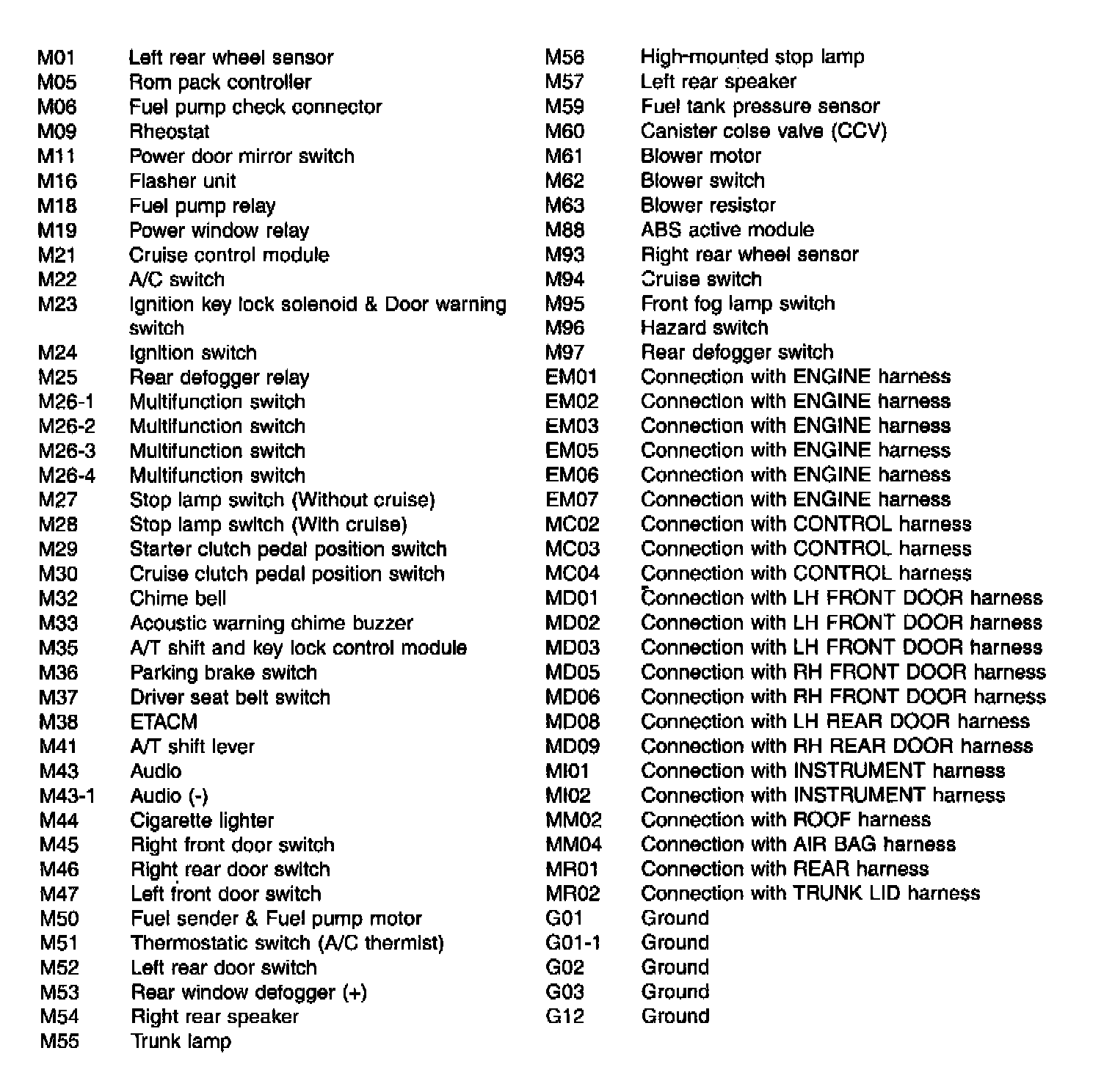

Main Wiring Harness

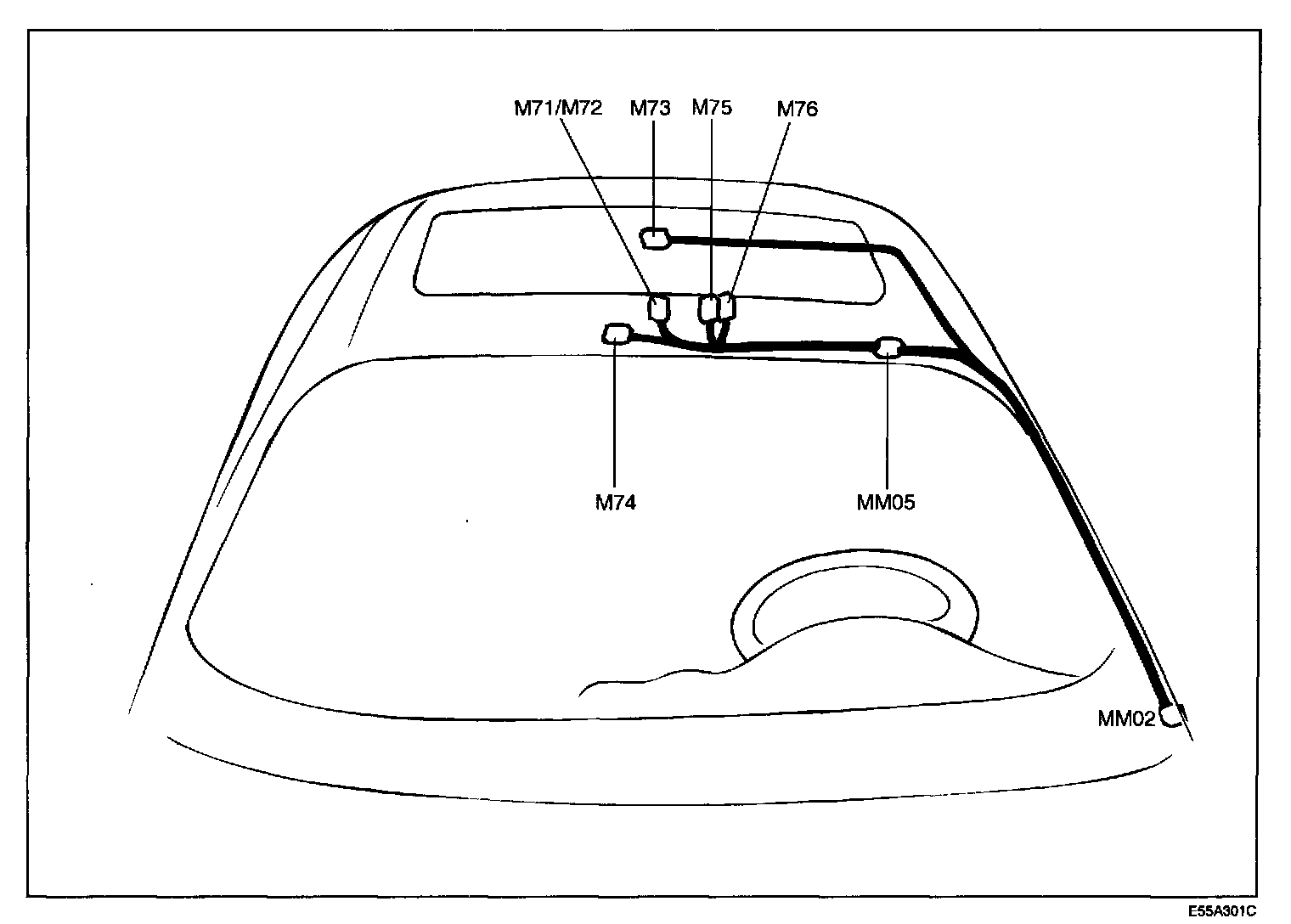

Connector Location (Roof):

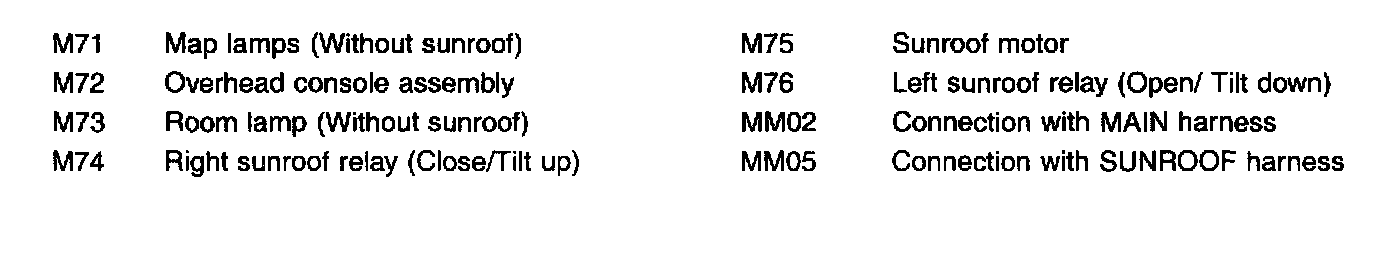

Connector Index (Roof):

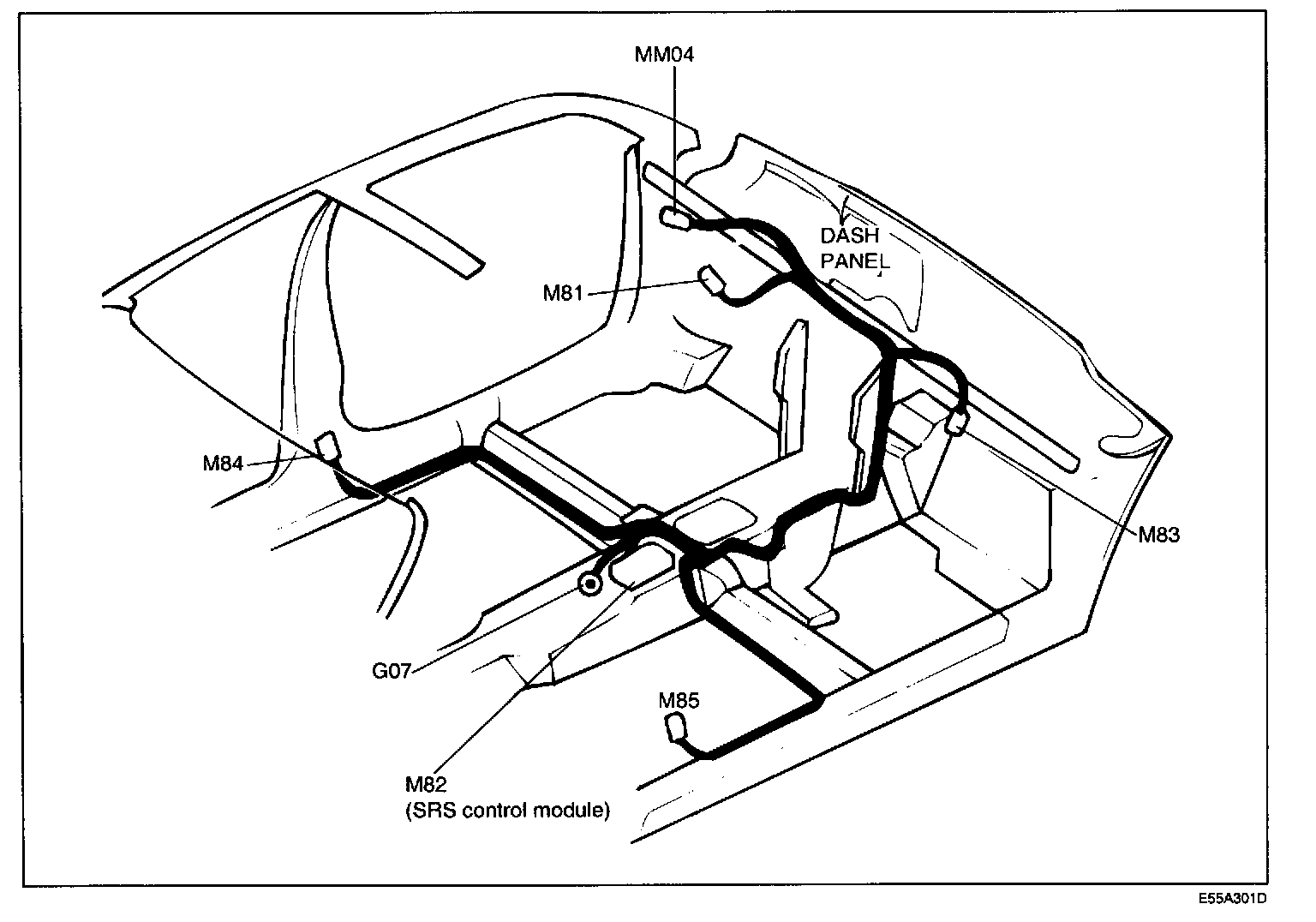

Connector Location (Air Bag):



Connector Index (Air Bag):
