Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2000
>>
Elantra GLS Sedan L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Rear Wiring Harness
Rear Wiring Harness

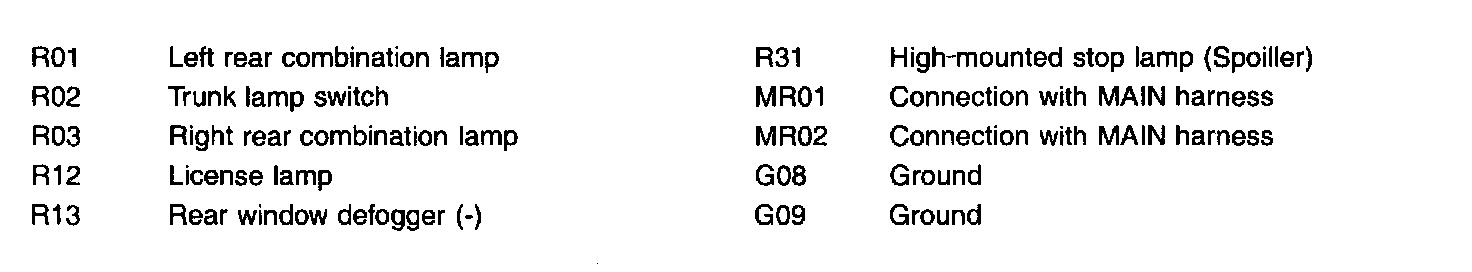

Connector Index:

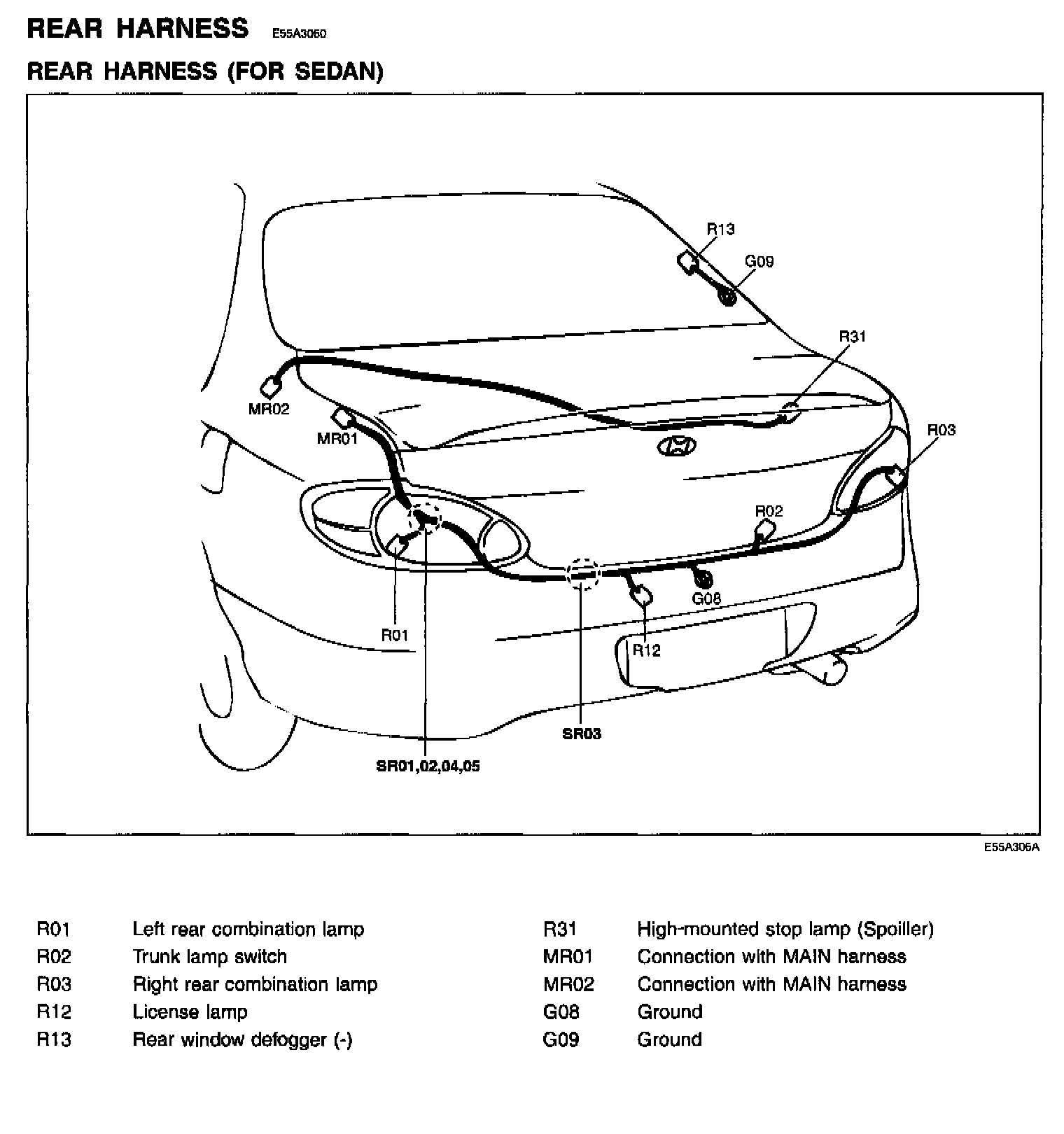

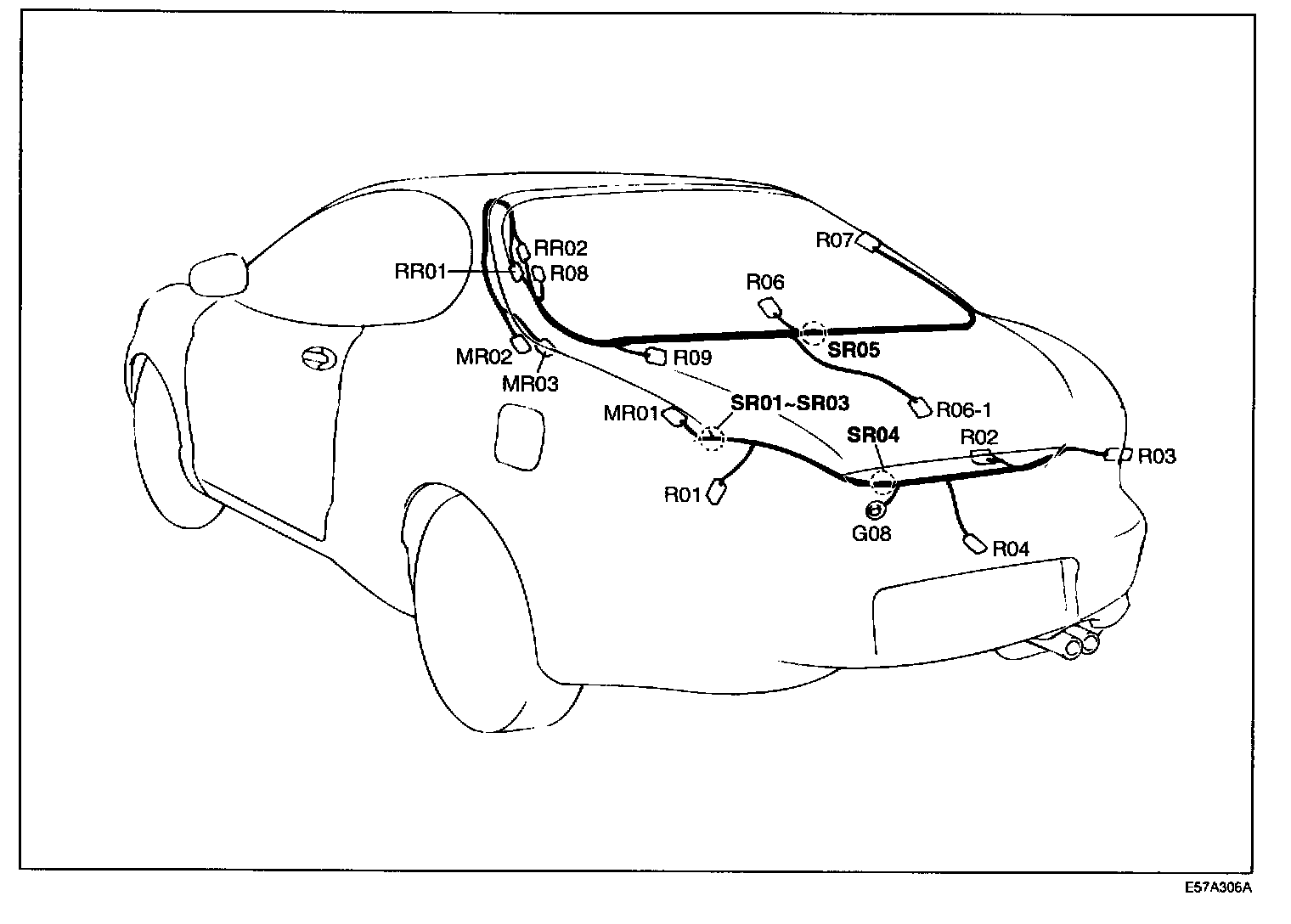

Connector Location (Luggage Room And Tail Gate):
