Ambient Temperature Sensor / Switch HVAC: Description and Operation

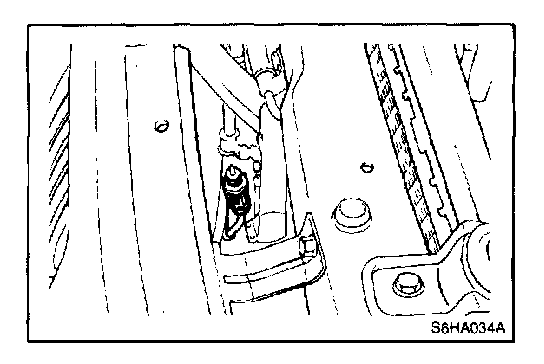

The ambient sensor is located in front of the condenser fan shroud.

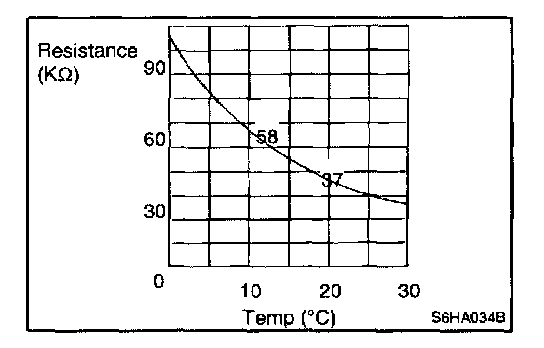

The sensor contains a thermistor which measures the temperature of the outside air.
