Rear Seat

Rear Seat:

COMPONENTS

REMOVAL AND INSTALLATION

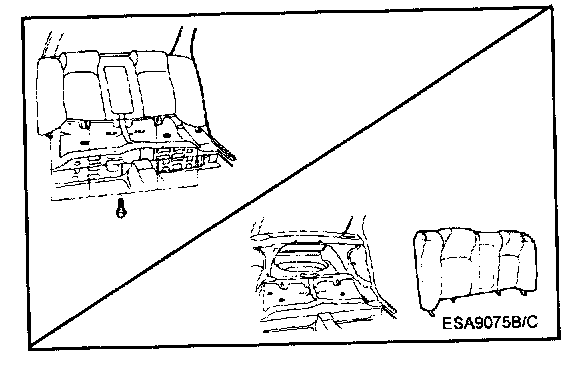

1. Push the rear seat mounting clip and loosen the seat cushion mounting bolts.

Tightening torque
Seat cushion mounting bolts: 1.7 - 2.6 kg.m (12.3 - 18.8 lb.ft)




2. Loosen the rear seat back mounting bolts and raise the rear seat back.

Tightening torque
Seat back mounting bolts: 1.7 - 2.6 kg.m (12.3 - 18.8 lb.ft)

3. Installation is the reverse of removal.

NOTE: Before attaching the rear seat back and seat cushion, make sure there are no twists or kinks in the rear seat belts and center belt.
