Parking Brake System: Adjustments
SERVICE ADJUSTMENT1. After replacing the parking lever. Perform the cable adjustment after pulling parking brake lever 4 - 5 times as full stroke.
2. After replacing the cable.
1. In case of drum brake
Adjust the outer diameter of the drum brake lining to 227.6 - 228.1 mm.
After installing the drum, perform the cable adjustment.
2. In case of D.I.H (Drum In Hat)

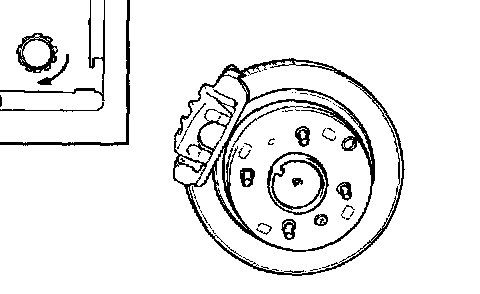

Remove the adjusting hole plug and then turn the adjuster to the direction of the arrow in order not to rotate the disc using a screw driver (flat tip (-)).
Rotate the adjuster as much as 5 notches to the opposite direction of the arrow.
3. After replacing brake lining (Bed-in procedure)
1. Pull the parking lever as much as 4 notches (or 9 kgf).
2. Drive the vehicle about 400 m at the speed of 50 km/h.
3. Stop the vehicle for 2 minutes.
4. Repeat (2) step.
5. Check the stroke of the parking brake.
