C

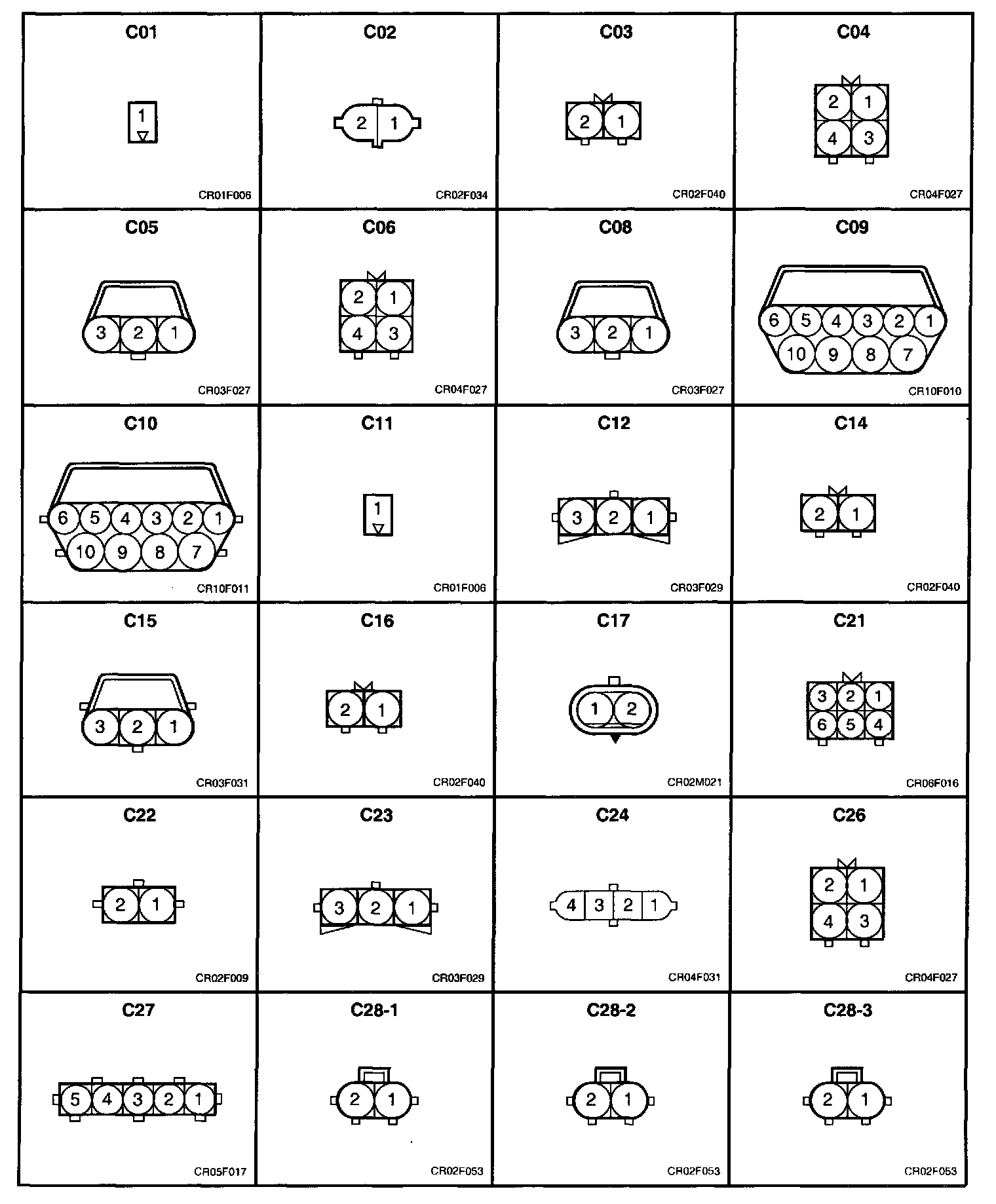

C01 To C27, C28-1 To C28-3:

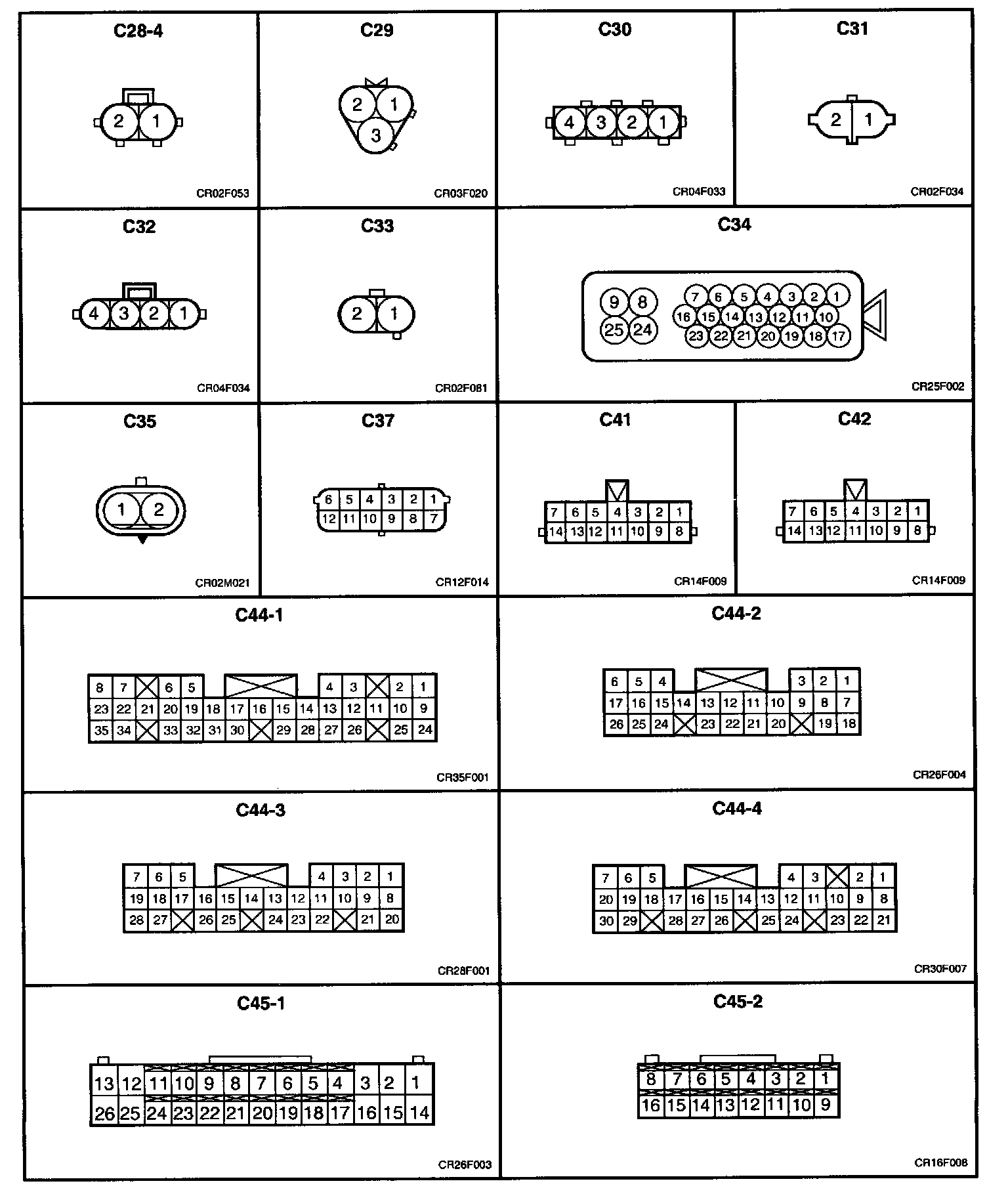

C28-4, C29 To C42, C44-1 To C44-4, C45-1 To C45-2:

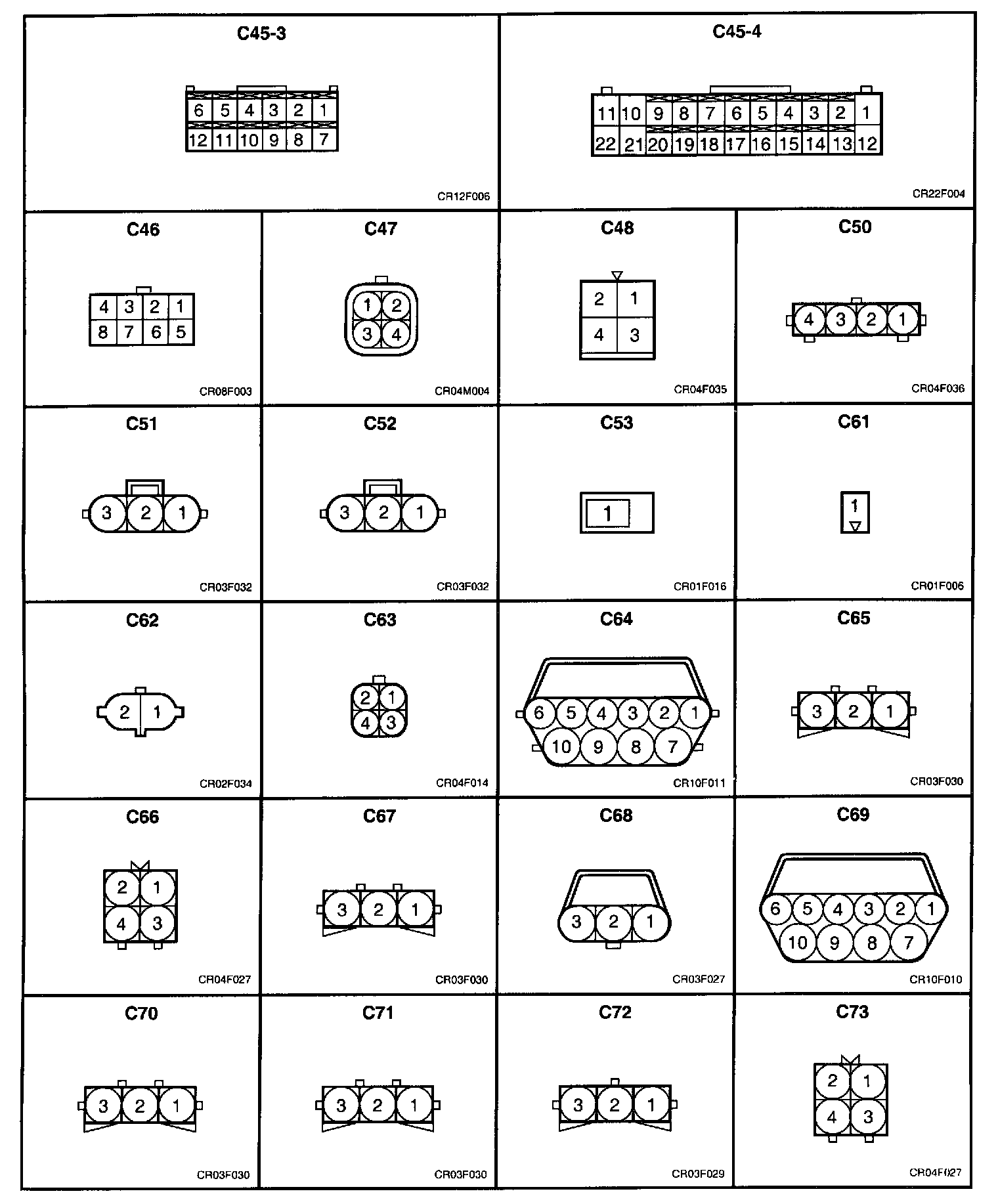

C45-3 To C45-4, C46 To C73:

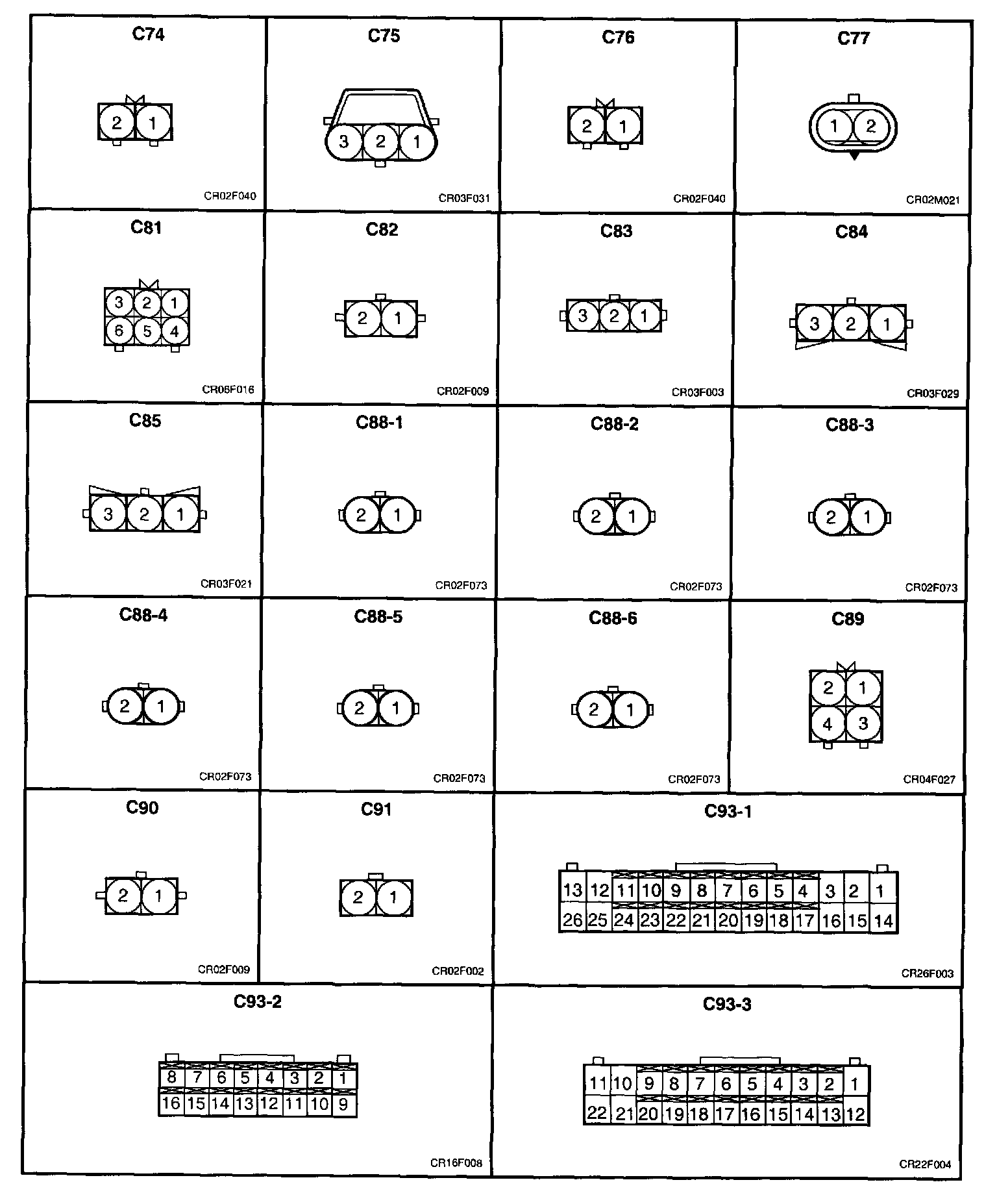

C74 To C85, C88-1 To C88-6, C89 To C91, C93-1 To C93-3:



C94-1 To C94-5, C97 To C110, CC01 To CC02:



JC01 To JC02:
