Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
I
I

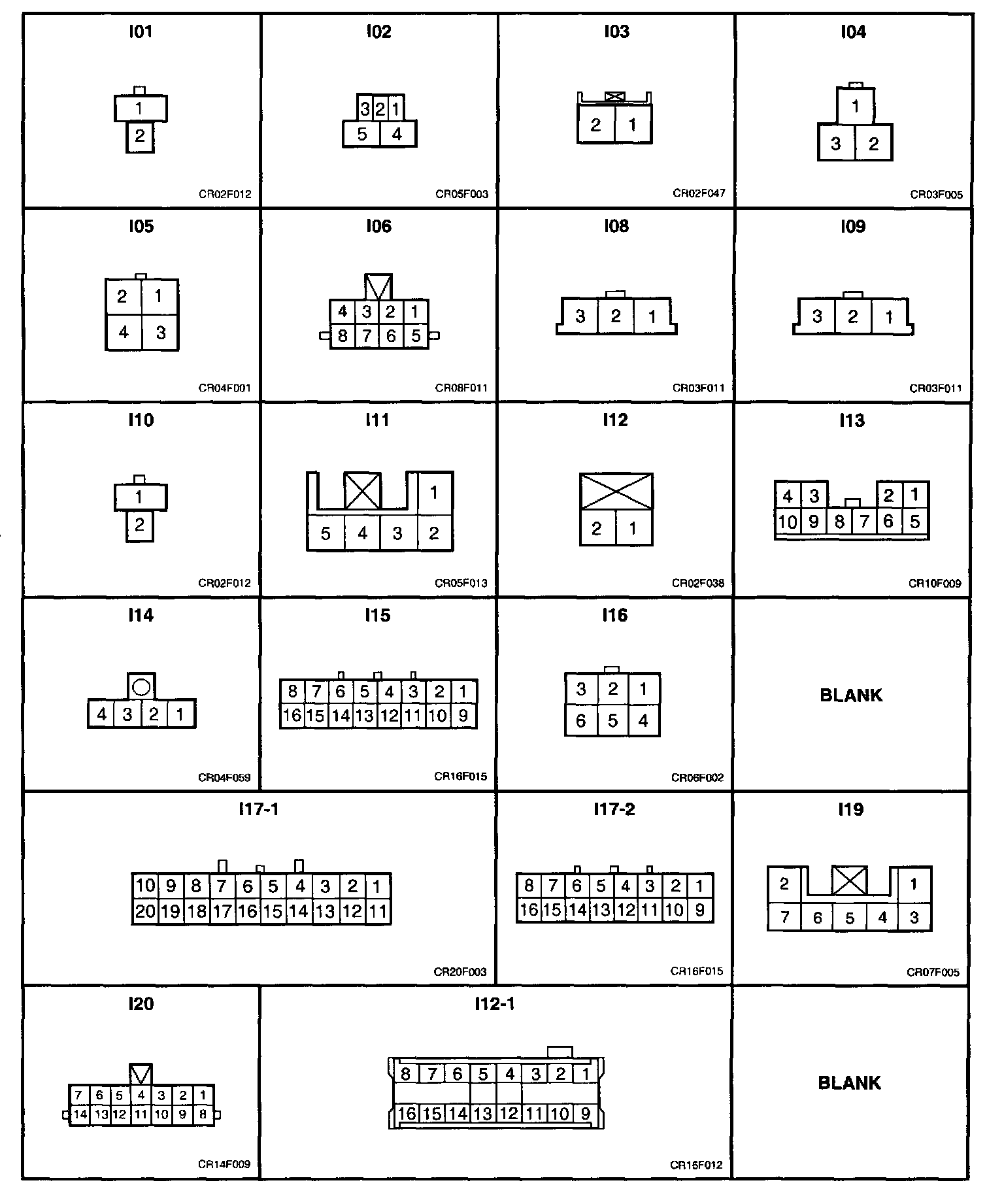

I01 To I16, I17-1 To I17-2, I19 To I20, I12-1:

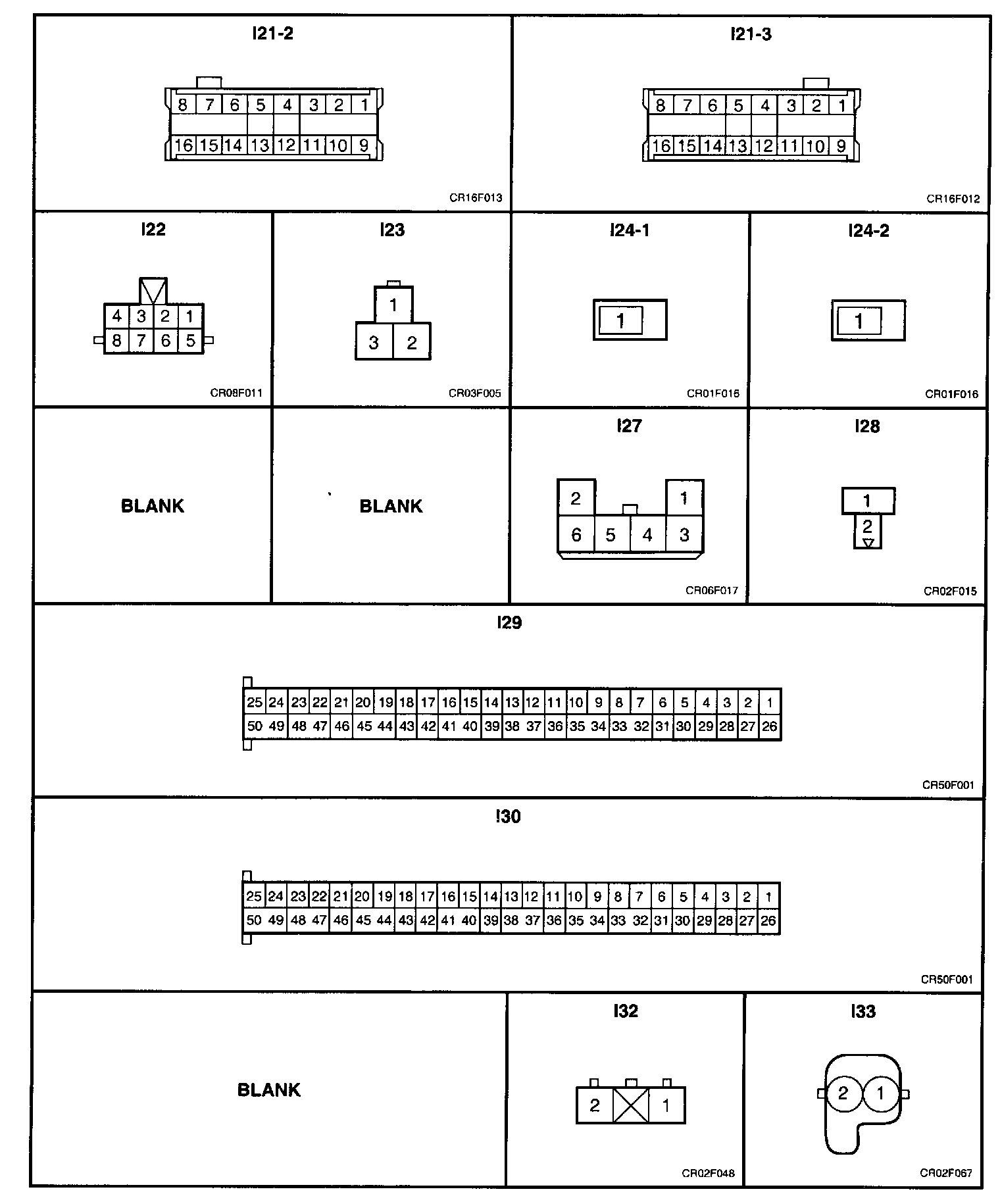

I21-2 To I21-3, I22 To I23, I24-1 To I24-2, I27 To I33:

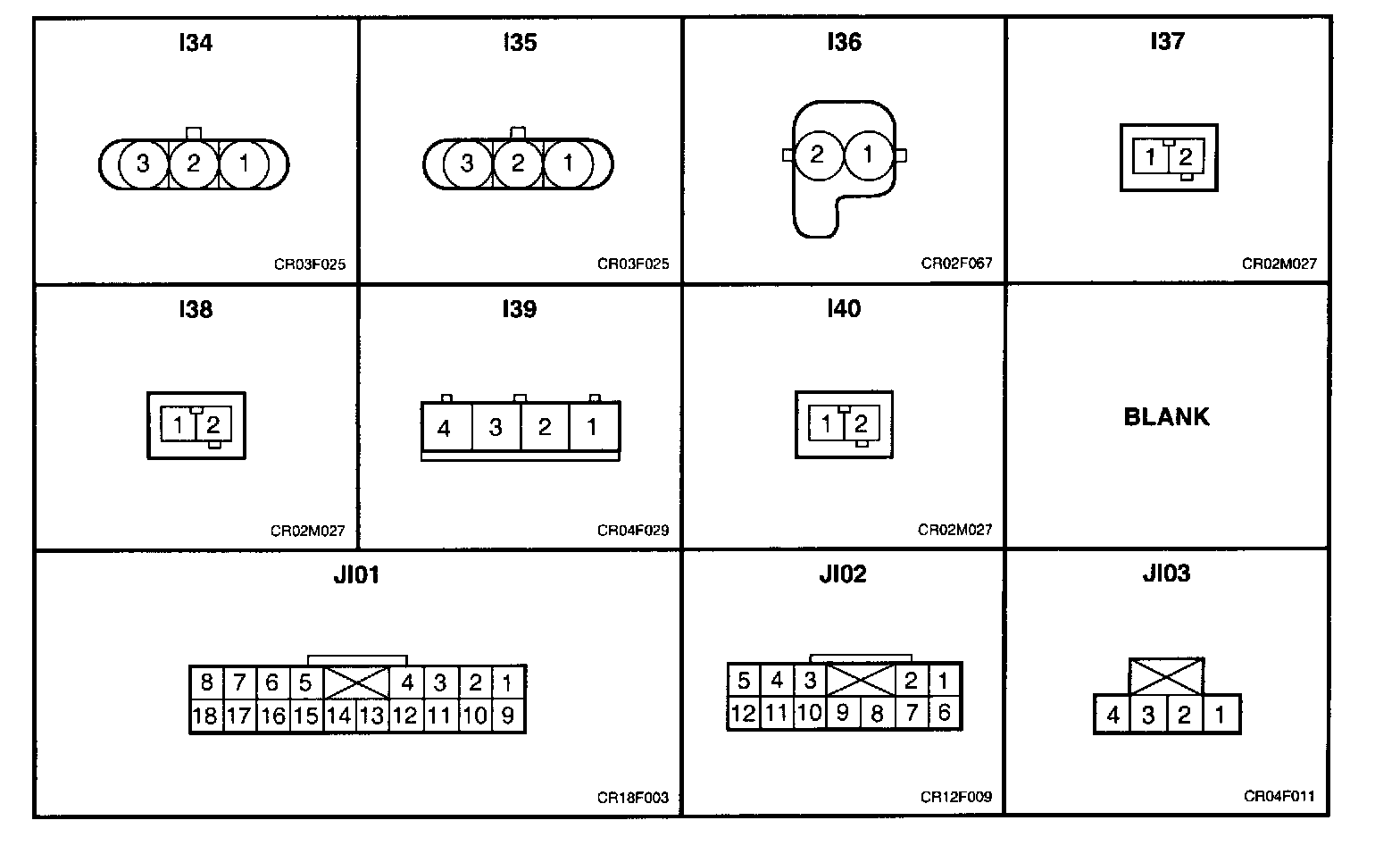

I34 To I40, JI01 To JI03:
