Control Harness, Connectors C

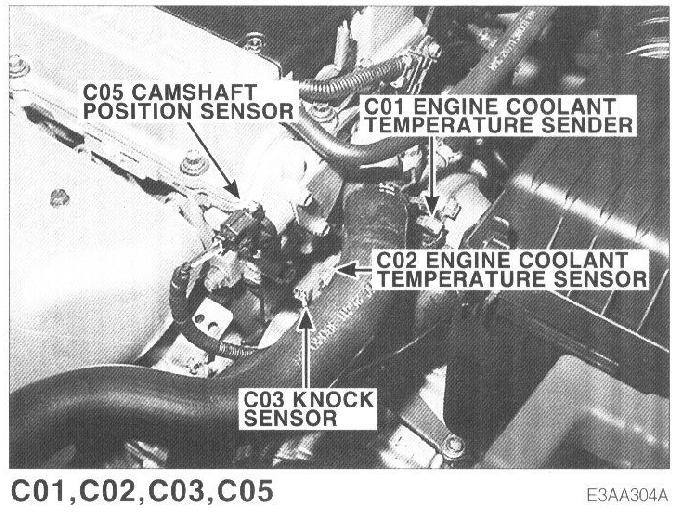

C01 Engine Coolant Temperature Sender, C02 Engine Coolant Temperature Sensor, C03 Knock Sensor, C05 Camshaft Position Sensor:



C67 Camshaft Position Sensor, C70, C71 Knock Sensors (1 And 2):
