Blower Motor
Image SD-212:

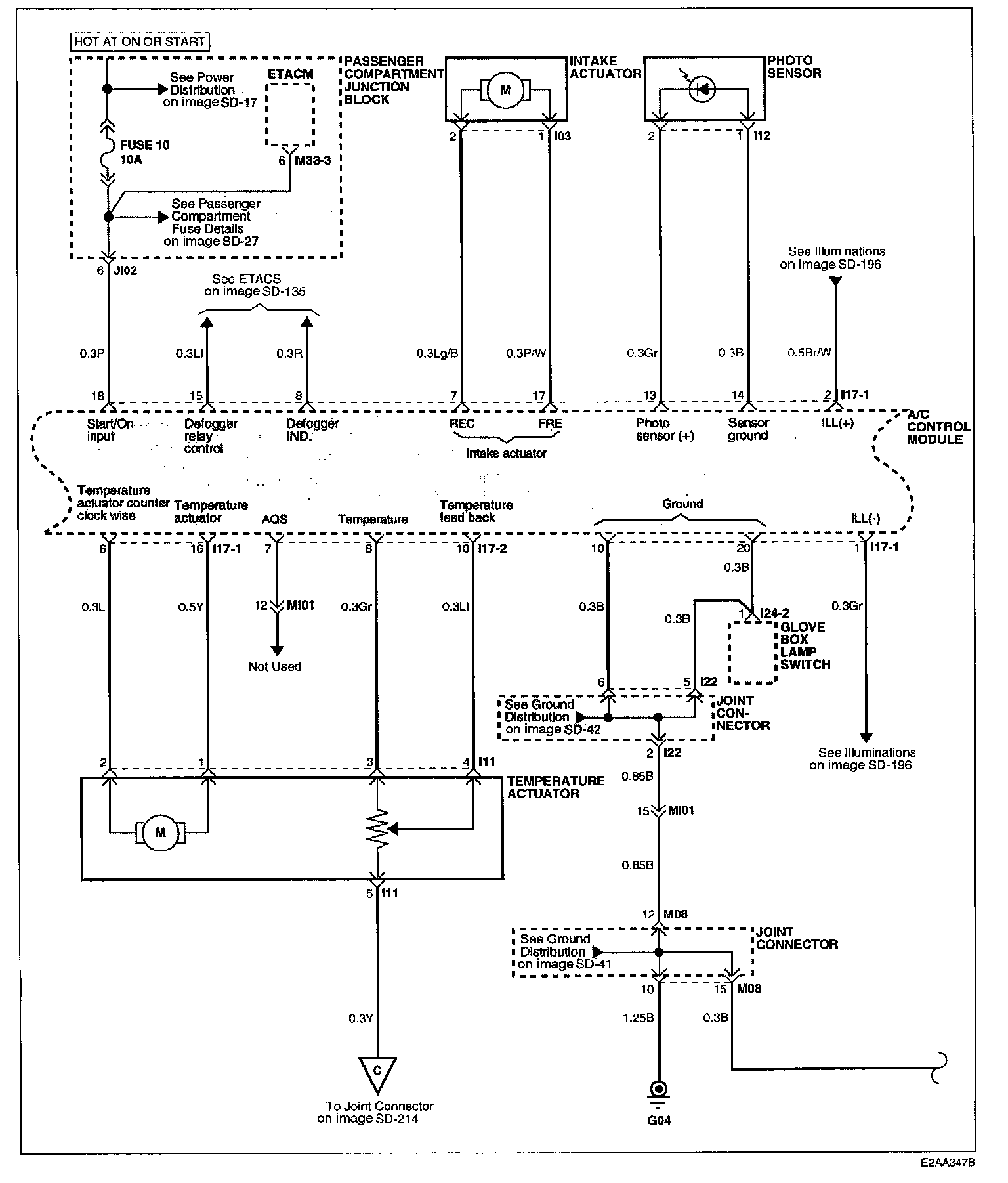

Image SD-213:

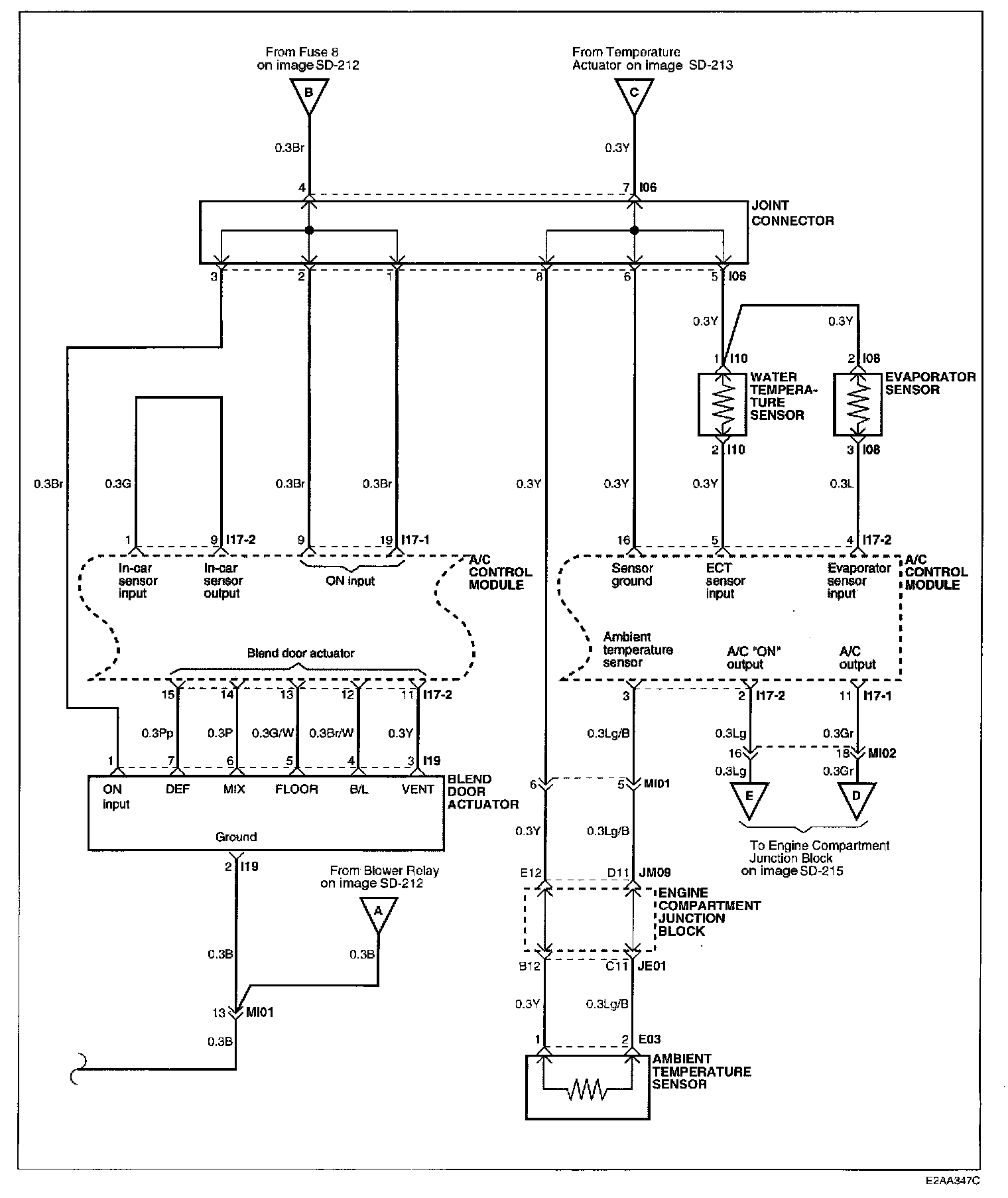

Image SD-214:
Image SD-215:
Schematic Diagrams

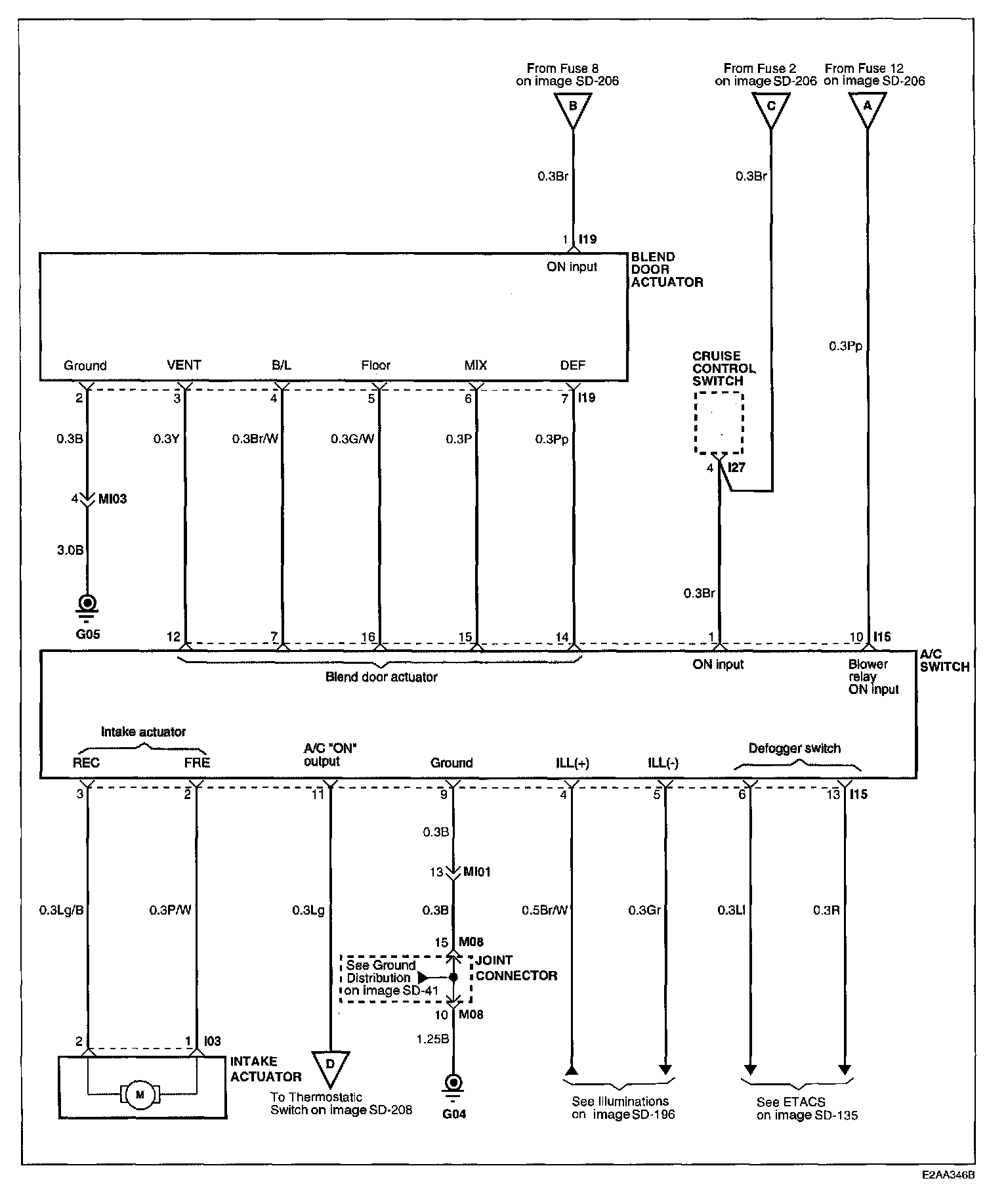

Image SD-206:
Image SD-207:
Image SD-208:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
