Power Locks

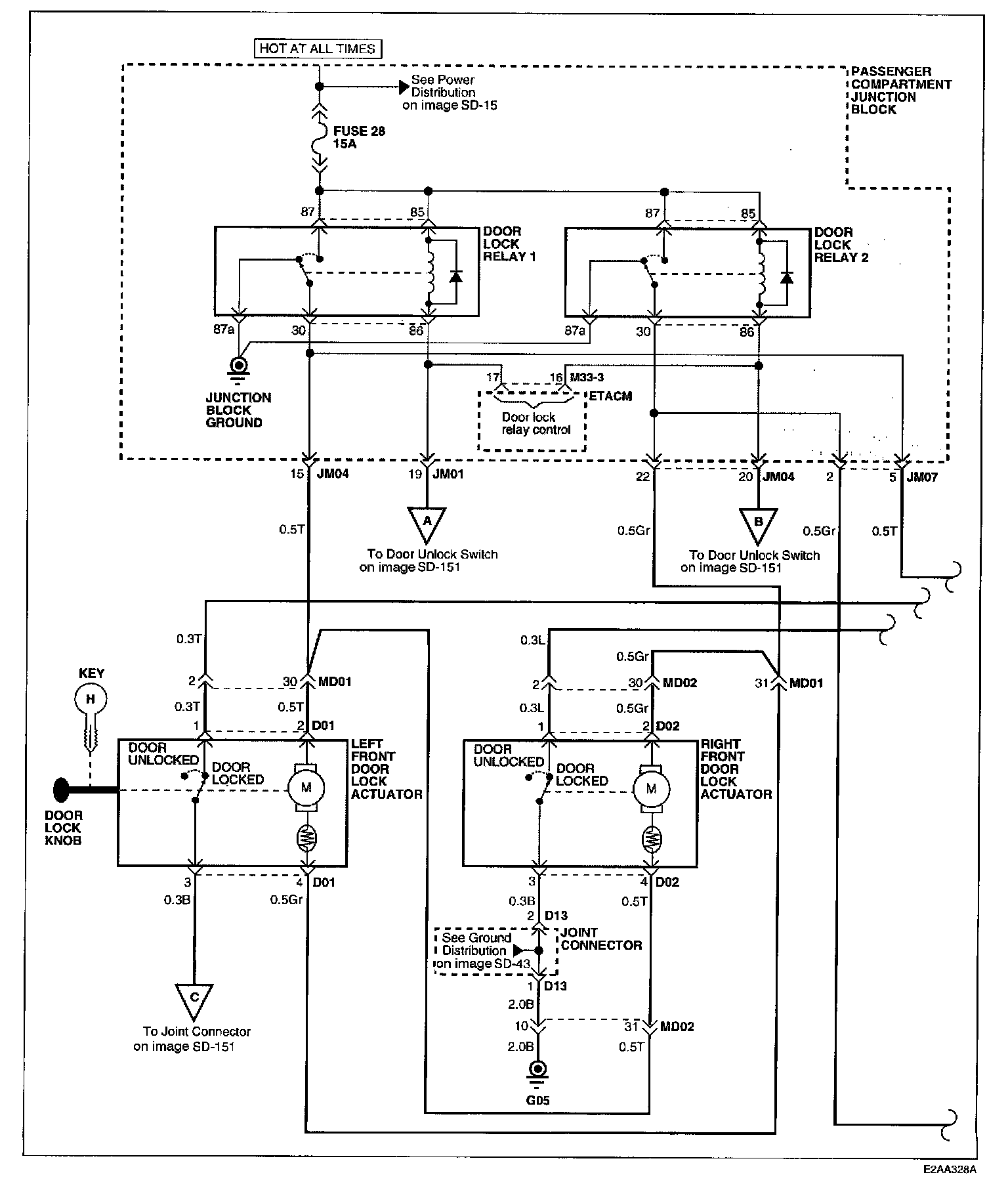

Image SD-150:

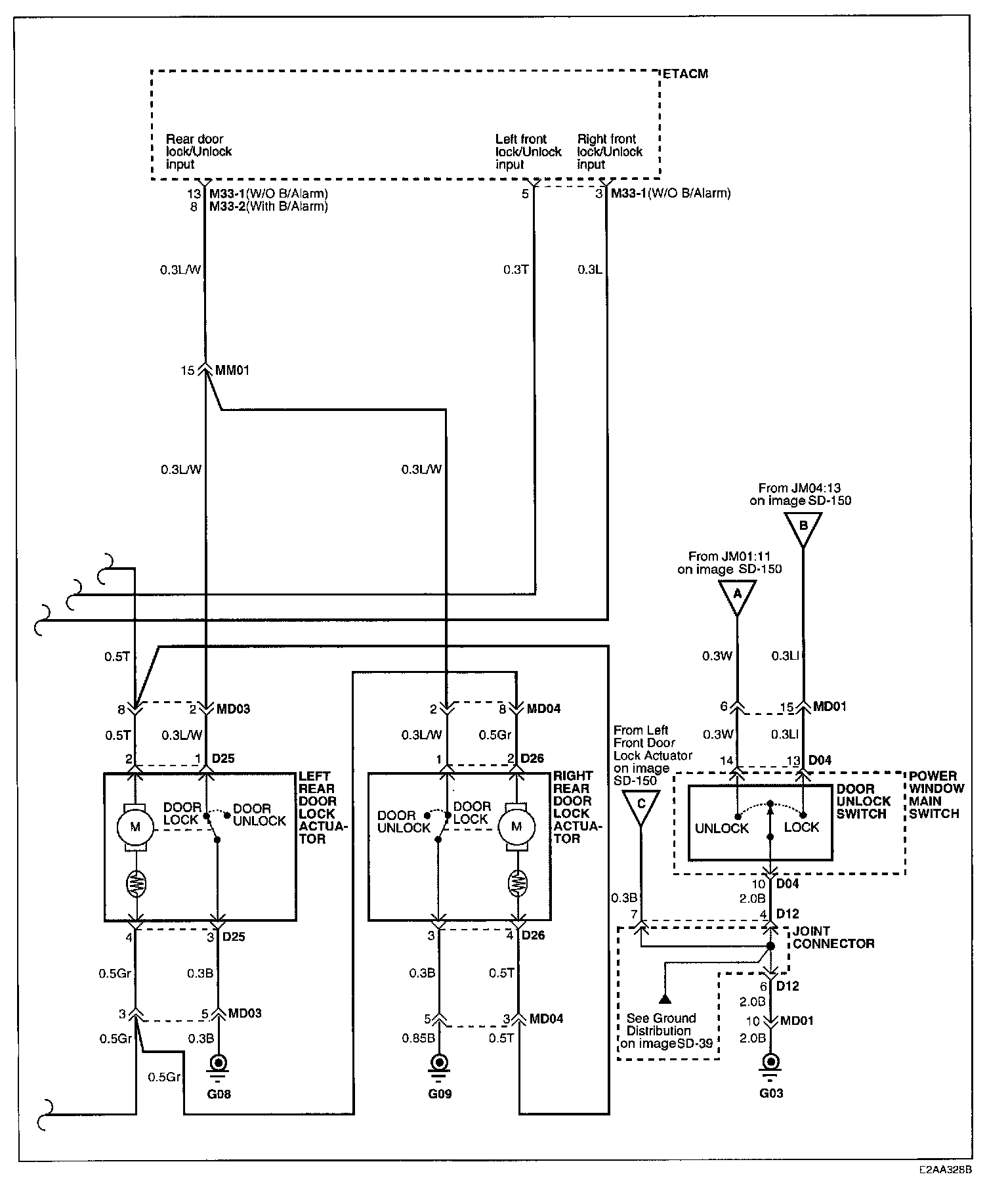

Image SD-151:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
