Fuse Block

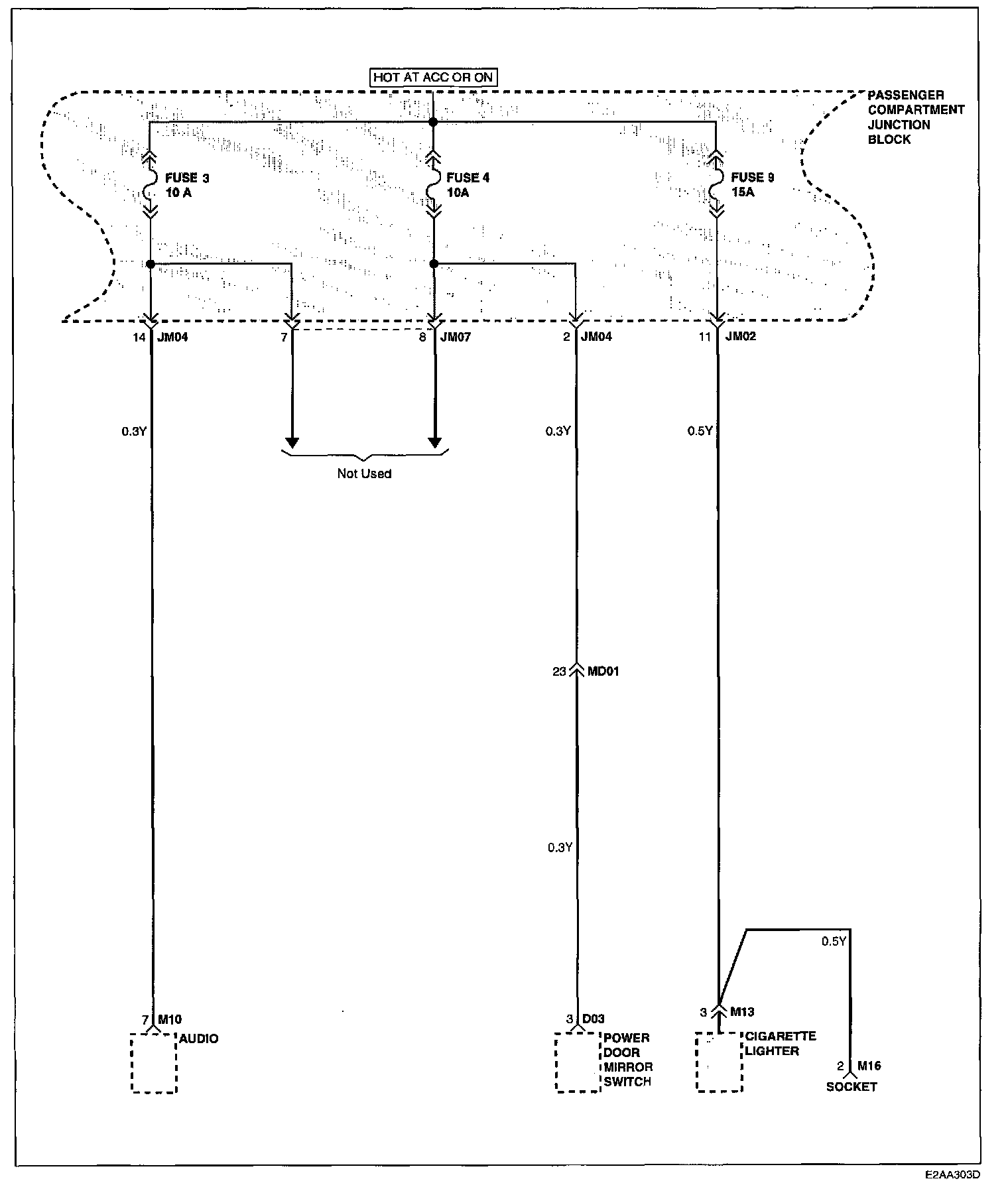

Image SD-20:

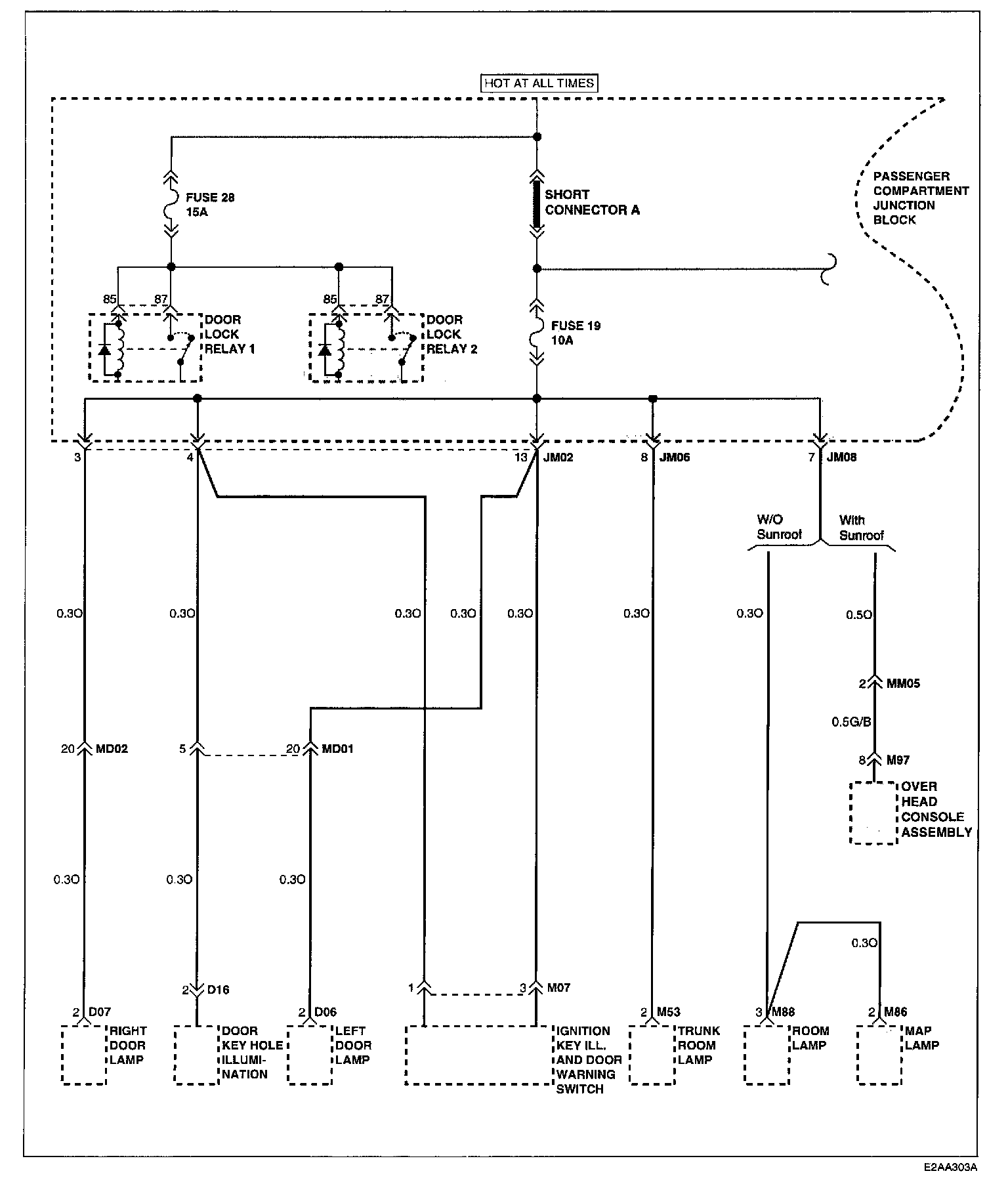

Image SD-21:

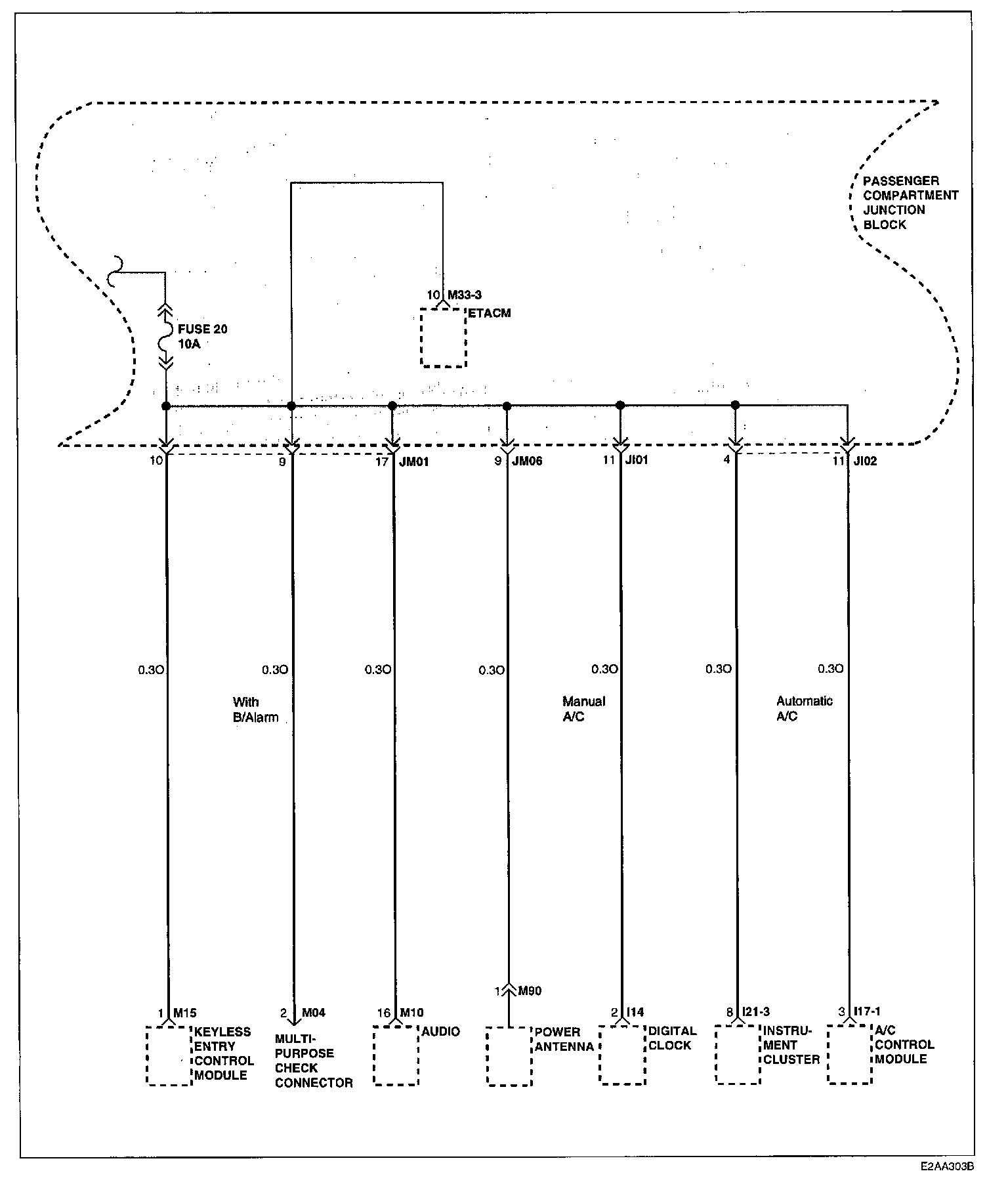

Image SD-22:

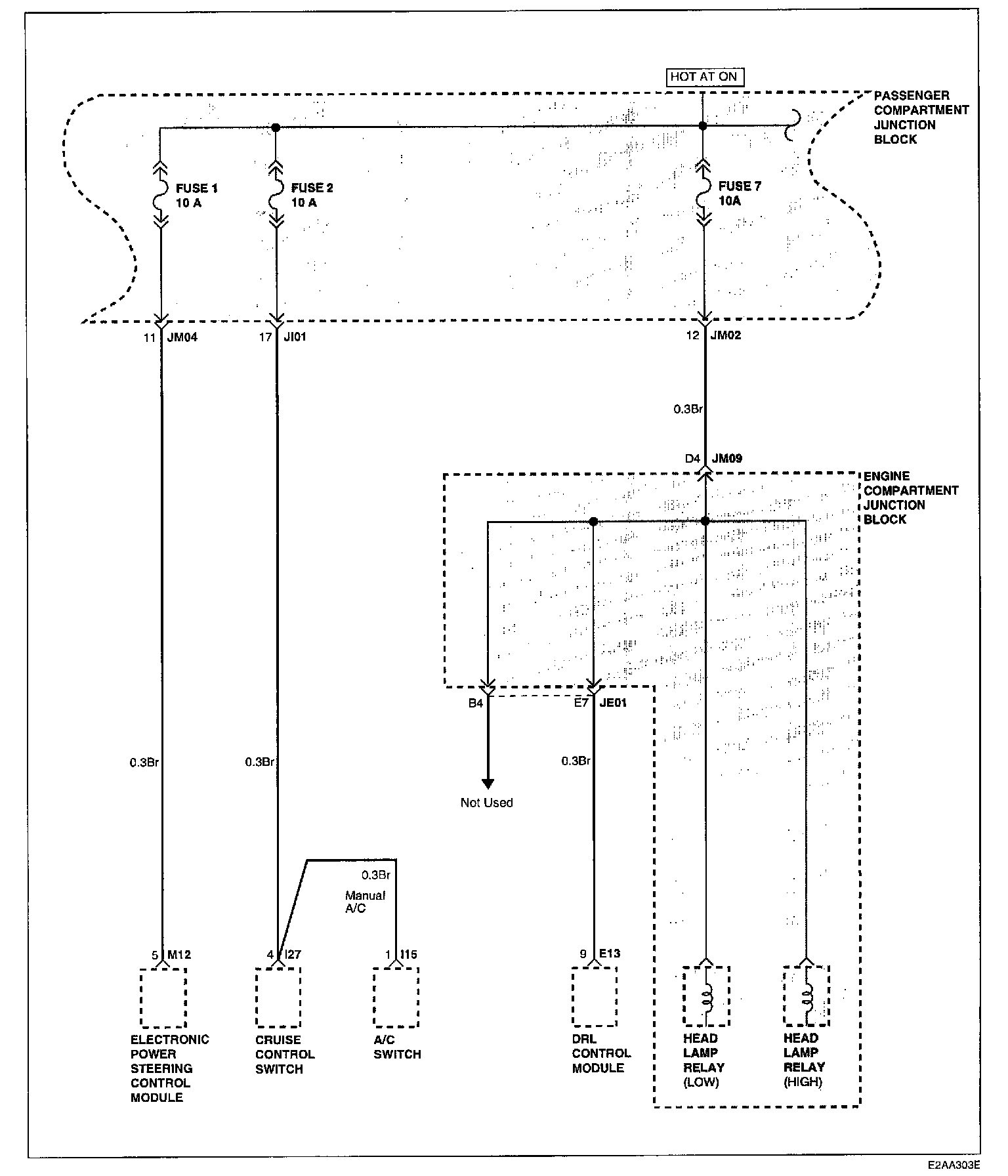

Image SD-23:
Image SD-24:
Image SD-25:
Image SD-26:
Image SD-27:
Image SD-28:
Image SD-29:
Image SD-30:
Image SD-31:
Schematic Diagrams
Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Diagrams
Connector Locations Are Found In The Locations Section Of Vehicle.
Locations
