Home
>>
Hyundai
>>
2000
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cylinder Block Assembly
>>

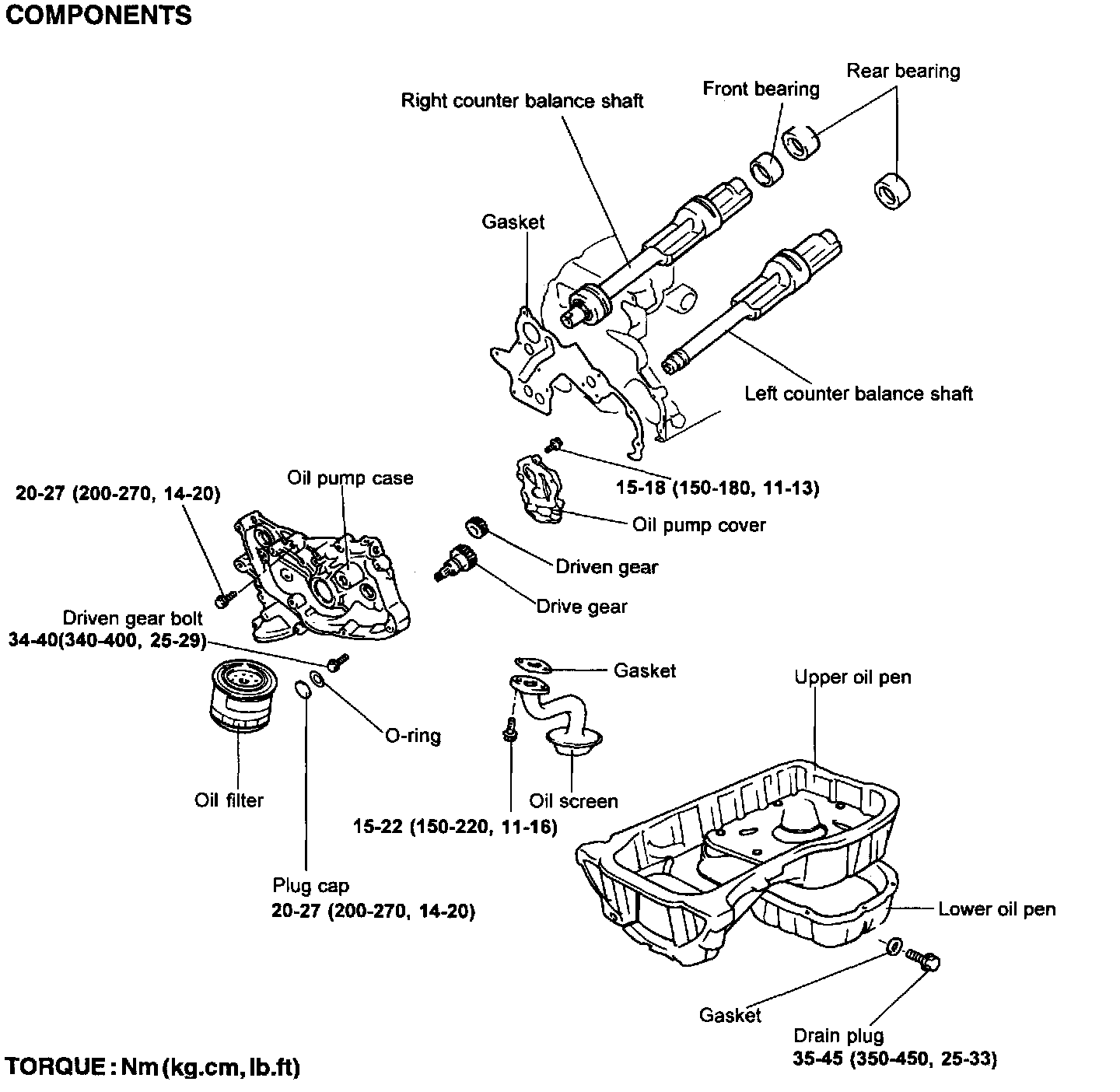

Oil Pump Case, Oil Pump and Counter Balance Shaft
Oil Pump Case, Oil Pump and Counter Balance Shaft
