Engine Compartment Junction Block
Engine Compartment Junction Block

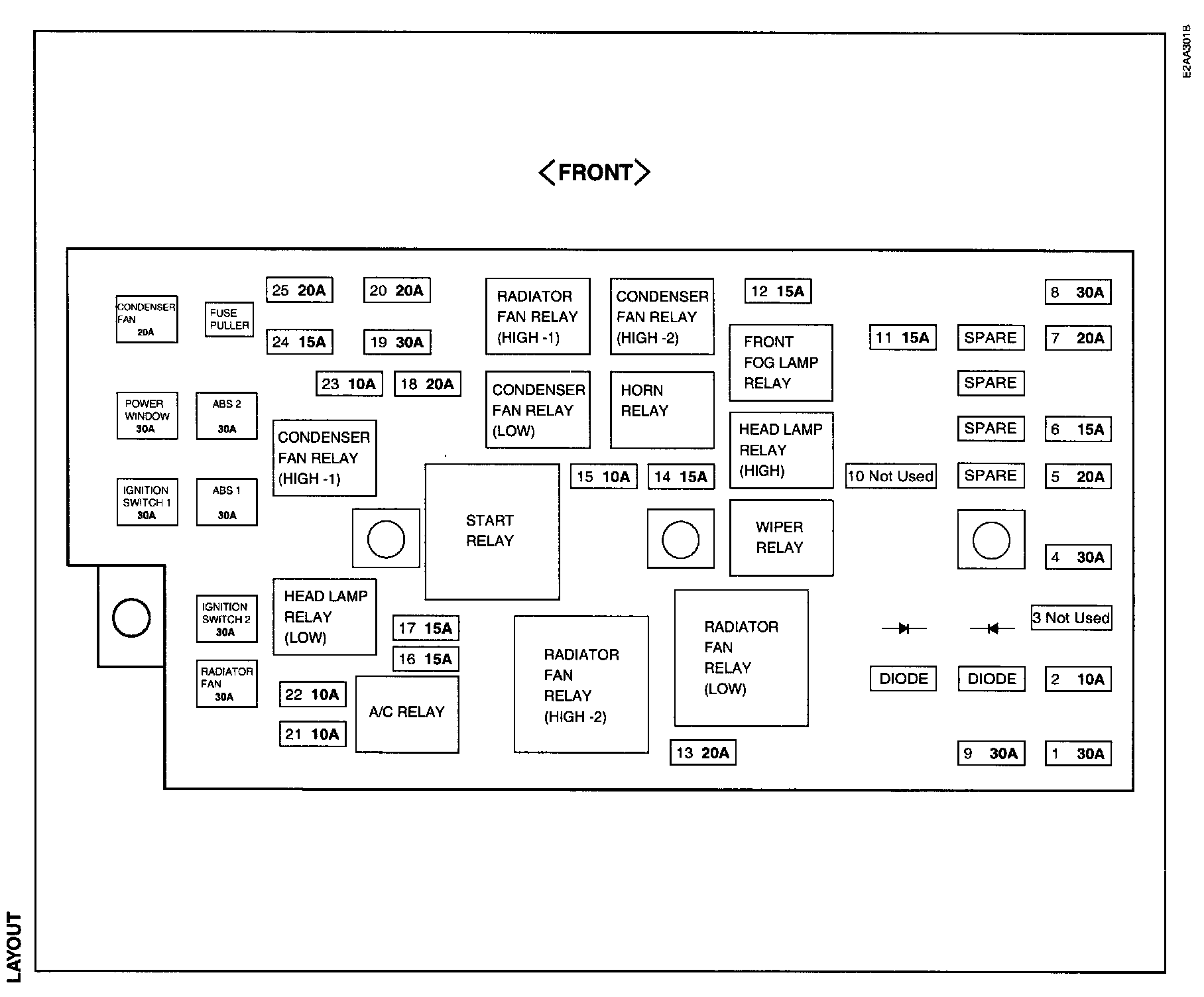

Layout - Front:
Circuit - Front:

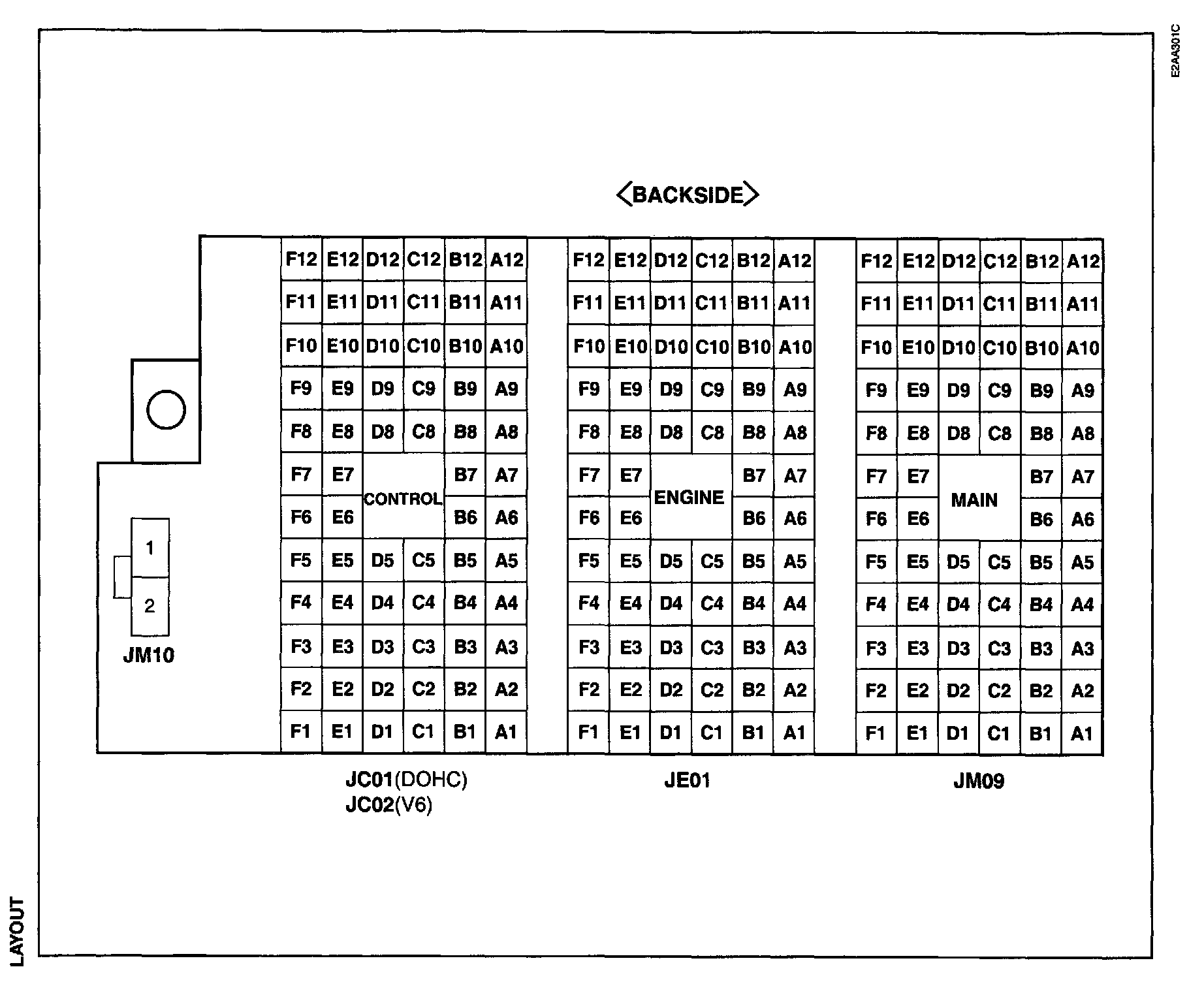

Layout - Backside:
