Blower & A/C Controls (Auto)

Image SD-212 - Blower And A/C Controls (Automatic) (1):



Image SD-213 - Blower And A/C Controls (Automatic) (2):

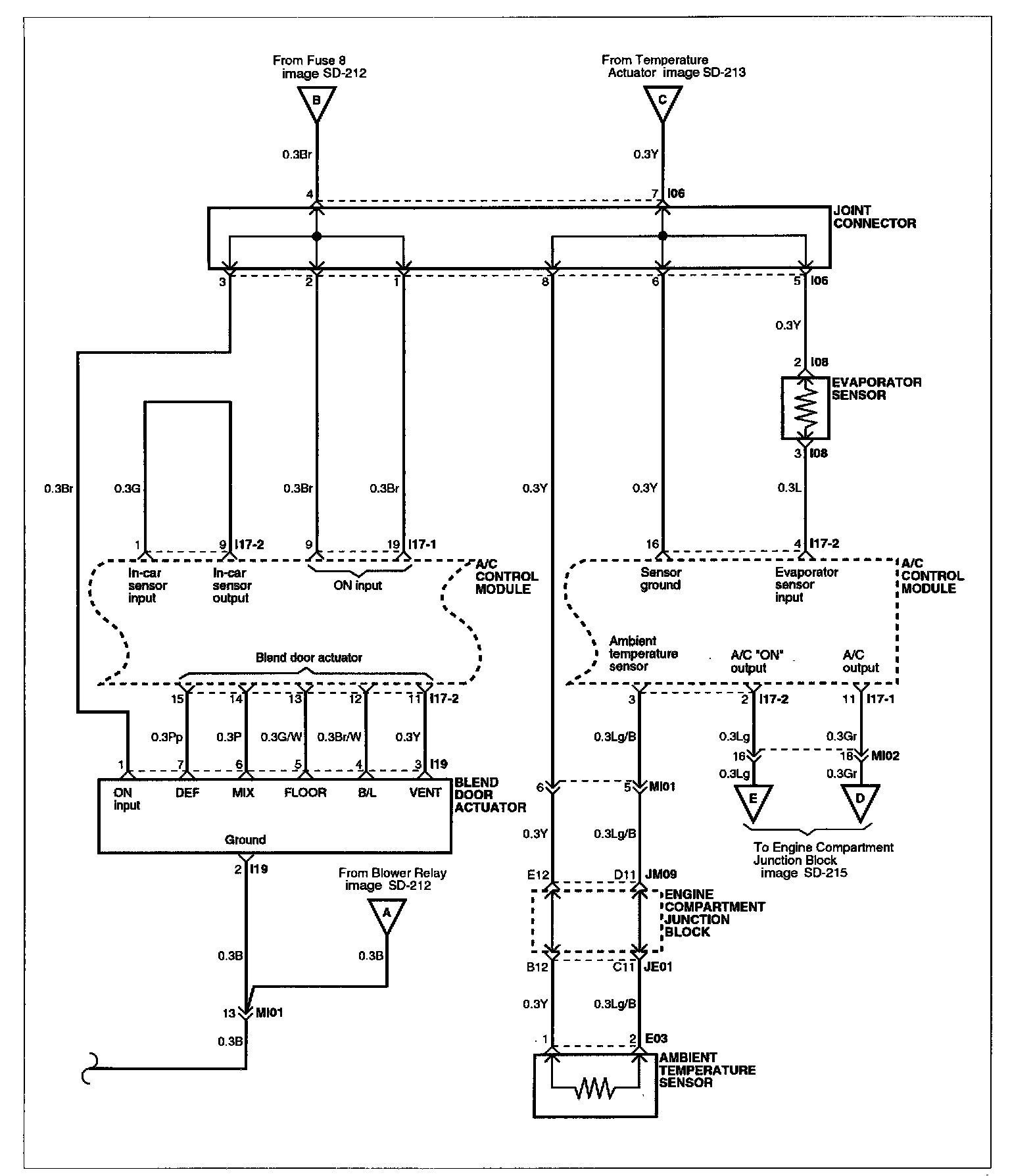

Image SD-214 - Blower And A/C Controls (Automatic) (3):



Image SD-215 - Blower And A/C Controls (Automatic) (4):
