Blower & A/C Controls (Manual)

Image SD-206 - Blower And A/C Controls (Manual) (1):

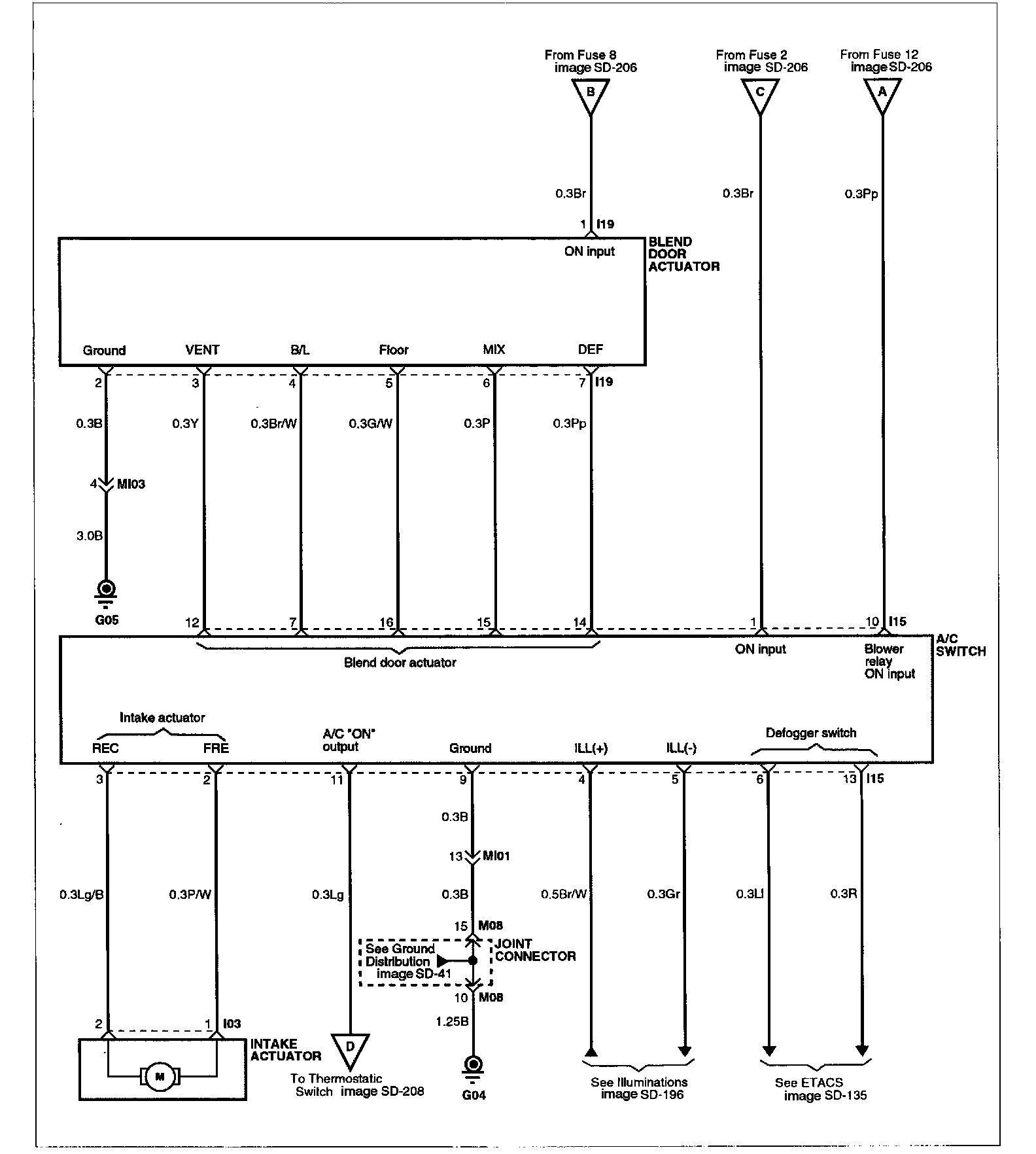

Image SD-207 - Blower And A/C Controls (Manual) (2):



Image SD-208 - Blower And A/C Controls (Manual) (3):
