Drive Belt: Service and Repair

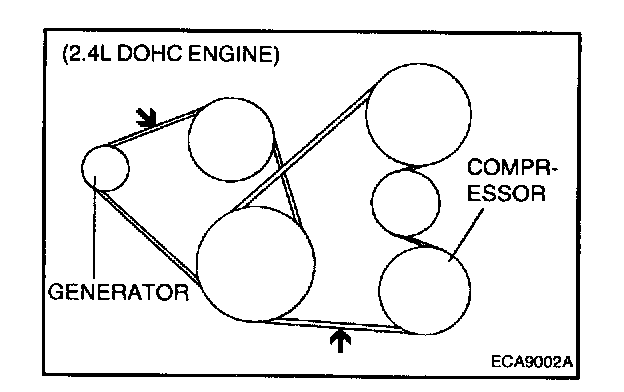

Apply 100 N (22 lbs.) force to the belt back midway between the pulleys as shown in the illustration, measure the amount of deflection Measure tension with a tension gauge.

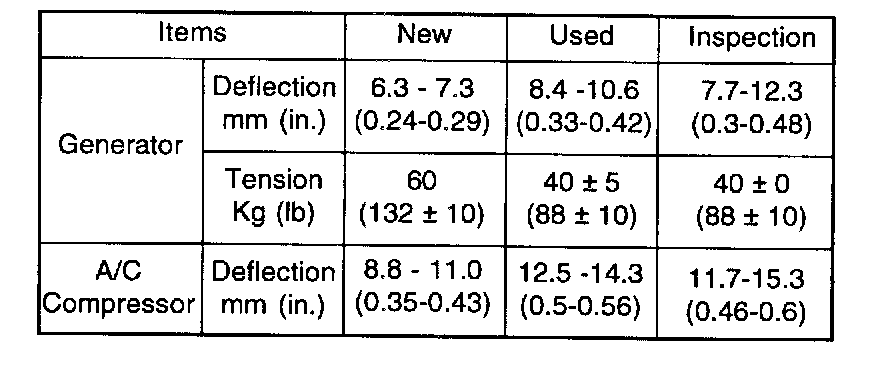

Standard Value
