Low-Reverse Brake End Play

LOW - REVERSE BRAKE END PLAY ADJUSTMENT

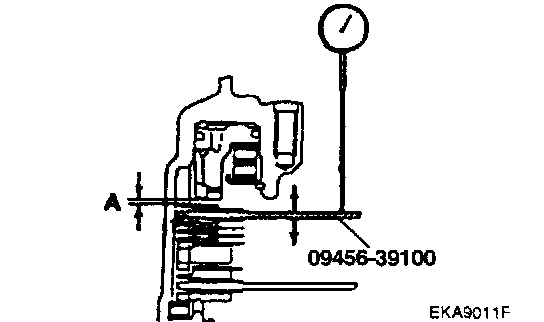

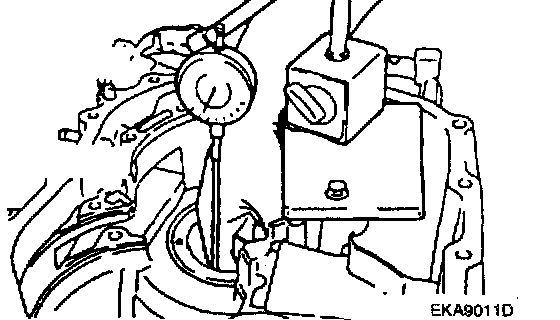

Reverse the transmission and install the dial gauge. Move the special tool up and down to measure the end play.
Standard value: 1.35 - 1.81 mm





Reference
Select a pressure plate whose thickness is within the following value.
[A (moving amount) + thickness of the special tool - 1.81] to [A (moving amount) + thickness of the special tool - 1.35]
