Radio, Stereo, and Compact Disc: Service and Repair

AUDIO UNIT

REMOVAL AND INSTALLATION




1. Disconnect the negative battery terminal.

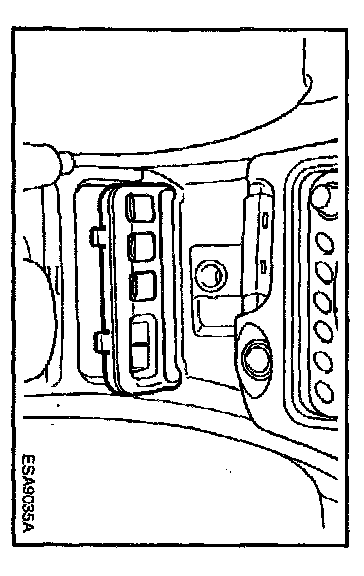

2. Remove the console switch.




3. Remove center facia panel and disconnect air temperature switch connector.

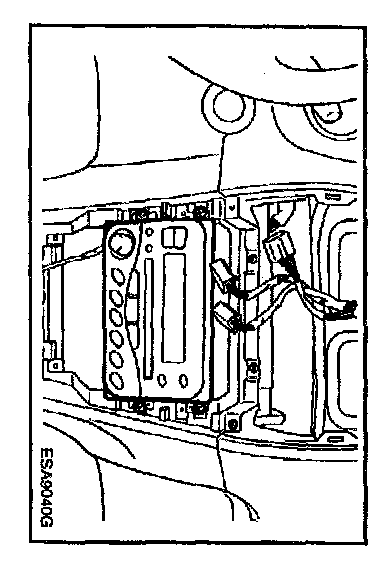

4. Unscrew the audio mounting screws and remove the audio assembly from the mounting bracket.
5. Installation is the reverse of removal.
