Radio, Stereo, and Compact Disc: Testing and Inspection

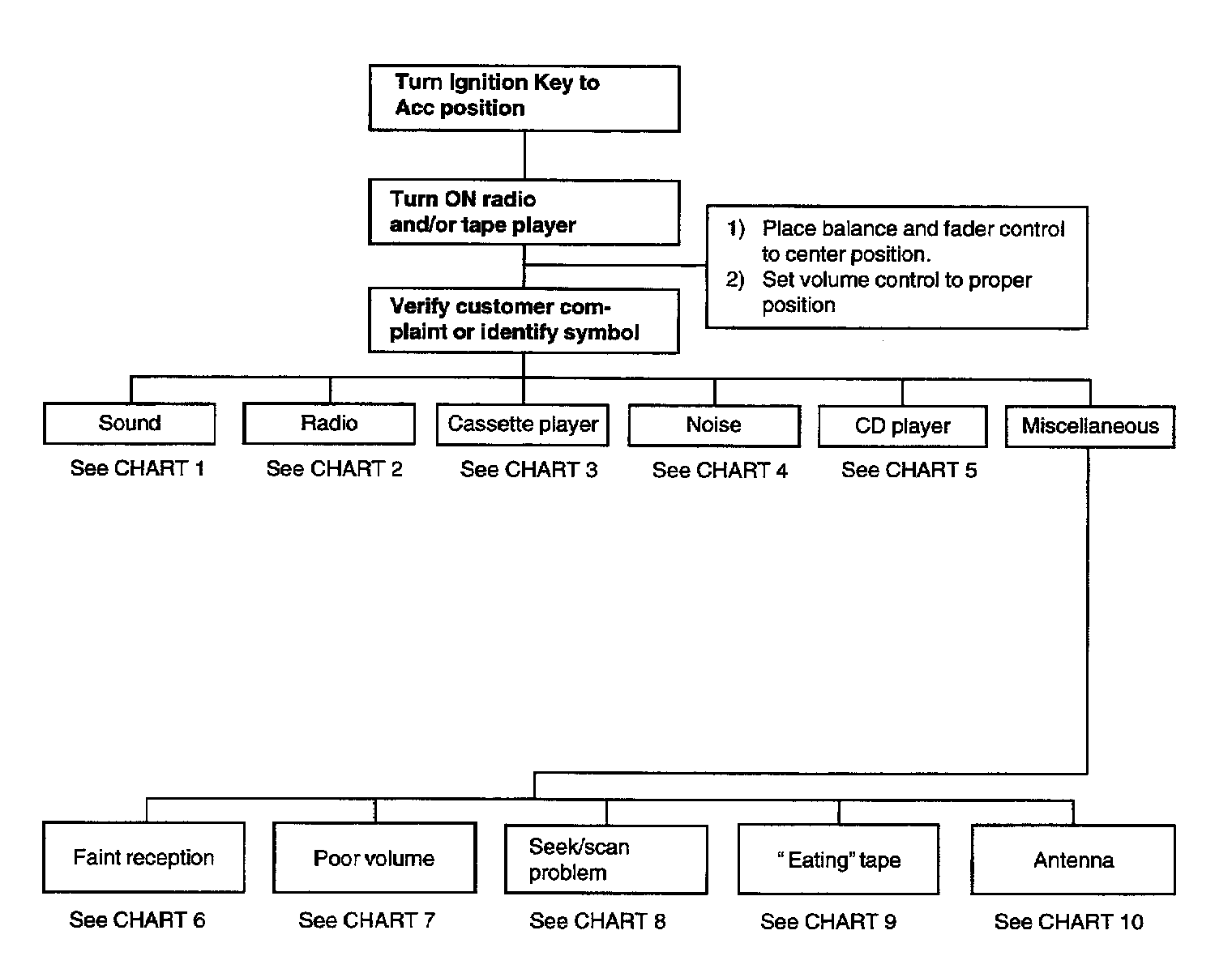

Symptom To Chart Cross Reference:

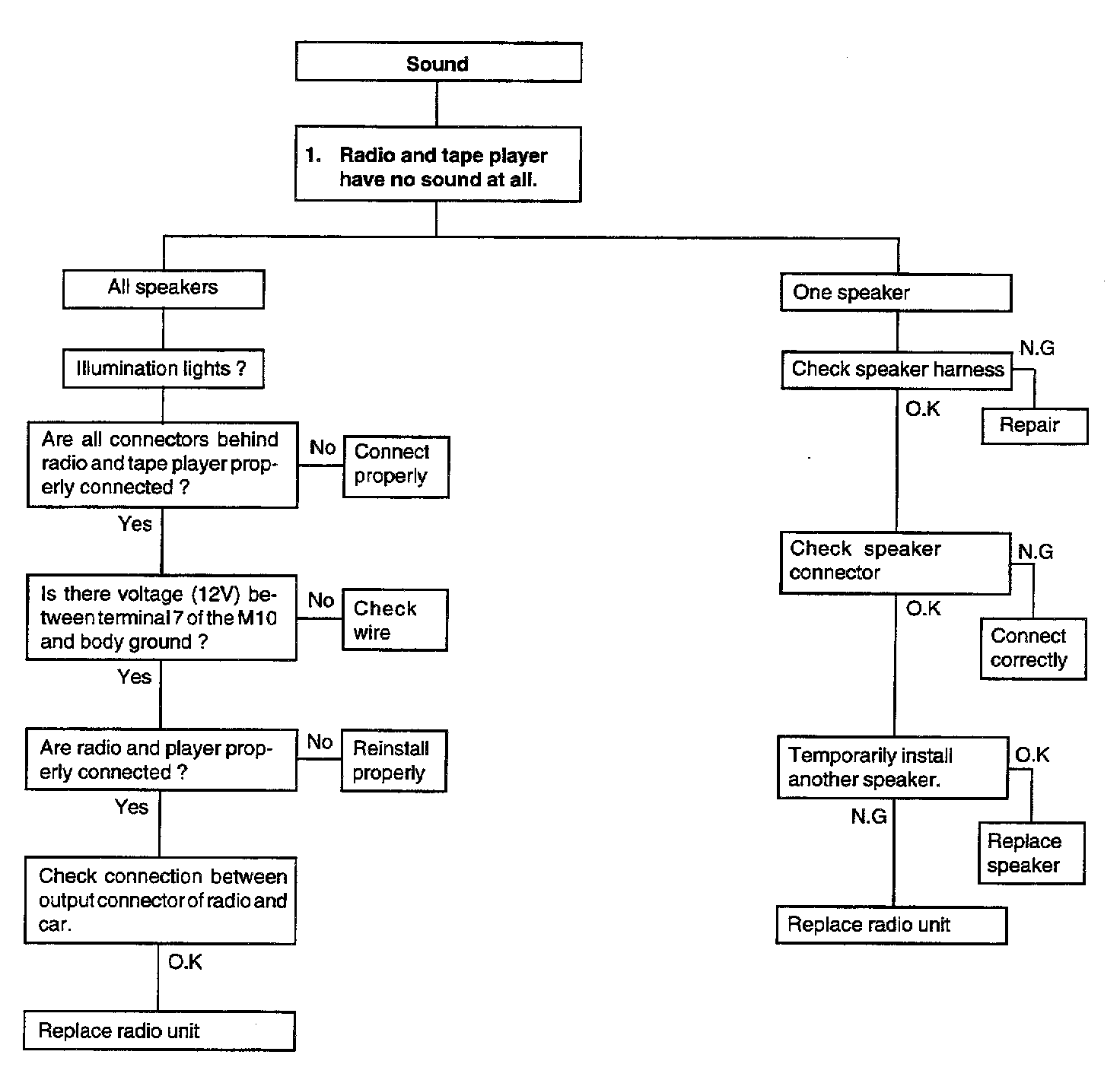

Chart 1 Part 1:

Chart 1 Part 2:

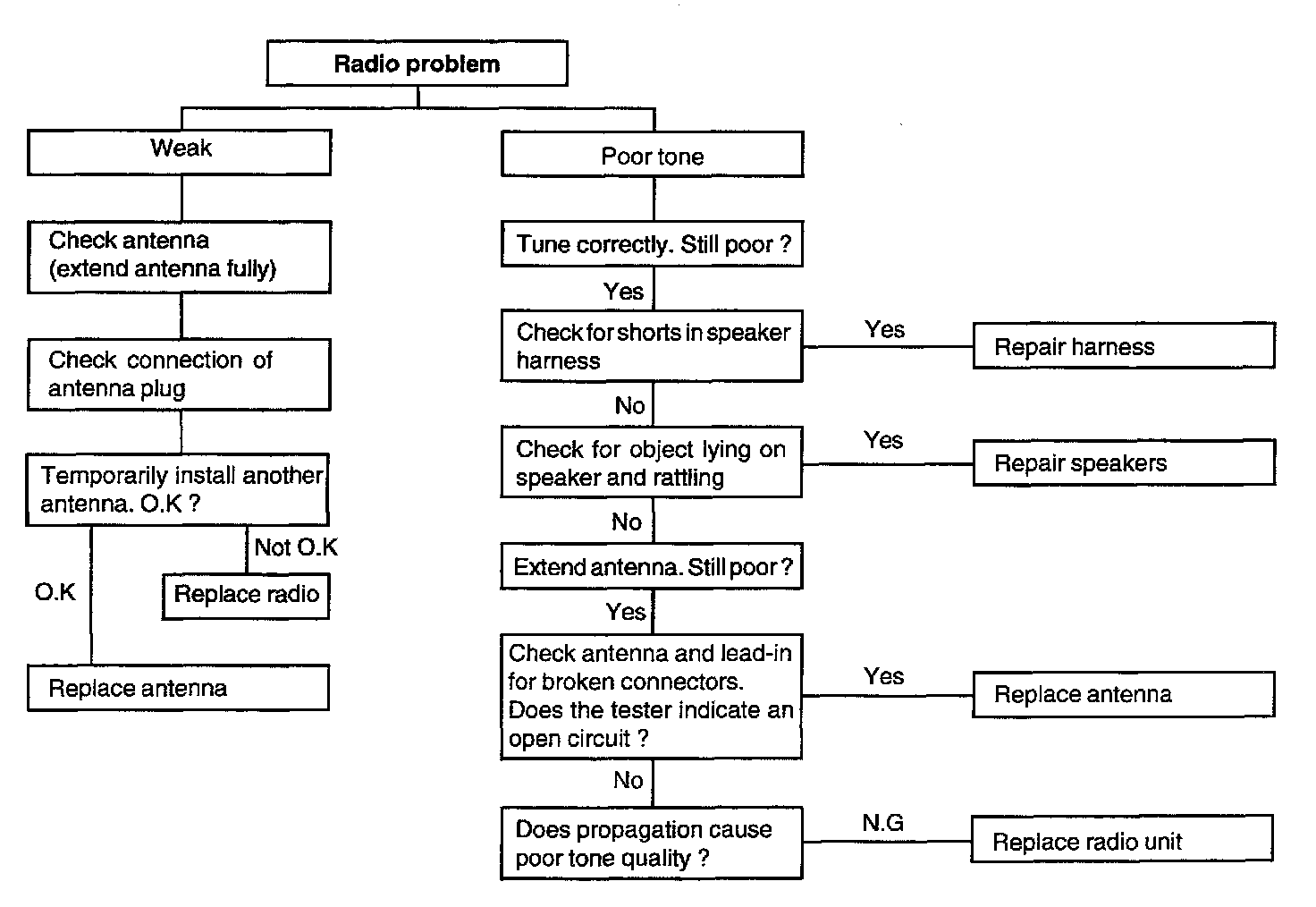

Chart 2:

Chart 3:

Chart 4 Part 1:

Chart 4 Part 2:

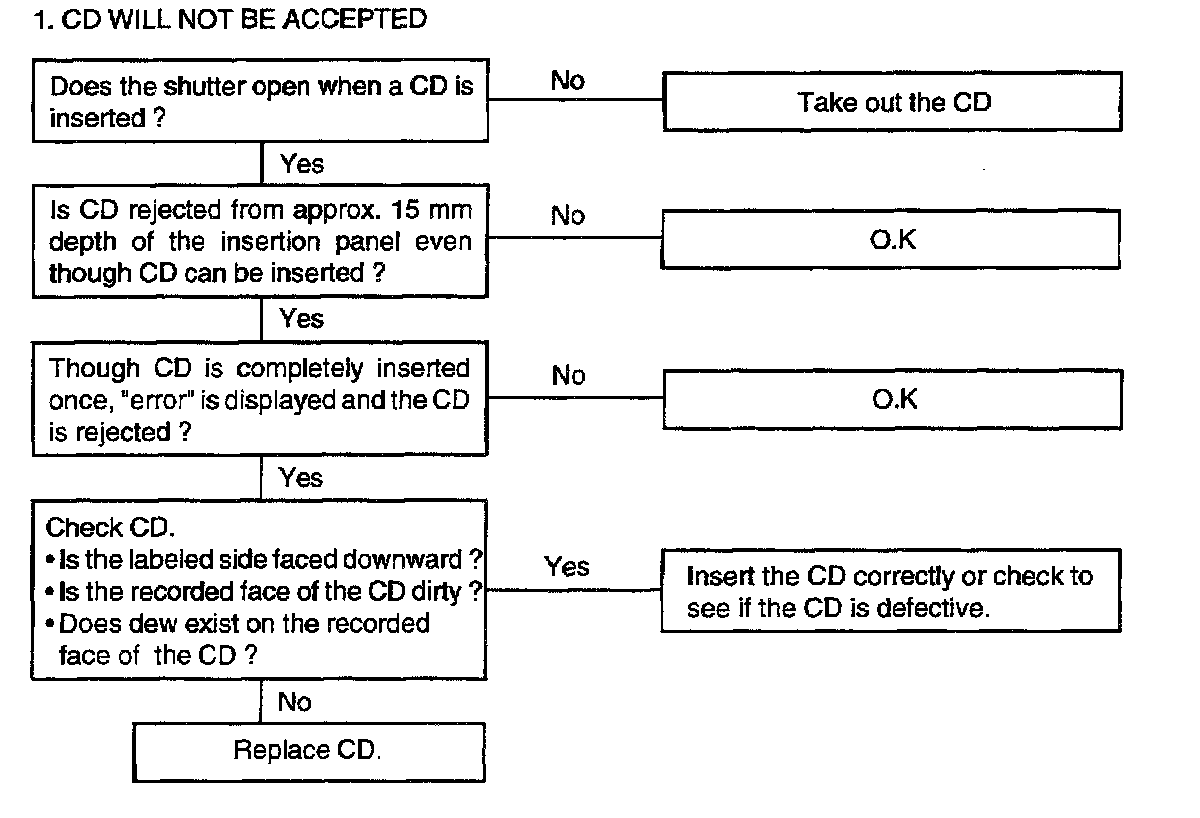

Chart 5 Part 1:

Chart 5 Part 2:

Chart 5 Part 3:

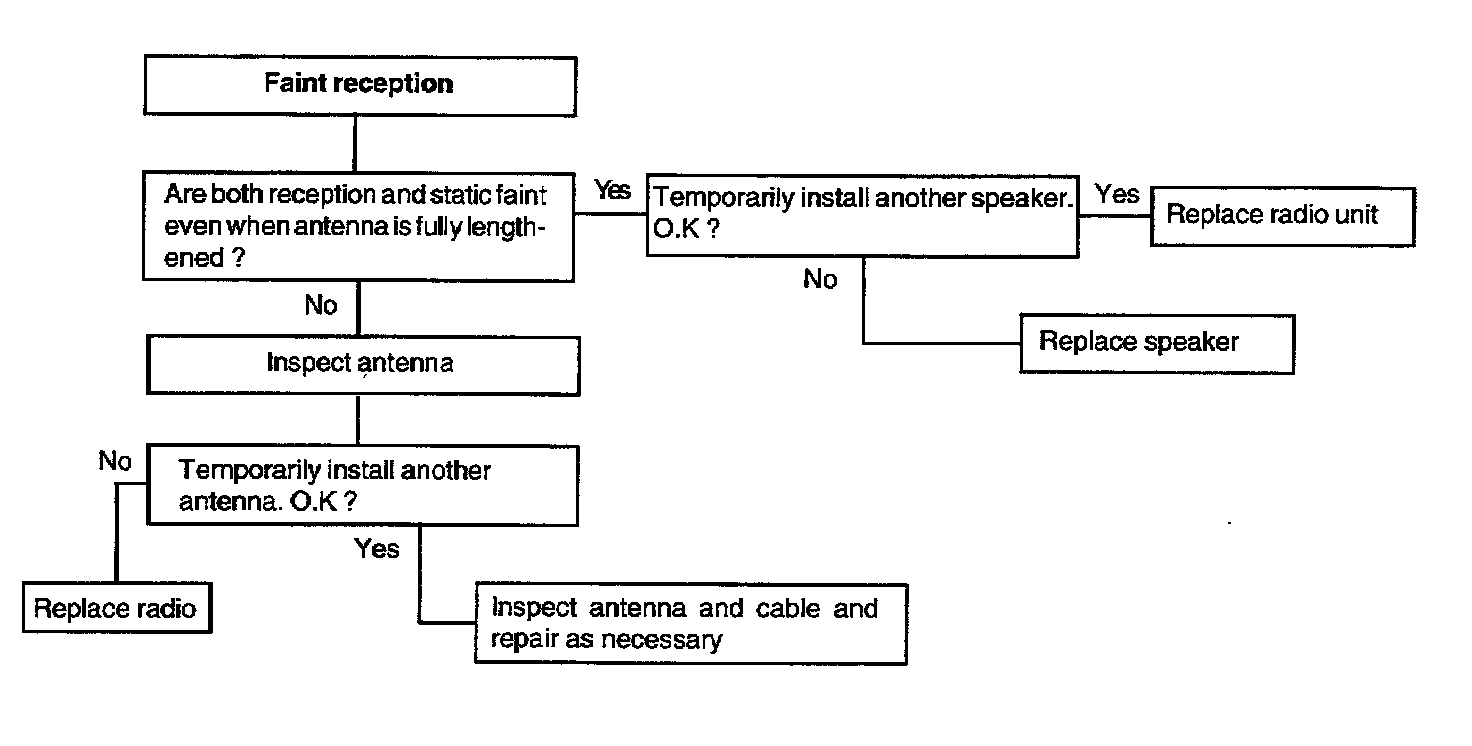

Chart 6:

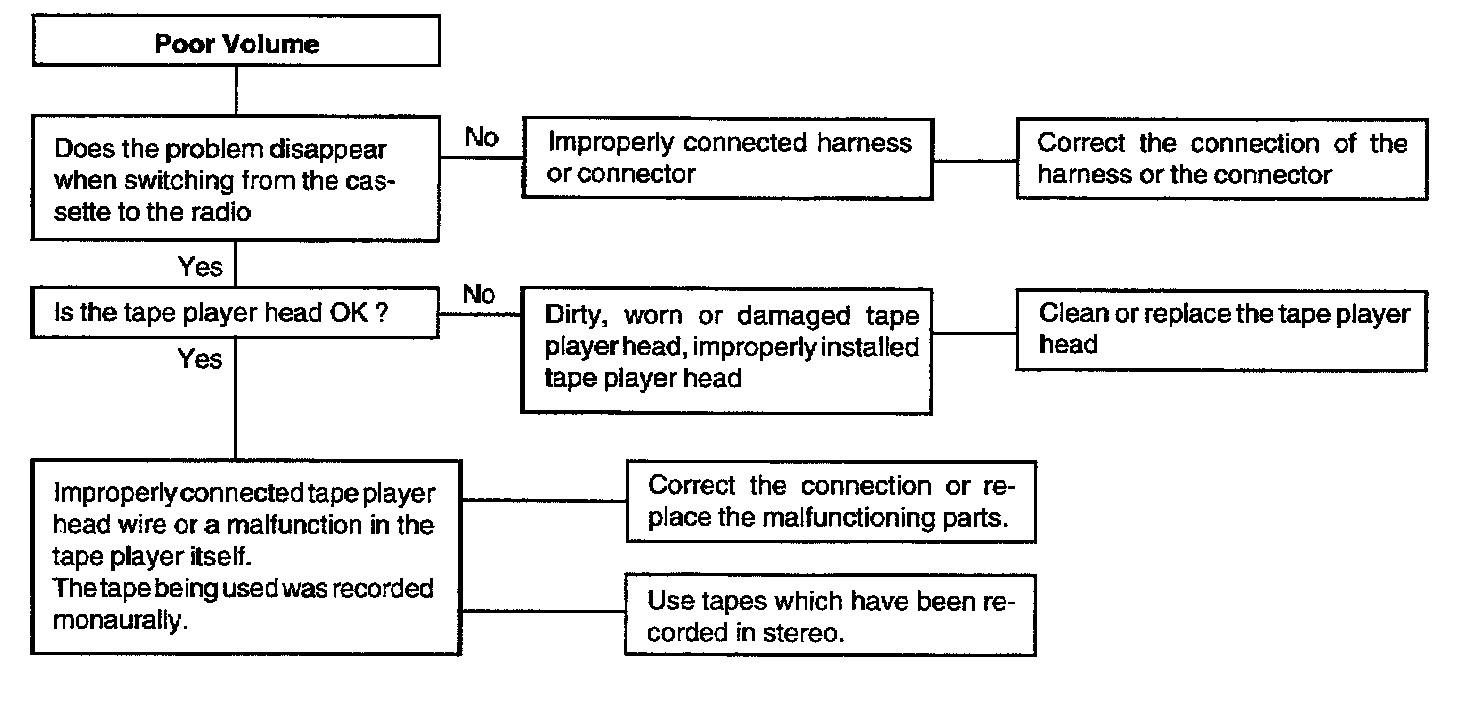

Chart 7:

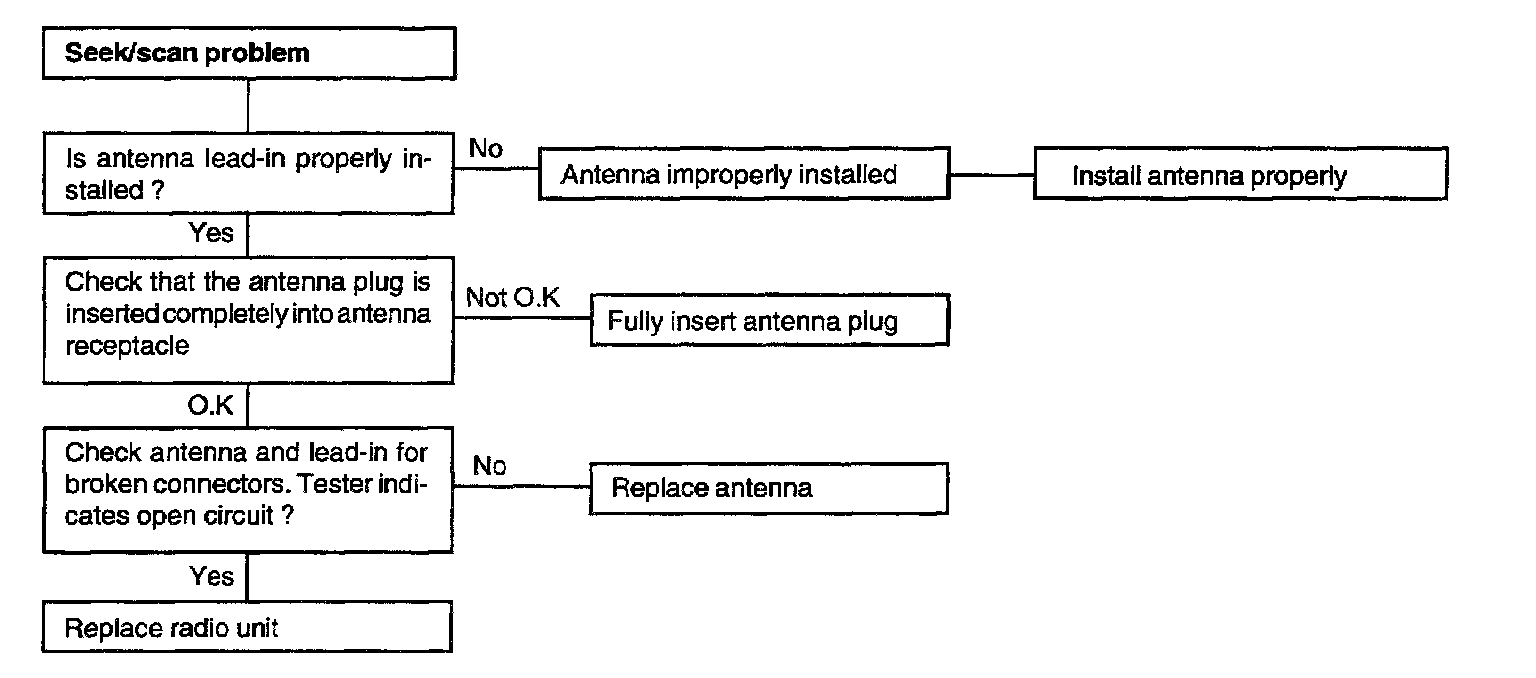

Chart 8:

Chart 9:

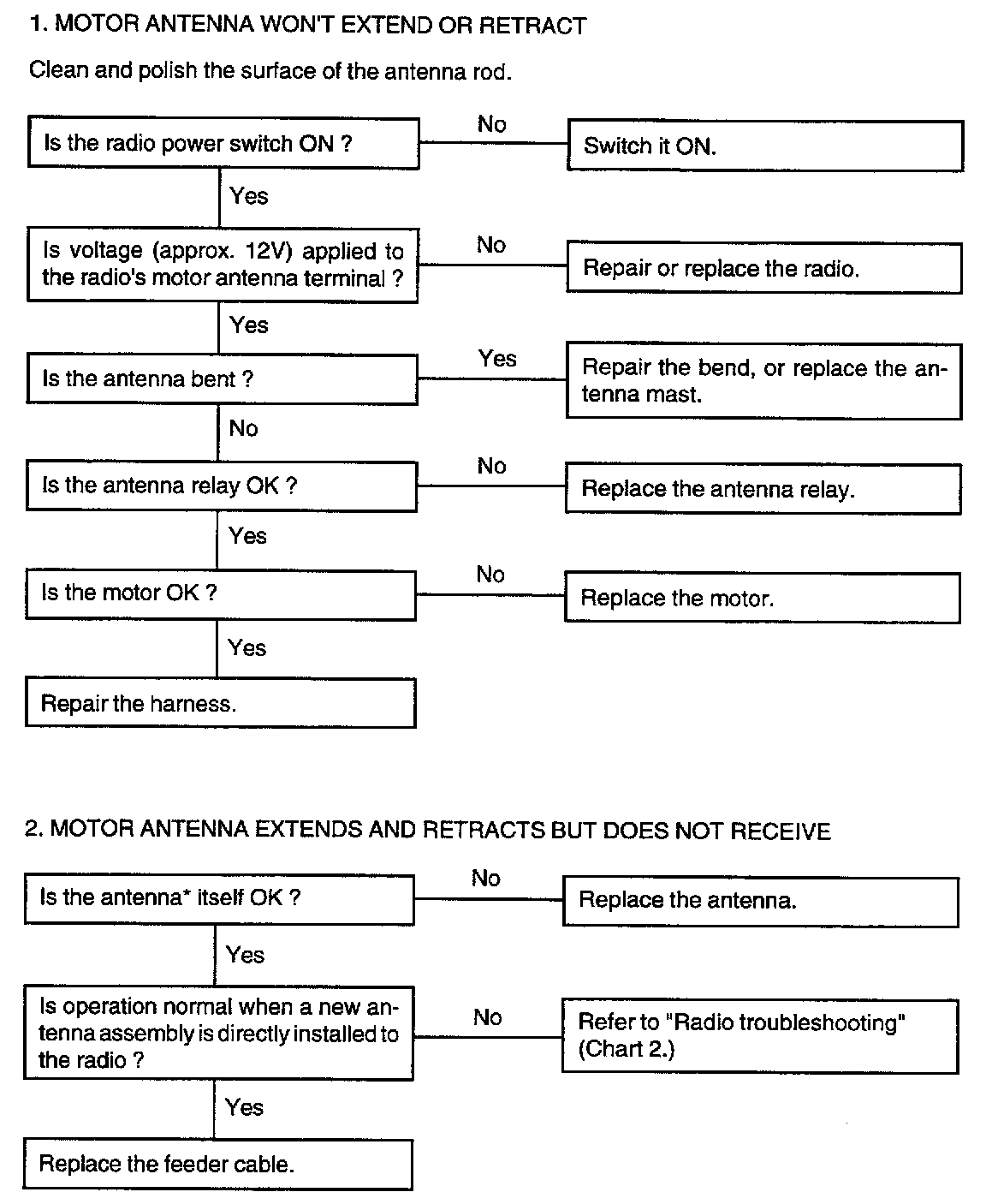

Chart 10:

AUDIO
There are six areas where a problem can occur: the wiring harness, the radio, the cassette tape deck, the CD player the speakers and the antenna.
Troubleshooting enables you to isolate the problem to a particular area.
