Sunroof / Moonroof: Adjustments

SUNROOF

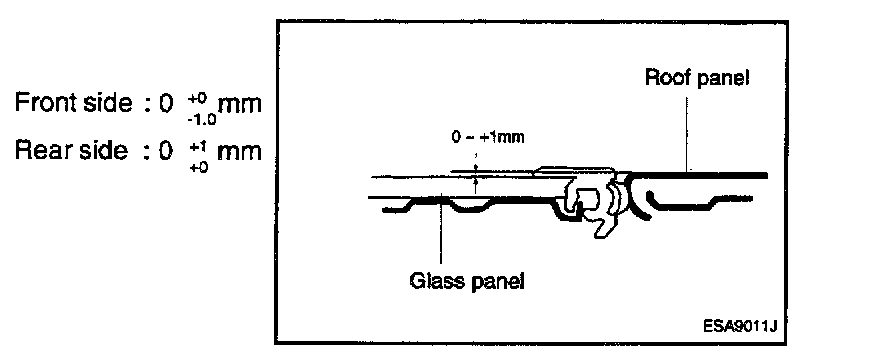

1. Adjust the difference between the height of the glass panel and the roof panel.

If the difference is not as specific, adjust the following procedure.

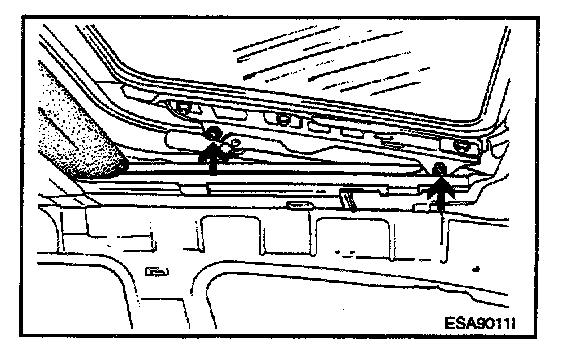

1. Loosen the front screw and rear screw and adjust the height between the glass panel and root panel.

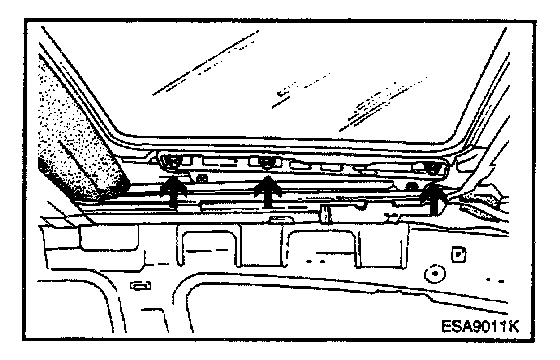

2. Loosen the glass panel mounting nuts and adjust the gap between the glass panel and roof panel.
