Flow of Diagnosis

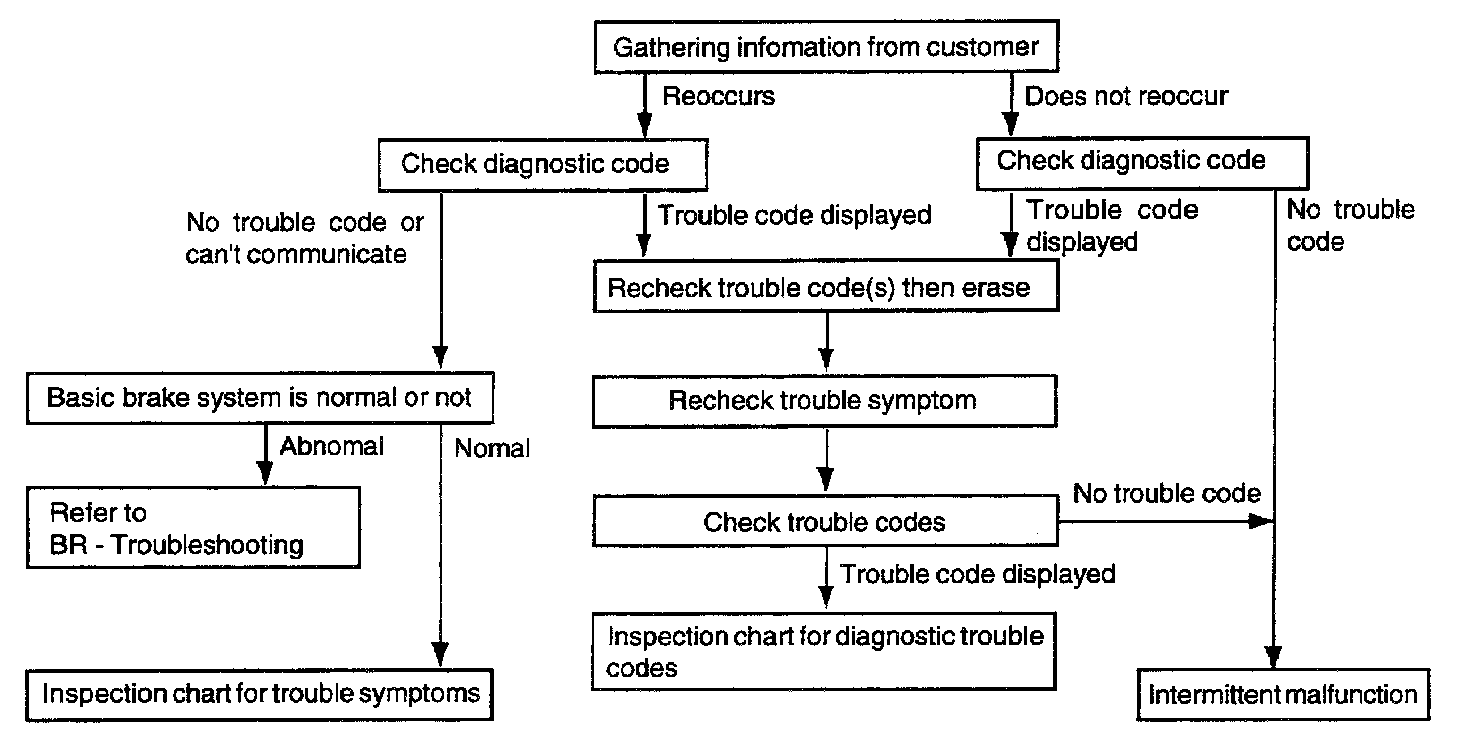

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING





- Using the customer problem analysis heck sheet for reference, ask the customer in as much detail as possible about the problem.

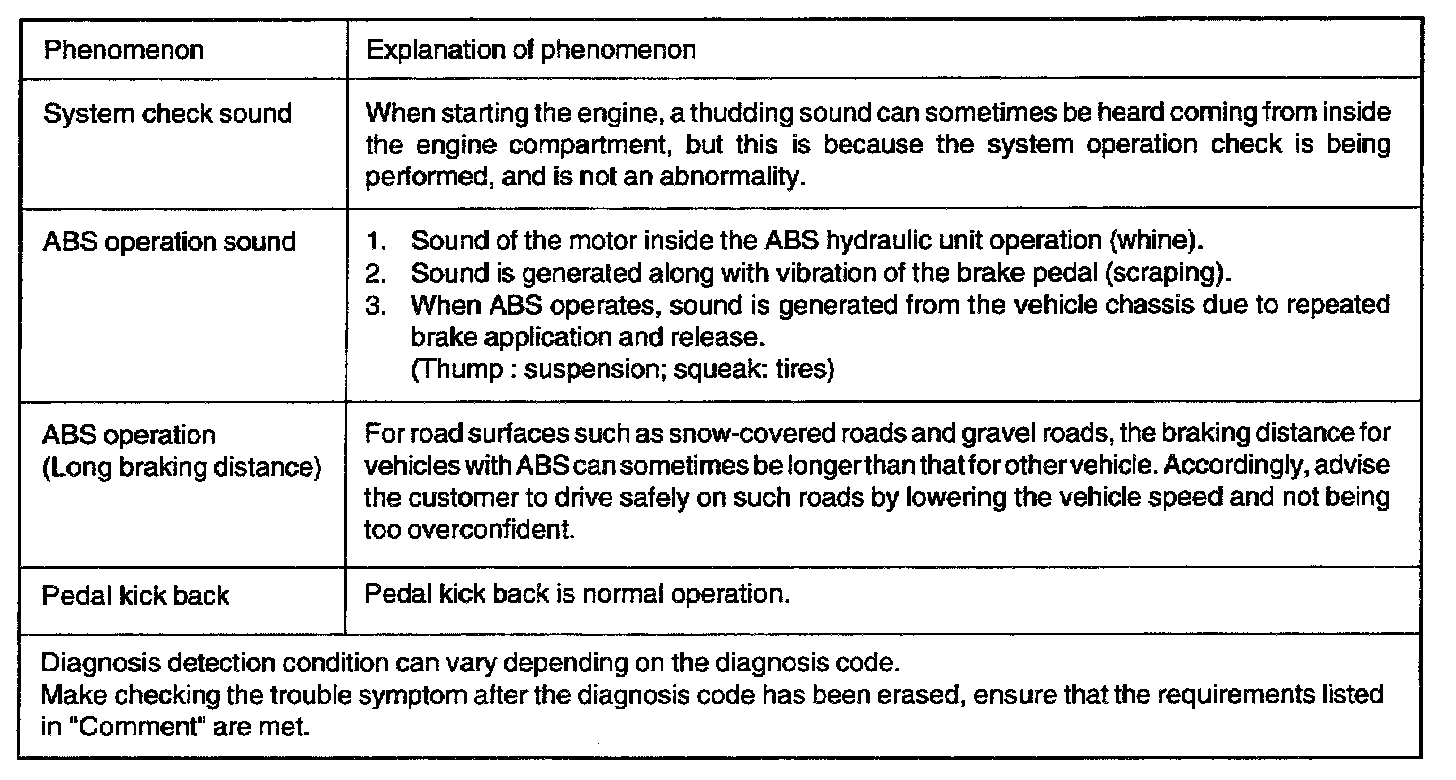

NOTES WITH REGARD TO DIAGNOSIS





The phenomena listed in the table are not abnormal.

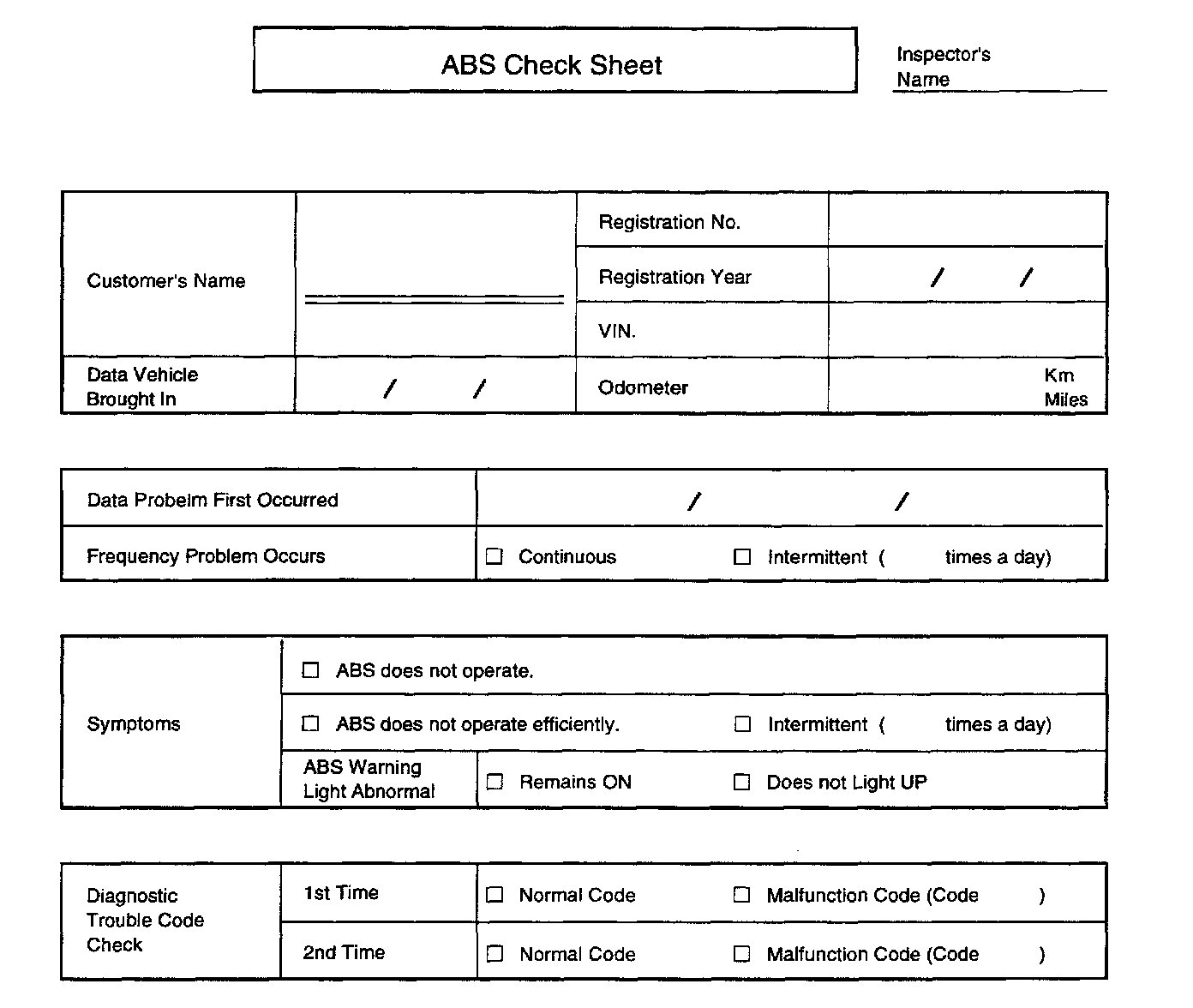

ABS CHECK SHEET
