C Connectors(Control Harness)
C Connectors(Control Harness)

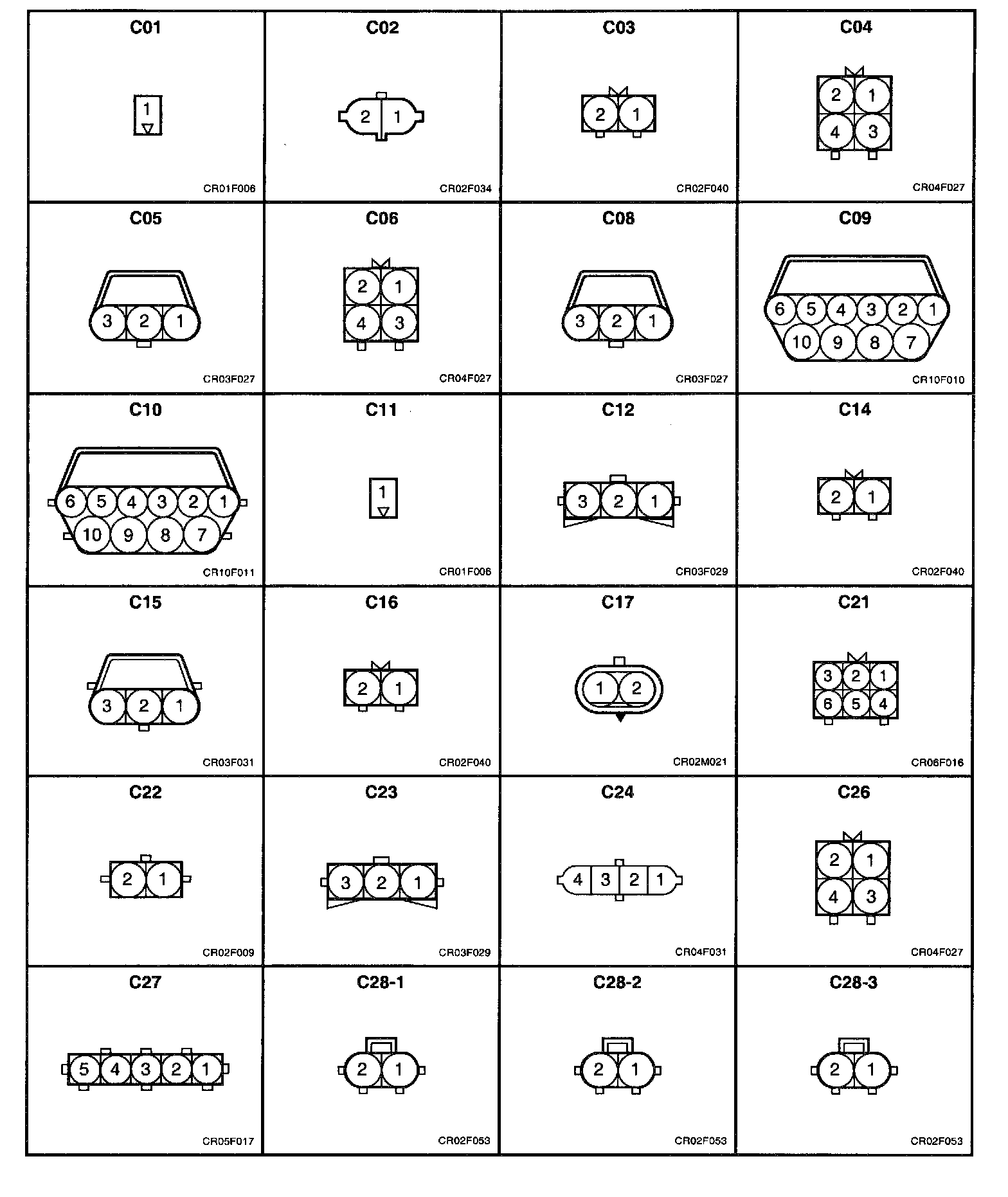

C01 - C28-1:

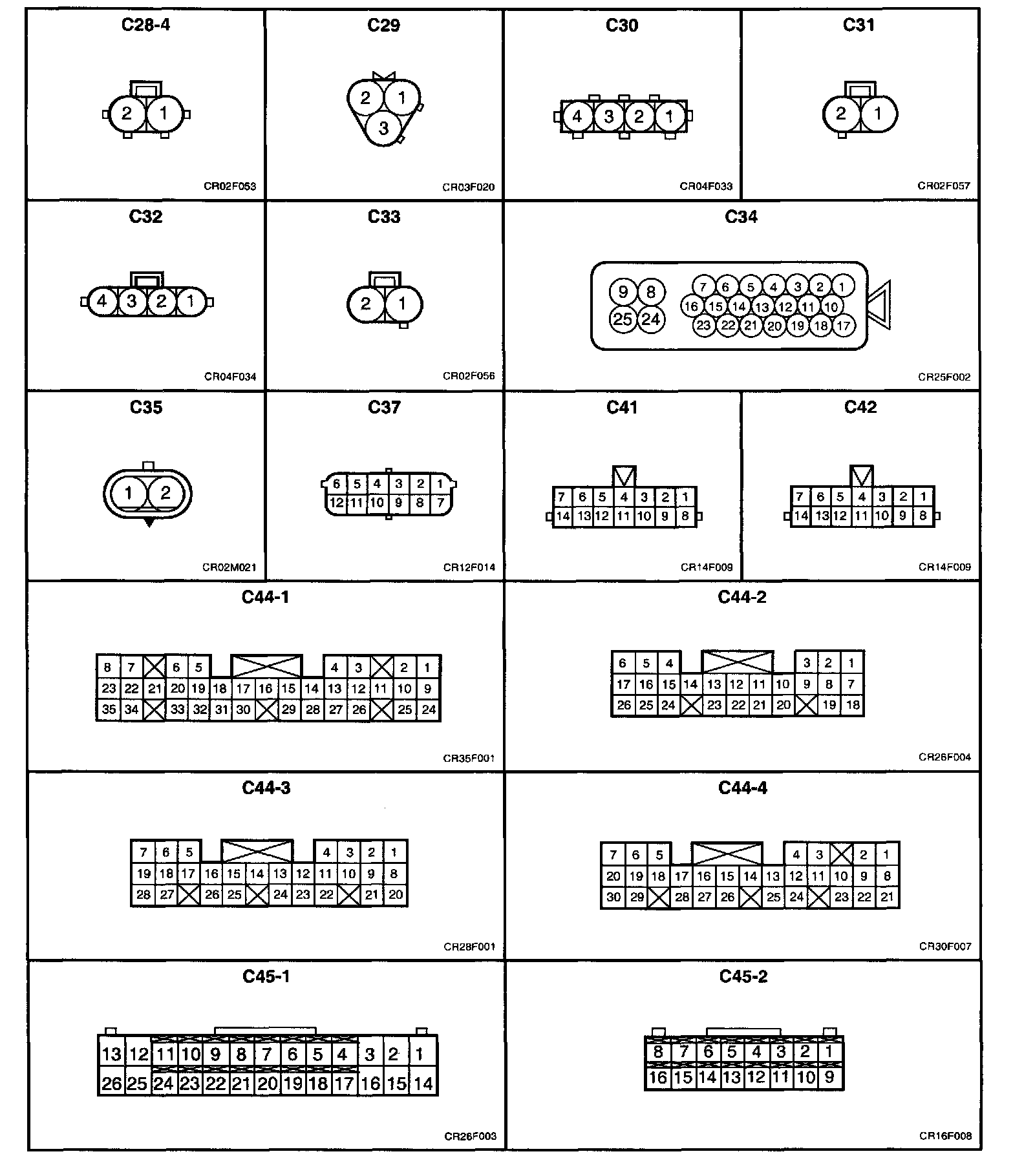

C28-4 - C45-2:
C45-3 - C73:
C74 - C93-3:

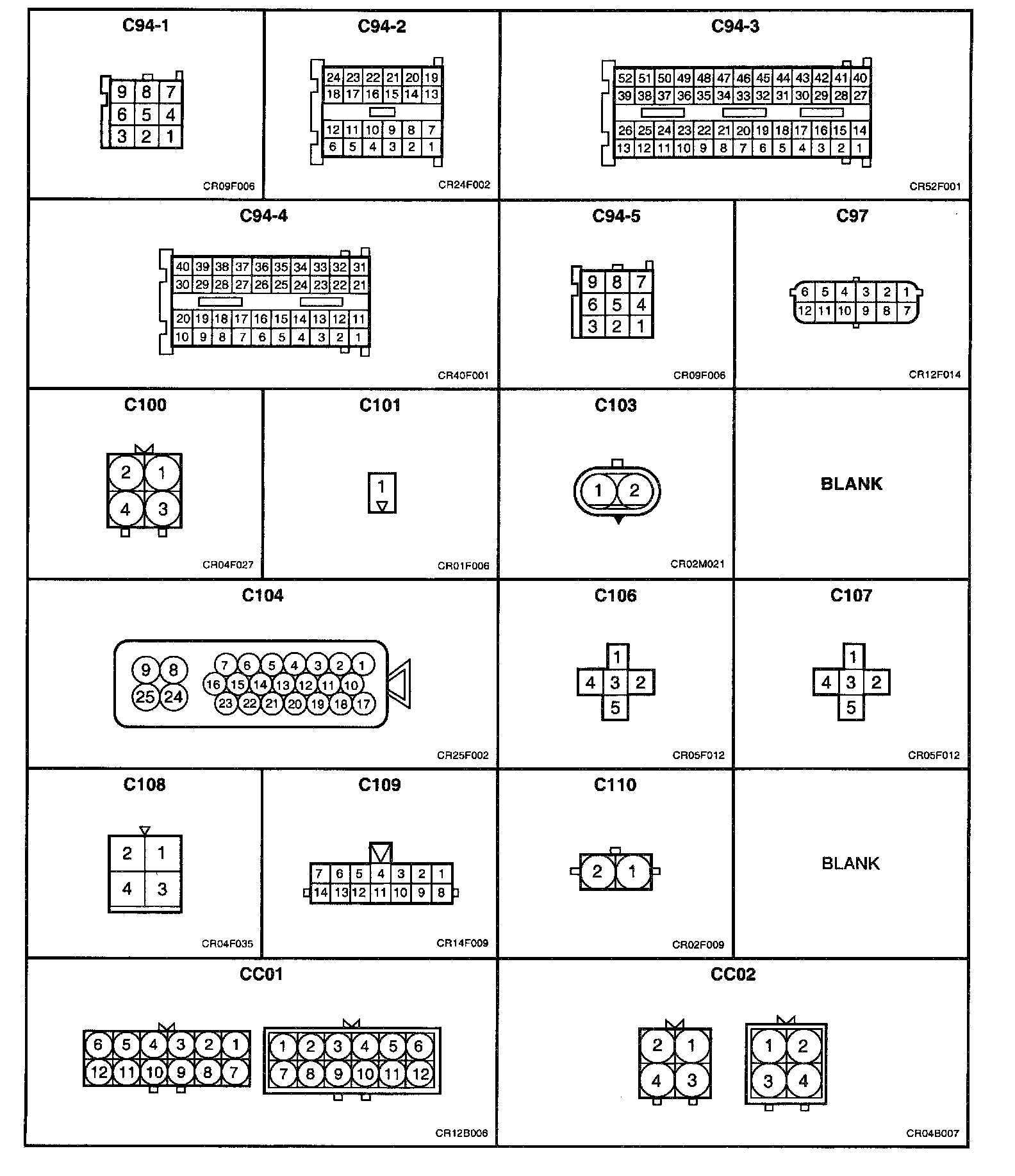

C94-1 - C110 And CC01 - CC02:

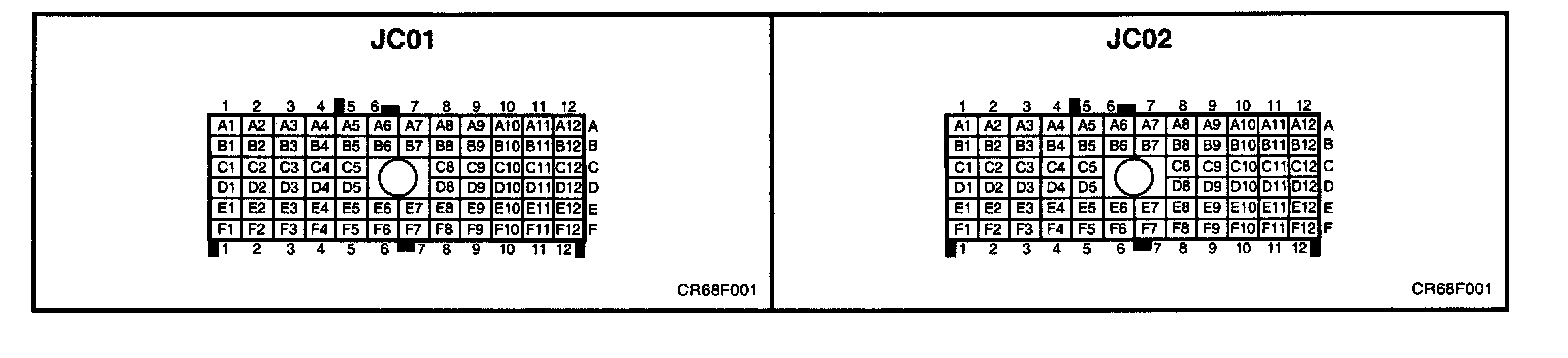

JC01 - JC02:
