I Connectors (Instrument Harness)
I Connectors (Instrument Harness)
I01 - I16, I17-1 - I17-2, I19 - I20 And I21-1:
I21-2 - I33:

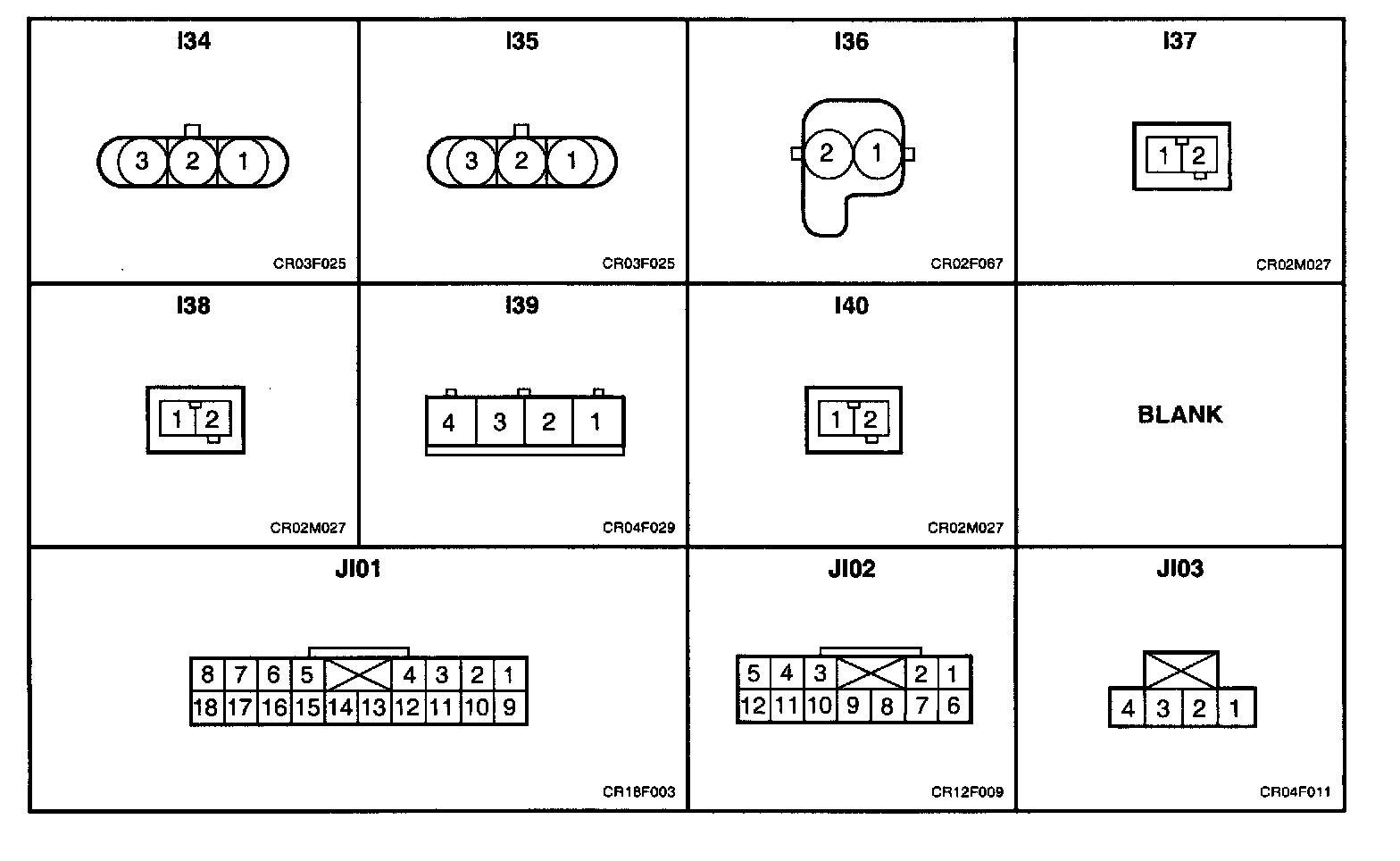

I34 - I40 And JI01 - JI03:
