M Connectors(Main Harness)

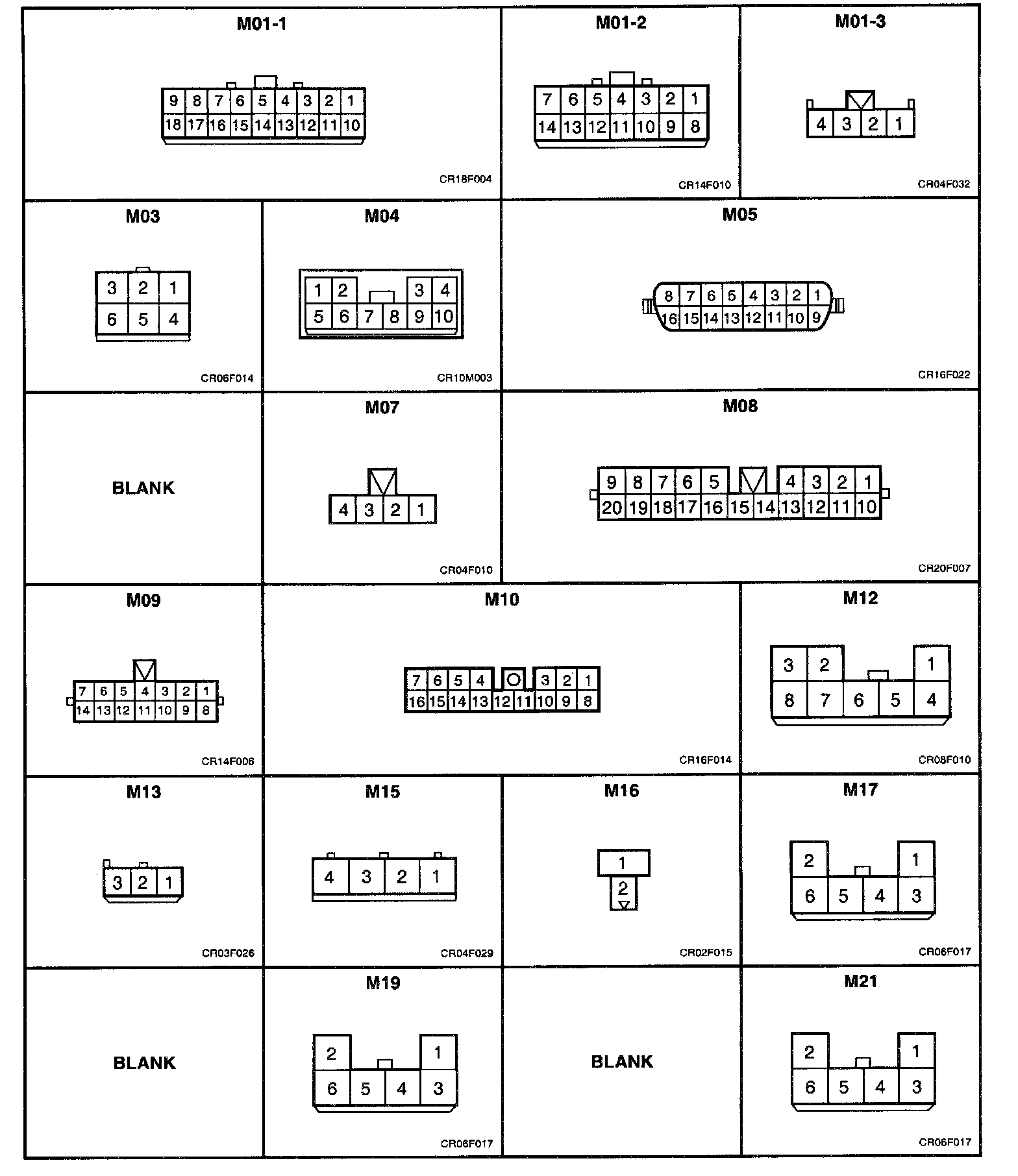

M01-1 - M01-3 And M03 - M21:

M24 - M31, M33-1 - M33-3 And M34 - M52:

M53 - M90 And M91-1:

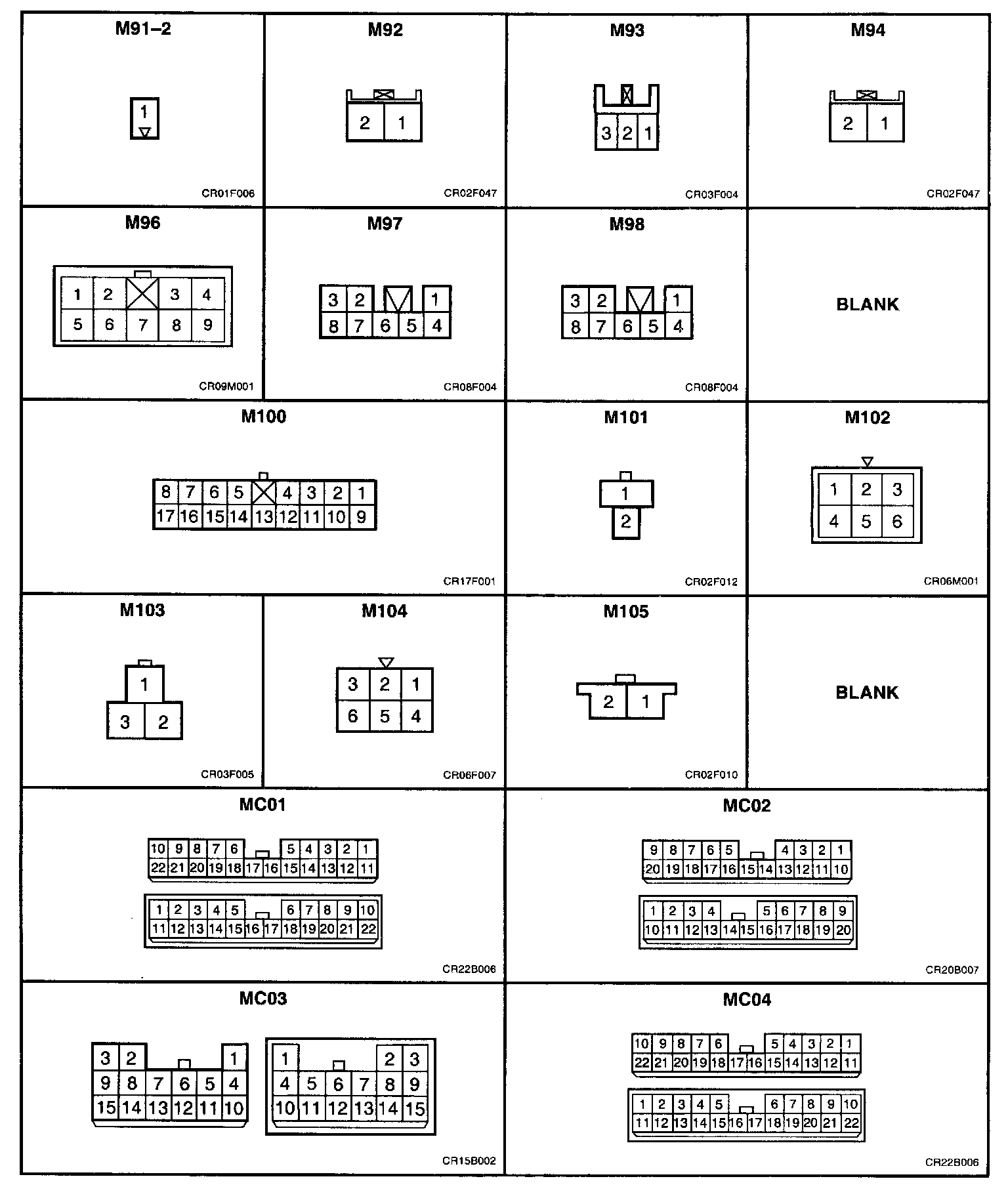

M91-2, M92 - M105 And MC01 - MC04:

MC05 - MC06, MD01 - MD04, MI01 - MI03 And MM01:

MM02 - MM06, MR01 - MR02 And JM01 - JM08:

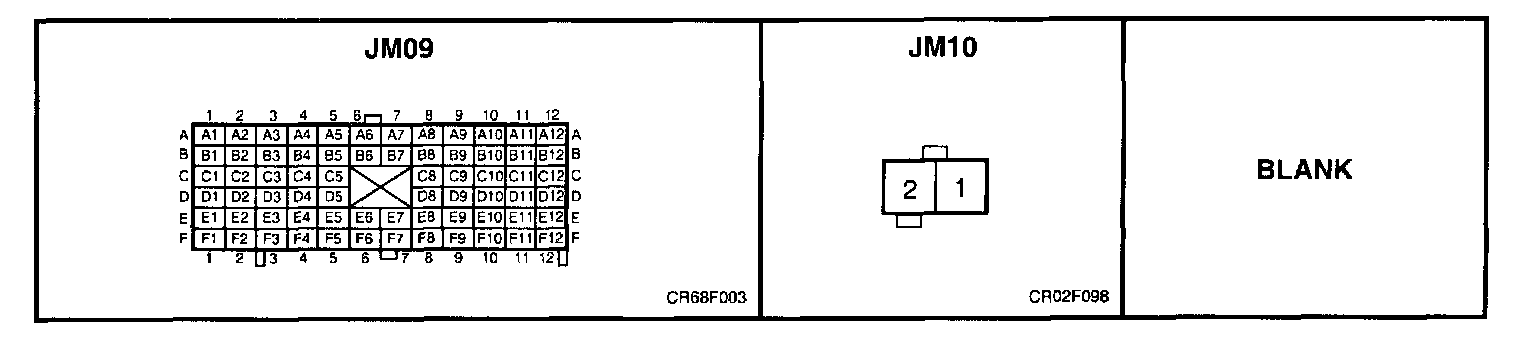

JM09 To JM10:
