I Connector (Instrument Harness)

I01 Blower Motor, I03 Intake Actuator, I05 Blower Resistor (Manual A/C):

I02 High Blower Relay (Auto A/C), I04 Power Transistor (Auto A/C):

I06 Joint Connector:

I08 Evaporator Temperature Sensor (Auto A/C), I10 Water Temperature Sensor (Auto A/C), I11 Temperature Actuator (Auto A/C):

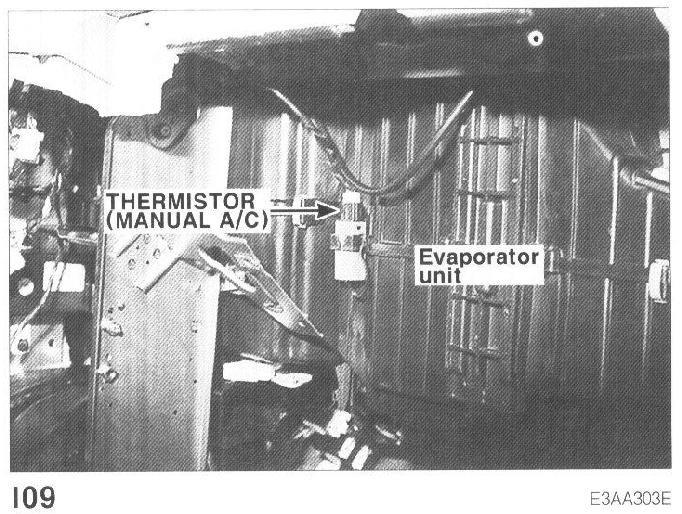

I09 Thermistor (Manual A/C):

I12 Photo Sensor:

I13 Hazard Switch, I14 Digital Clock (Manual A/C), I15 A/C Switch (Manual A/C), I16 Blower Switch (Manual A/C):

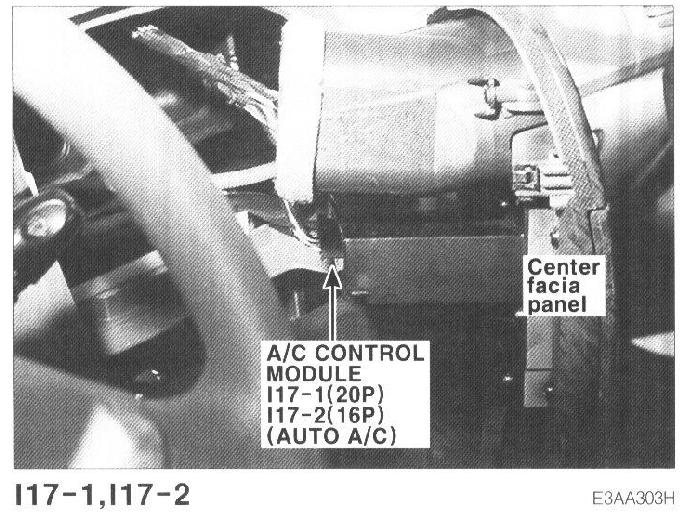

I17-1, I17-2 A/C Control Module:

I19 Blend Door Actuator:

I20, I22 Joint Connectors, I21-1, I21-2, I21-3 Instrument Cluster:

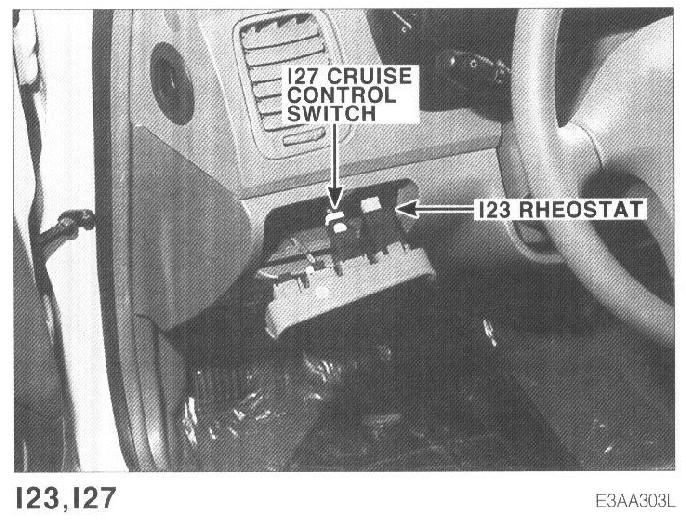

I23 Rheostat, I27 Cruise Control Switch:

I24-1, I24-2 Glove Box Lamp Switches, I28 Glove Box Lamp:

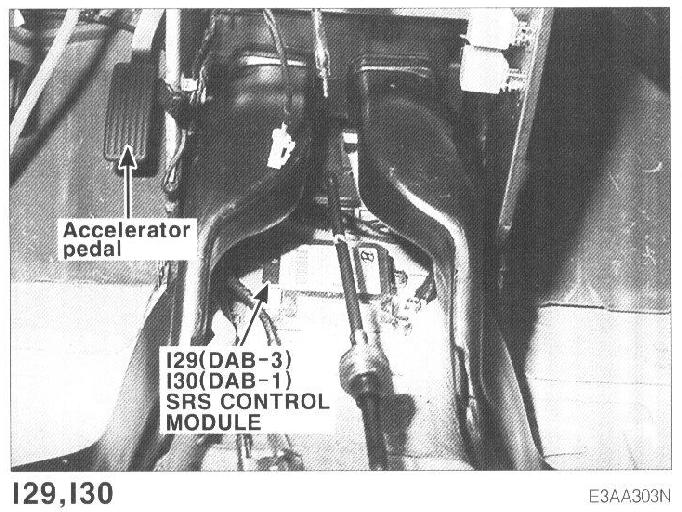

I29, I30 SRS Control Module:

I32 Contact Coil:

I33 Passenger Seat Belt Pretensioner, I34 Passenger Satellite Sensor, I38 Passenger Side Air Bag, I39 Passenger Presence Detection Sensor:

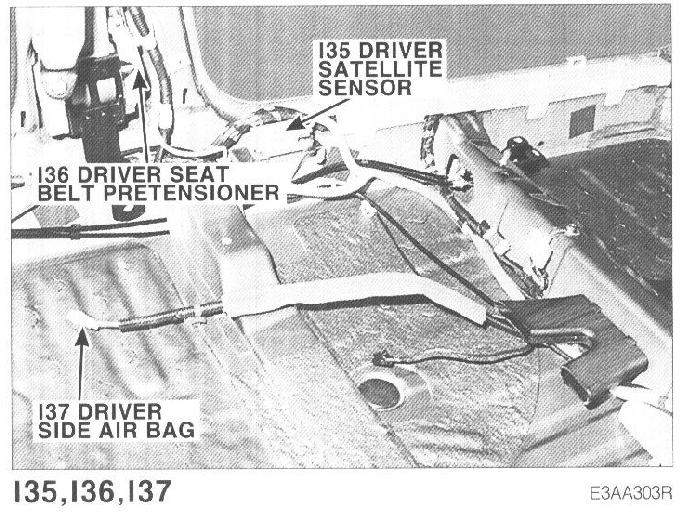

I35 Driver Satellite Sensor, I36 Driver Seat Belt Pretensioner, I37 Driver Side Air Bag:

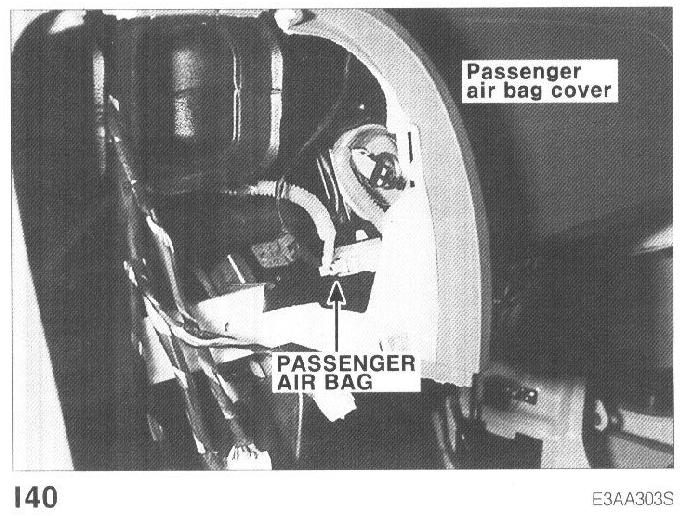

I40 Passenger Air Bag:

JI01, JI02, JI03 Passenger Compartment Junction Block (Front Side):
